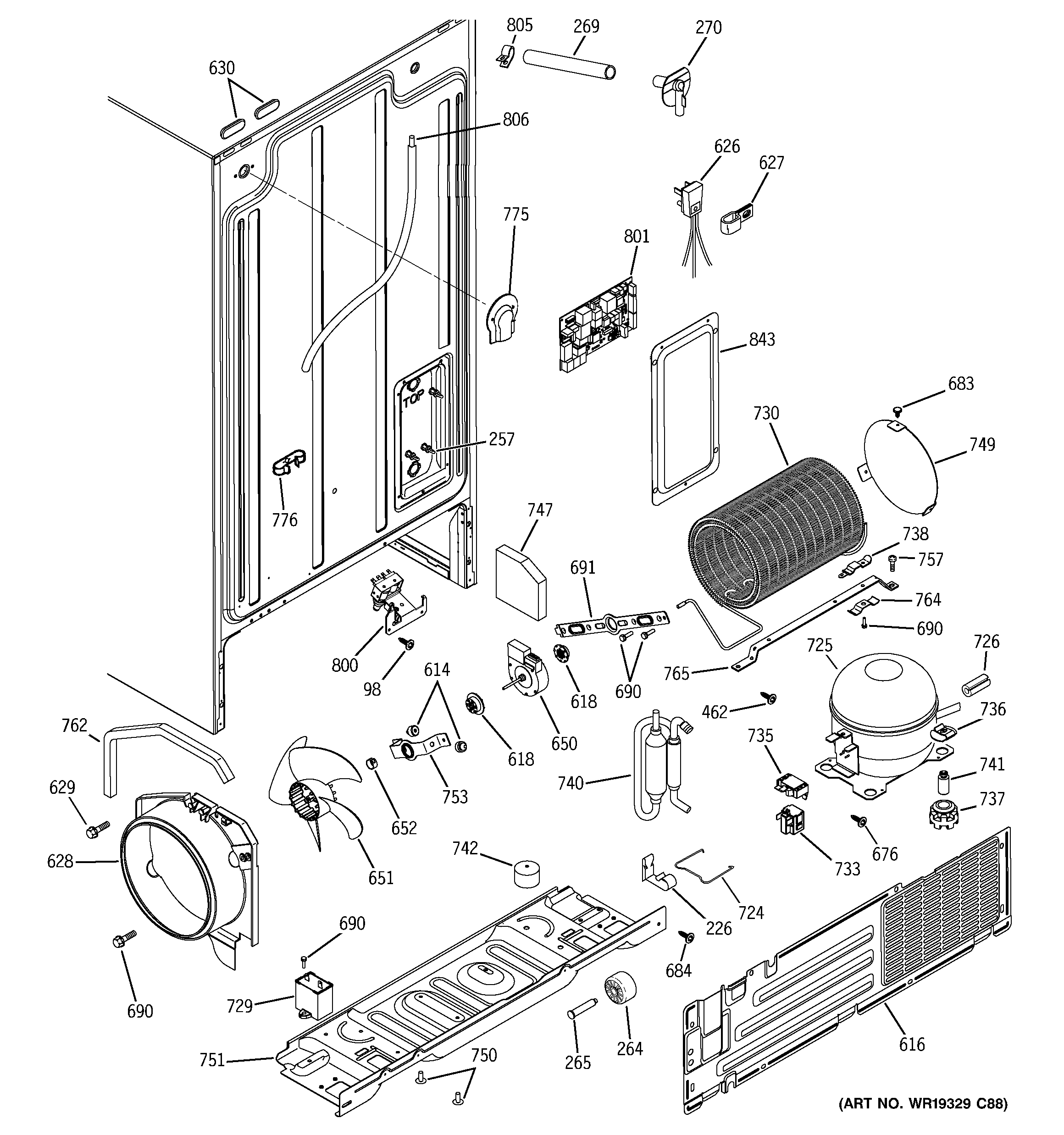

GSH25JFTABB SEALED SYSTEM & MOTHER BOARD

GSH25JFTABB SEALED SYSTEM & MOTHER BOARD

Written by

in

GSH25JFTABB SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
98WR1K1 GE Screw 8-36 T
226WR02X10558 GE Refrigerator Drain Tube Clip
257FASTENER BOARD
264WR02X10695 GE Refrigerator Wheel
265AXLE WHEEL
270WR17X11168 GROMMET AND TUBE ASM
462GEN WZ06X0136
614BUMPER
616GEN WR82X10100
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
628WR17X35527 GE Refrigerator Condenser Fan Shroud
629WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
630GEN WR02X8525
630WR2X4097 GE Button Plug
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
683WR02X10562 GE Push Fastener
684WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X11999 GE Refrigerator Clip Retainer
725WR87X20798 GE Refrigerator High Side Assembly
726GEN WR82X10086
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X26749 GE Refrigerator Start Relay
735WR08X10025 GE Refrigerator Overload
735WR07X10084 GE Start Relay
735WR09X10107 GE Refrigerator PTC Overload 5SP
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
747GEN WR82X10073
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X11427
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762FOAM STRIP SE ADH
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
775WR17X13124 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
806WR17X11625 GE Refrigerator Plastic Tube
843GEN WR17X12146
