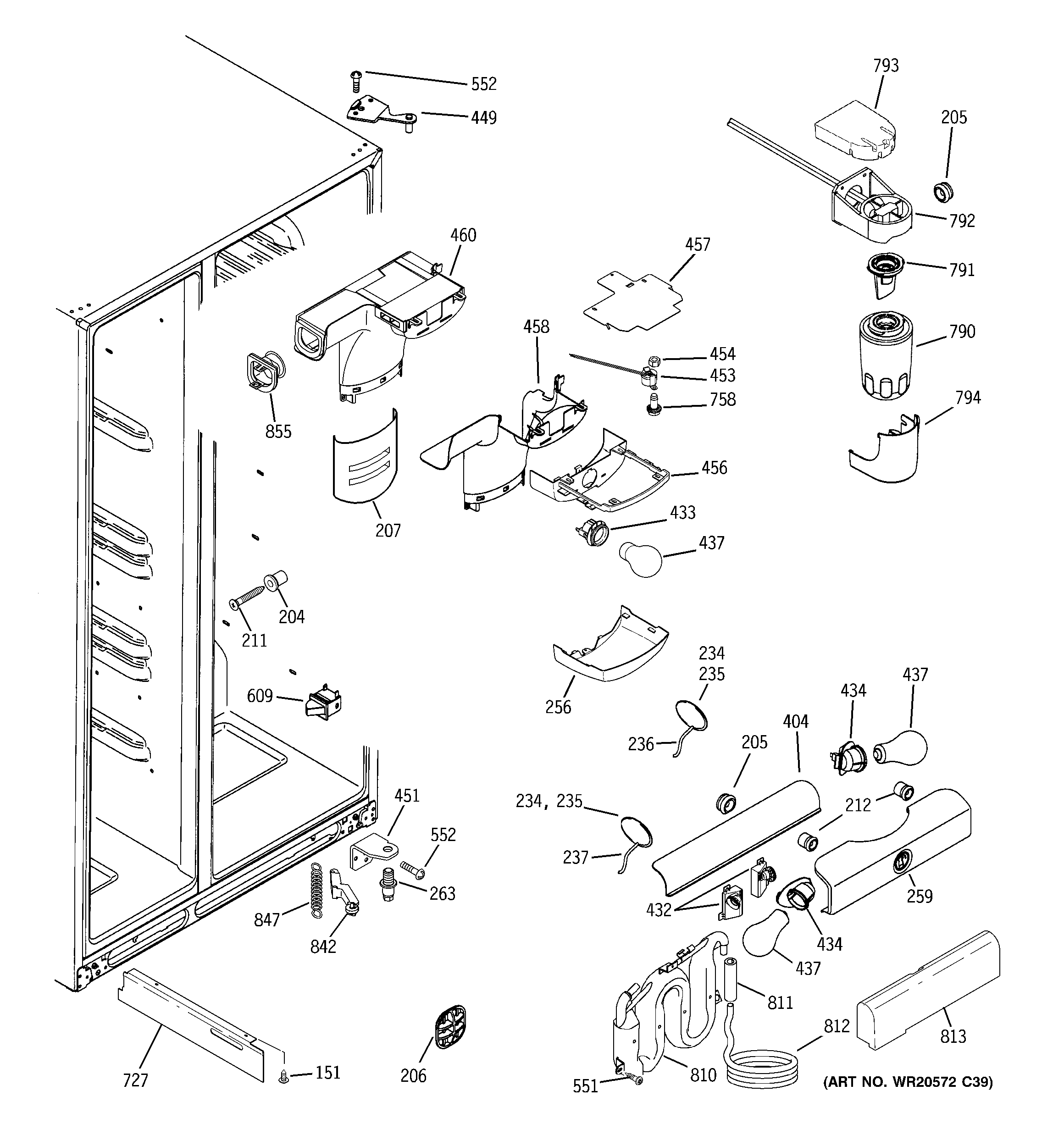

GSHL6PHXIELS FRESH FOOD SECTION

GSHL6PHXIELS FRESH FOOD SECTION

Written by

in

GSHL6PHXIELS FRESH FOOD SECTION

Products

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
204WR02X12188 GE Refrigerator Support Shelf
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
259GEN WR17X10911
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
432WR02X12287 GE Refrigerator Reflector Assembly Middle
432GEN WR02X12286
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
437RANGE ONLY 40W 120V APPL BULB
449WR13X10456 GE Refrigerator Top Hinge & Pin Assembly
451GEN WR13X10655
453WR23X10493 GE Refrigerator Light Harness
454WR01X10212 GE Refrigerator 8-32 Nut
456WR49X28627 GE Refrigerator Fresh Food Light Shield & H
457WR17X12201 GE Light Reflector
458WR17X12881 GE Refrigerator Inlet Cover
460COVER ASM FF INLET
551WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12295 GE Refrigerator Separator Air HISIDE
758WD2X323D GE Dishwasher Screw Package
790MSWF GE Refrigerator Fast Fill Water Filter
791WR17X22064 GE Refrigerator MSWF Bypass
792MSWF MANIFOLD
793WR17X12205 GE Refrigerator Manifold Insulation
794WR17X12903 GE Water Filter Cover
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
813WR17X11620 GE Refrigerator Insulation Tank Foam
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
