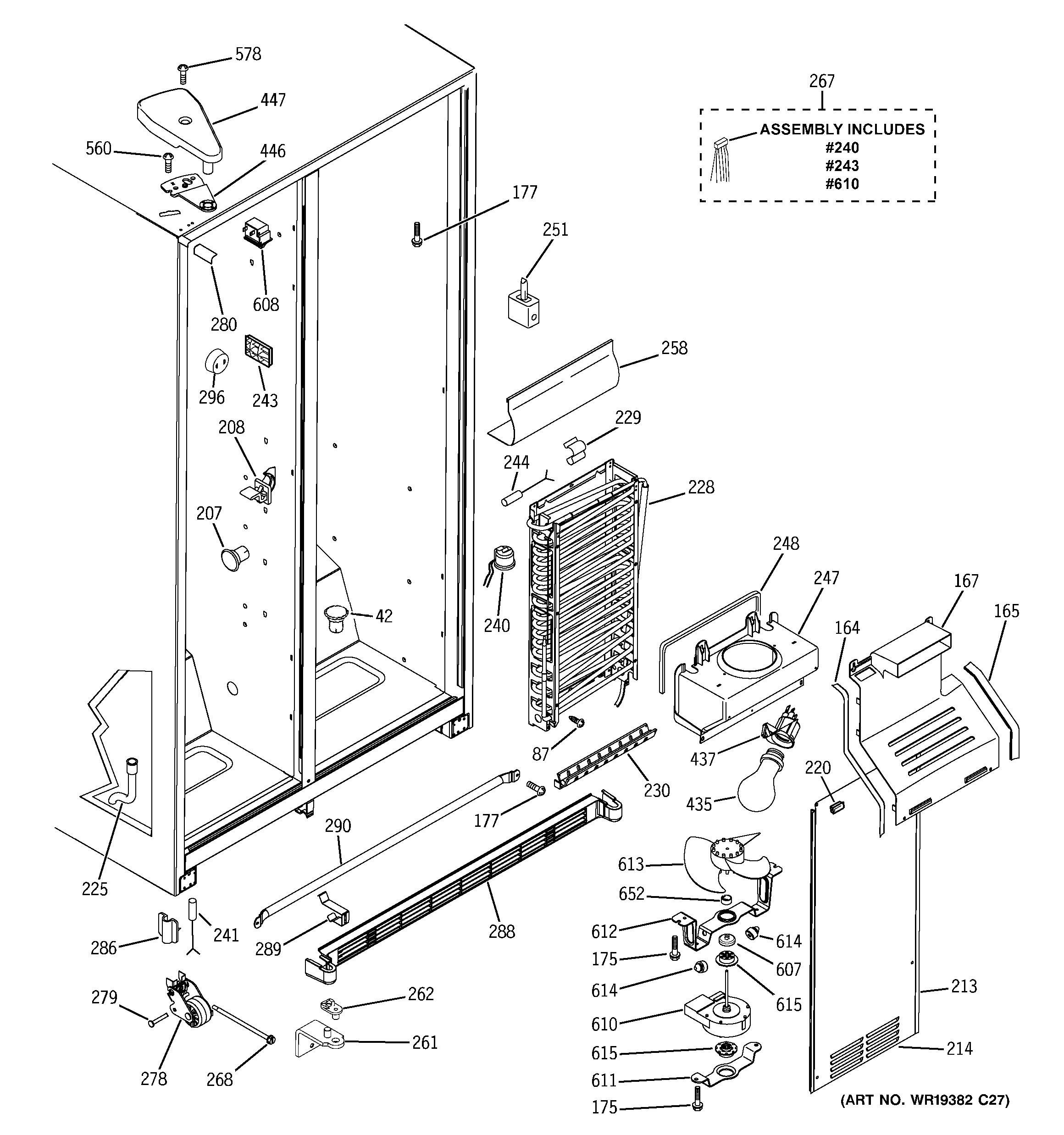

GSHS5KGXECSS FREEZER SECTION

GSHS5KGXECSS FREEZER SECTION

Written by

in

GSHS5KGXECSS FREEZER SECTION

Products

PositionProduct
164WR14X10164 GE Refrigerator Case Gasket
167WR17X12358 GE Refrigerator Plenum Fan Evaporator
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
207WR17X10909 GE Refrigerator Cover Inlet Discharge
213WR17X11668 GE Refrigerator Cover Evaporator Front
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
225TUBE DRAIN
228SCR 8-18 AB PHR 1/2 S
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
240WR50X10065 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247WR17X12642 GE Refrigerator Orifice Fan Assembly
258WR17X11446 GE Refrigerator Light Shield
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X12346 GE Corner Cap
288WR74X10240 GE Refrigerator Base Grille
437RANGE ONLY 40W 120V APPL BULB
447GEN WR02X12781
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
