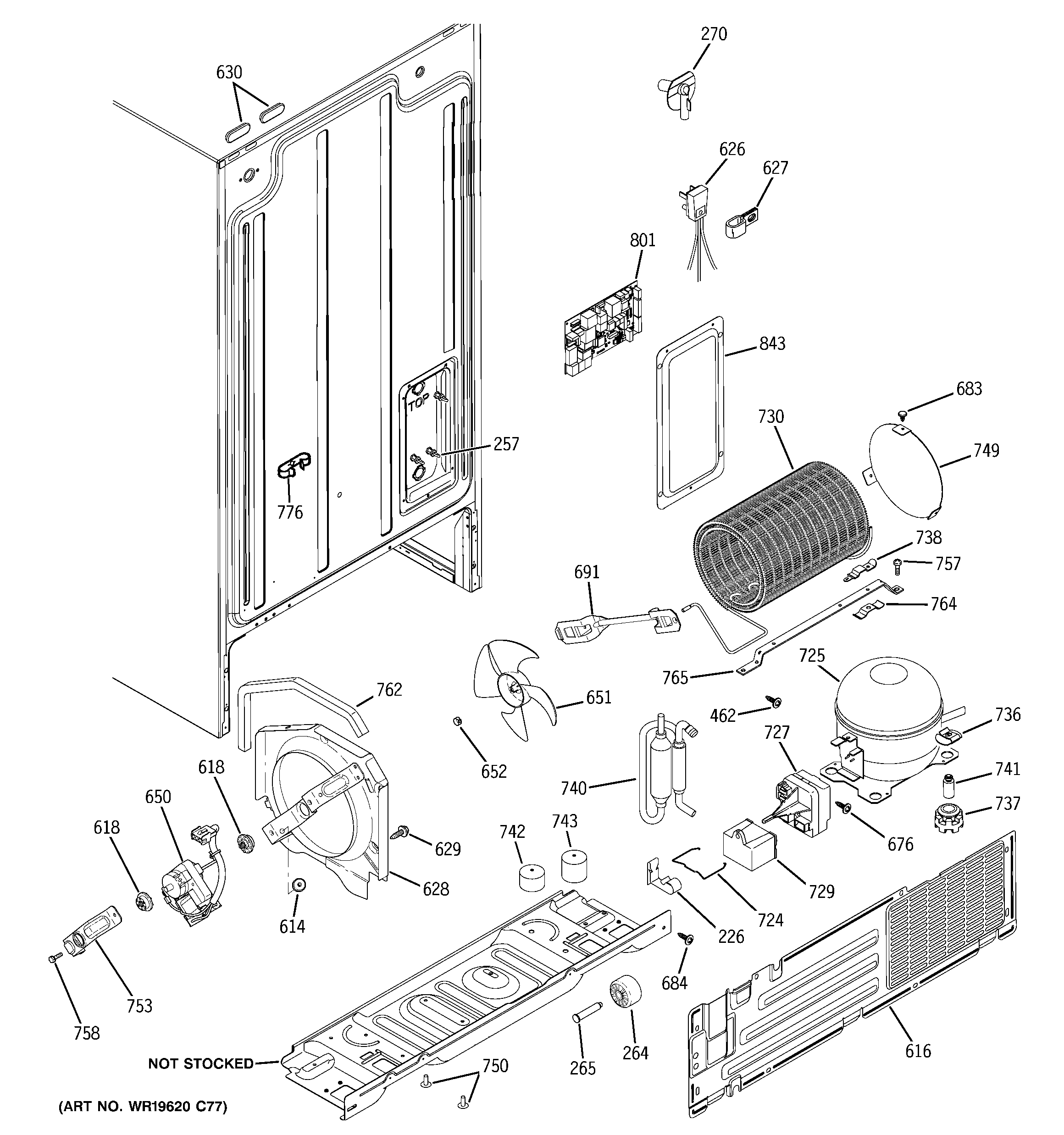

GSHS5KGXECSS SEALED SYSTEM & MOTHER BOARD

GSHS5KGXECSS SEALED SYSTEM & MOTHER BOARD

Written by

in

GSHS5KGXECSS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
614BUMPER
616WR82X10103 GE Refrigerator Access Cover
618WR02X11331 GE Refrigerator Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
628WR17X12668 GE Refrigerator Condenser Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X12561 GE Clip Retainer
725WR87X20798 GE Refrigerator High Side Assembly
727WR17X12295 GE Refrigerator Separator Air HISIDE
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
758WD2X323D GE Dishwasher Screw Package
762WR14X10199 GE Foam Strip
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
843LEVER ASM FZ
