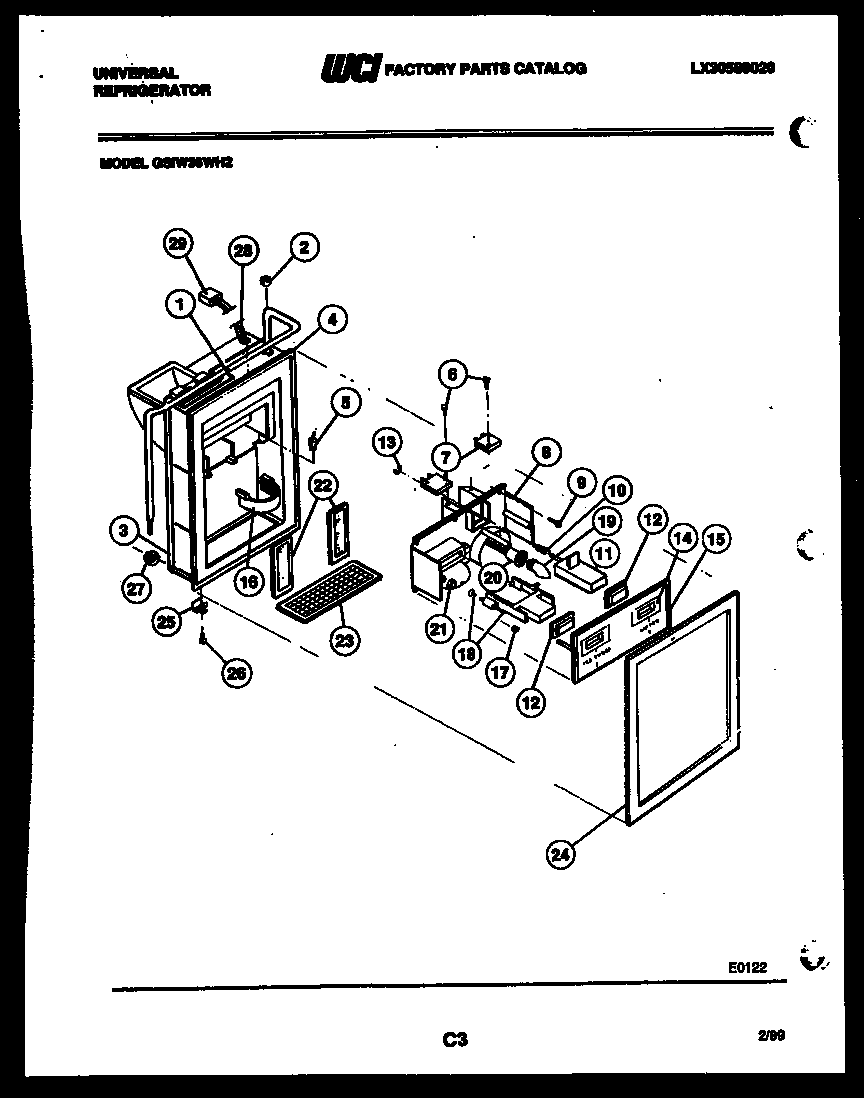

GSIW36AH2 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
*11909	DIODE KIT (NON-ILLUSTRATED)
1	TUBE-WATER INLET AND PILOT ASSY
2	WCI G175246
3	HEATER-DOOR HOUSING
4	HOUSING-DOOR PANEL
5	WCI G179999
6	WCI G177686
7	WCI G185542
8	PLATE-SWITCH MTG
9	WCI G185567
10	SPRING-WTR ACTUATOR
11	WCI G185063-01
12A	WCI G180631
12	WCI G187106-02
13	WCI G174411
14	LABEL-FRONT PANEL
15	WCI G182643-01
16	SKIRT
17	WCI G174414
18	WCI G190359
19	WCI G183874
20	WCI G177729
21	WCI G177724
22	WCI G182929
23	WCI G182551-01
24	WCI G177721-06
25	CLIP-HSG FRAME (2)
26	SCREW-CLIP MTG (2)
27	PUSH NUT (6) (NON-ILLUSTRATED)
28	WCI 3007412
29	WCI G177742
