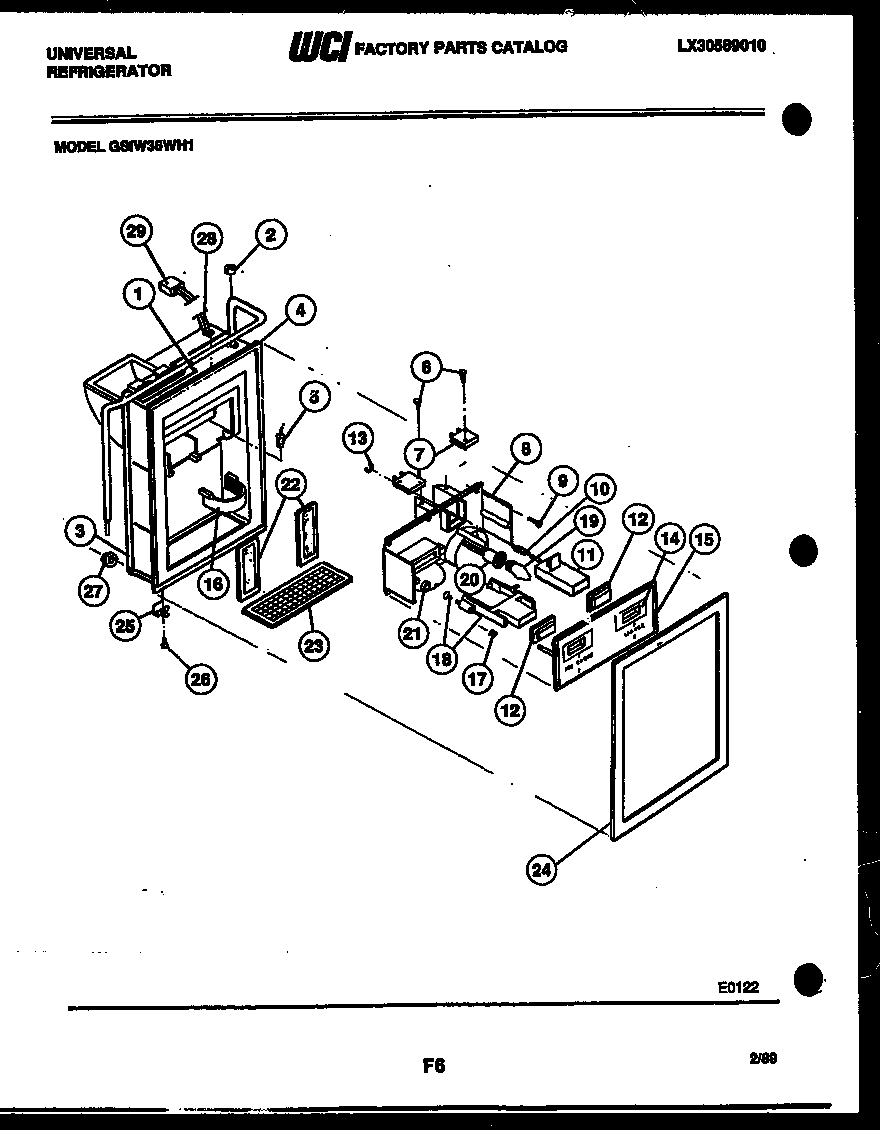

GSIW36BH1 07 – ICE DOOR, DISPENSER AND WATER TANKS

GSIW36BH1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Written by

in

GSIW36BH1 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

PositionProduct
*43421DIODE KIT (NON-ILLUSTRATED)
1TUBE-WATER INLET AND PILOT ASSY
2WCI G175246
3HEATER-DOOR HOUSING
4HOUSING-DOOR PANEL
5WCI G179999
6WCI G177686
7WCI G185542
8PLATE-SWITCH MTG
9WCI G185567
10SPRING-WTR ACTUATOR
11WCI G185063-01
12AWCI G180631
12WCI G187106-02
13WCI G174411
14LABEL-FRONT PANEL
15WCI G182643-01
16SKIRT
17WCI G174414
18WCI G190359
19WCI G183874
20WCI G177729
21WCI G177724
22WCI G182929
23WCI G182551-01
24WCI G177721-06
25CLIP-HSG FRAME (2)
26SCREW-CLIP MTG (2)
27PUSH NUT (6) (NON-ILLUSTRATED)
28WCI 3007412
29WCI G177742
