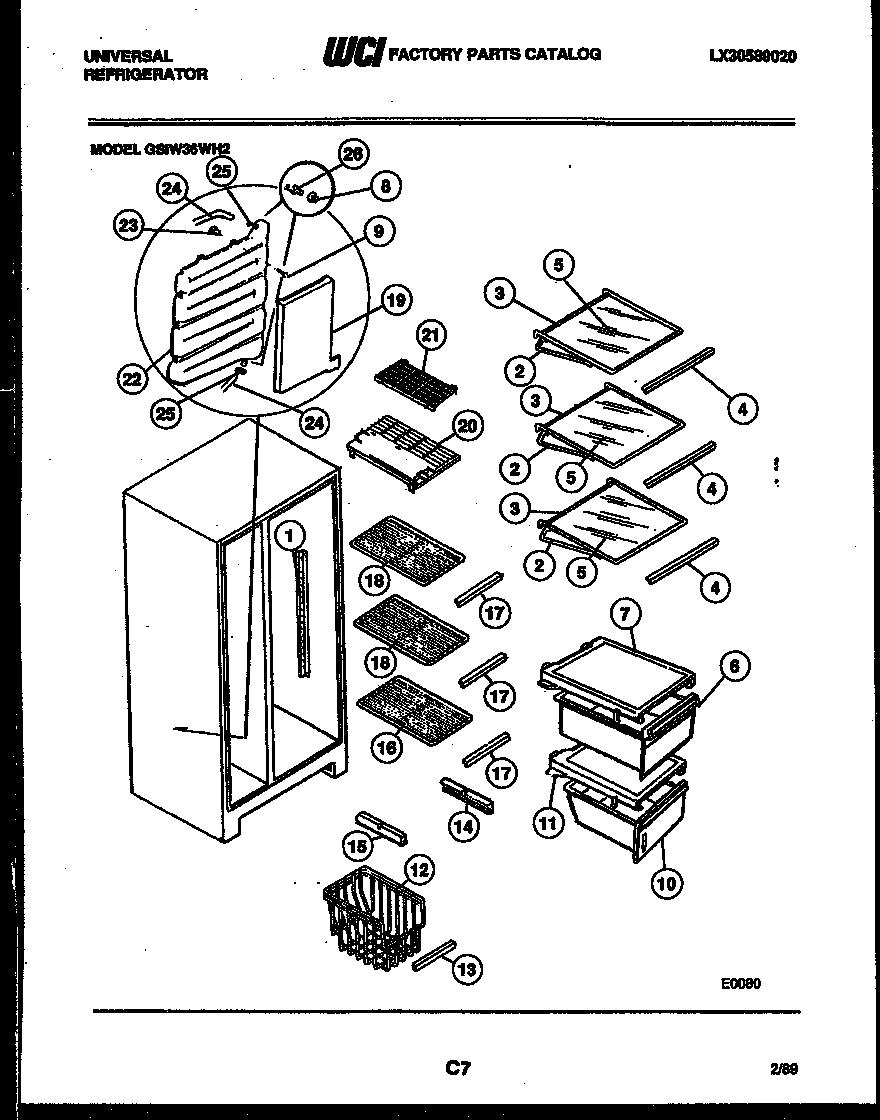

GSIW36WHE2 05 – SHELVES AND SUPPORTS

GSIW36WHE2 05 – SHELVES AND SUPPORTS

Written by

in

GSIW36WHE2 05 – SHELVES AND SUPPORTS

Products

PositionProduct
15304455852 Frigidaire Refrigerator Screw
1CHANNEL-RS & LS
2WCI G171608-08
3WCI G172436-16
4TRIM-SHELF-FRONT (4)
5WCI G171654-15
6WCI G171260-15
7WCI G169711-04
8WCI G186057
9131420300 Frigidaire Screw
10PAN-STORAGE-LOWER
11WCI G169724-04
12BASKET-FREEZER
12SCREW-TRIM MTG (2) (NON-ILLUSTRATED)
13WCI G168625-08
14HANGER-BASKET RS
15HANGER-BASKET LS
16SHELF, BOTTOM FREEZER
17TRIM (3)
18SHELF
19WCI G163925-02
195304509705 Frigidaire Refrigerator Grommet
20WCI G174571-01
20LABEL-SHELF-LOWER (NON-ILLUSTRATED)
21LABEL-SHELF-UPPER (NON-ILLUSTRATED)
21WCI G174556-01
22TANK-WATER
23WCI G163938
24TUBE-CUT TO SIZE (2)
25WCI G166705
26WCI G186058
