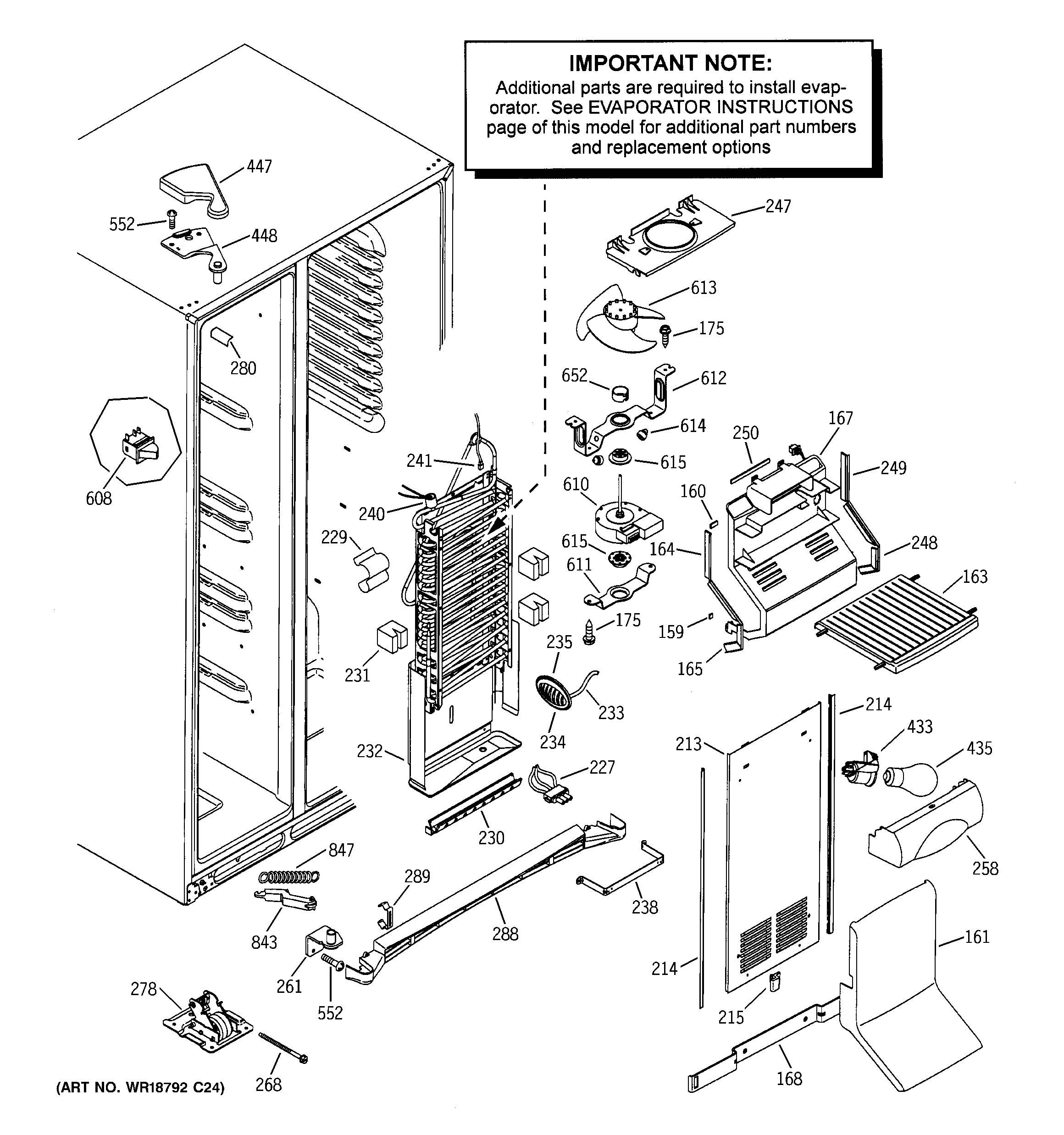

GSK25LCMACCC FREEZER SECTION

GSK25LCMACCC FREEZER SECTION

Written by

in

GSK25LCMACCC FREEZER SECTION

Products

PositionProduct
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
161WR17X10817 GE Refrigerator Lower Tower Air
163WR71X10252 GE Refrigerator Upper Shelf
164GEN WR14X10074
165GEN WR14X10065
167GEN WR17X11124
168WR02X10674 GE Refrigerator Lower Tower Bracket
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
213WR17X11669 GE Refrigerator Cover Evaporator Front
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
215WR01X10211 GE Refrigerator Upper Tower Bracket
227GEN WR23X10142
229GEN WR02X10552
230WR51X10042 GE Refrigerator Heater & Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
238GEN WR02X10667
240WR50X10068 GE Refrigerator Defrost Thermostat
247WR17X10812 GE Refrigerator Orifice Fan Assembly
248WR14X10066 GE Refrigerator Gasket Plenum
249GEN WR14X10073
250WR14X10069 GE Adhesive Foam Strip
258GEN WR17X10840
261GEN WR13X10162
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10785 GE Refrigerator Cap Corner O
288GEN WR74X10070
289GEN WR02X7646
433WR2X9014 GE Refrigerator Socket & Terminal C02
435WR02X12207 GE Refrigerator Net Bulb Light
447WR02X10787 GE Refrigerator Hinge Cover Bisque
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10631 GE Screw
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
