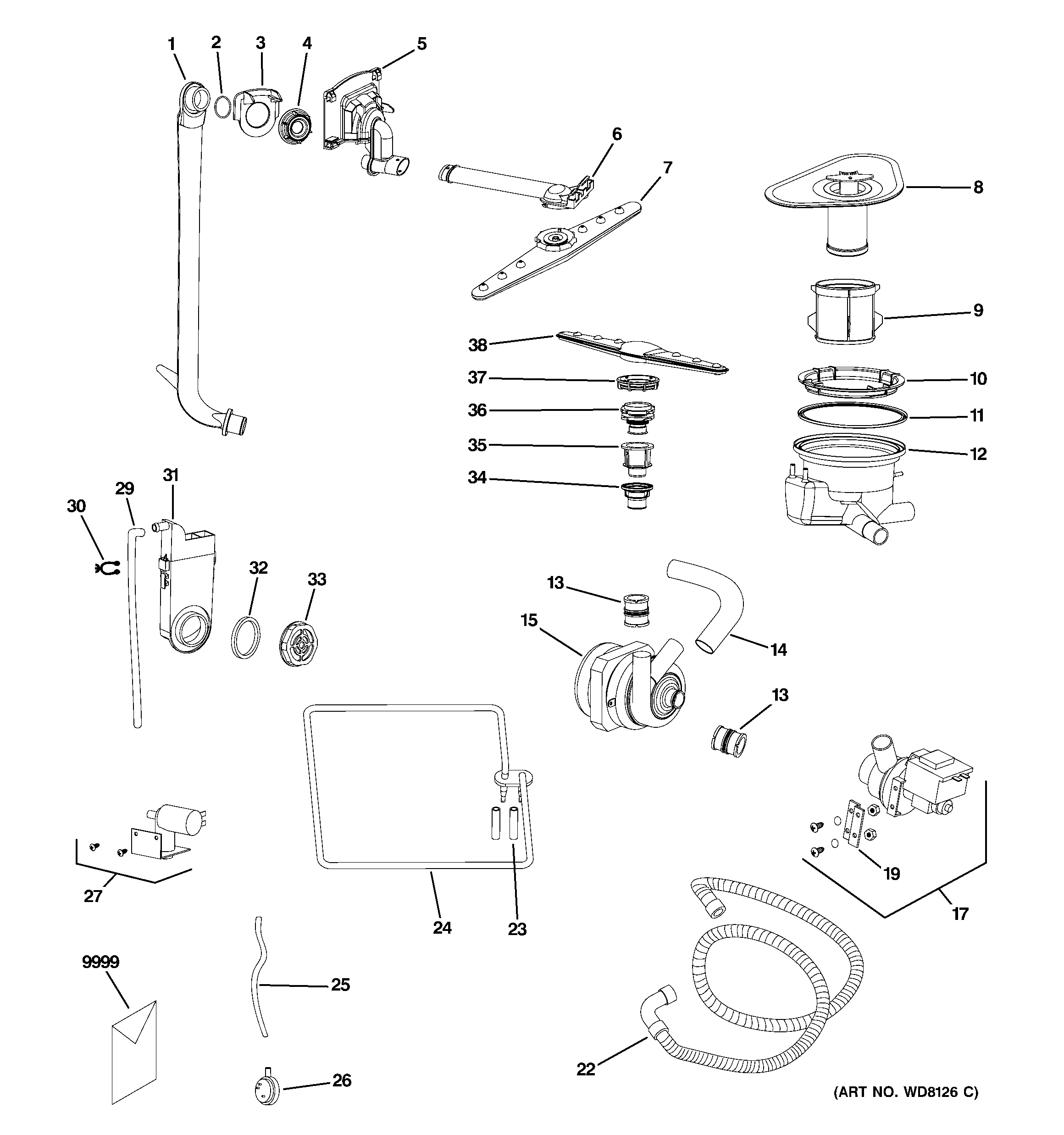

GSM1800D00BB MOTOR-PUMP MECHANISM

Products

Position	Product
1	MAIN CONDUIT
2	GEN WD01X10240
3	WD01X10241 GE Dishwasher Guide Assembly
4	WD01X10242 GE Dishwasher Nut Ring with Gasket
5	WD12X10165 GE Dishwasher Main Conduit Upper Spray
6	WD12X10166 GE Dishwasher Upper Spray Conduit
7	UPPER SPRAY ASM & GASKET
8	FILTER ASM
9	MICROFILTER
10	WD02X23654 GE Dishwasher Sump Clamping Nut
11	WD08X23655 GE Dishwasher Sump Gasket
12	SUMP
13	WD24X23621 GE Dishwasher Connector Hose
14	WD24X10028 GE Dishwasher Pump Hose
15	MOTOR PUMP ASM
17	DRAIN PUMP ASSY
19	WD01X10252 GE Dishwasher Mounting Plate
22	DRAIN HOSE
23	WD01X23643 GE Dishwasher Insulating Sleeve
24	WD05X23638 GE Heater Element Assembly
25	WD24X10030 GE Dishwasher Pressure Switch Hose
26	WD21X10191 GE Dishwasher Pressure Switch
27	WD15X10009 GE Dishwasher Water Valve Assembly with Screws
29	WD24X10031 GE Dishwasher Fill Hose
30	WD01X10251 GE Dishwasher Clamp Assembly
31	WD12X10170 GE Dishwasher Fill Funnel
32	WD01X10243 GE Dishwasher O-Ring
33	WD18X10029 GE Dishwasher Vent Cap Ring Nut
34	WD01X10244 GE Dishwasher Ring Nut Manifold SUPP
35	WD18X10030 GE Dishwasher Lower Manifold Support
36	LOWER SPRAY SHIFT
37	CONNECTING RING NUT
38	LOWER SPRAY ASM
