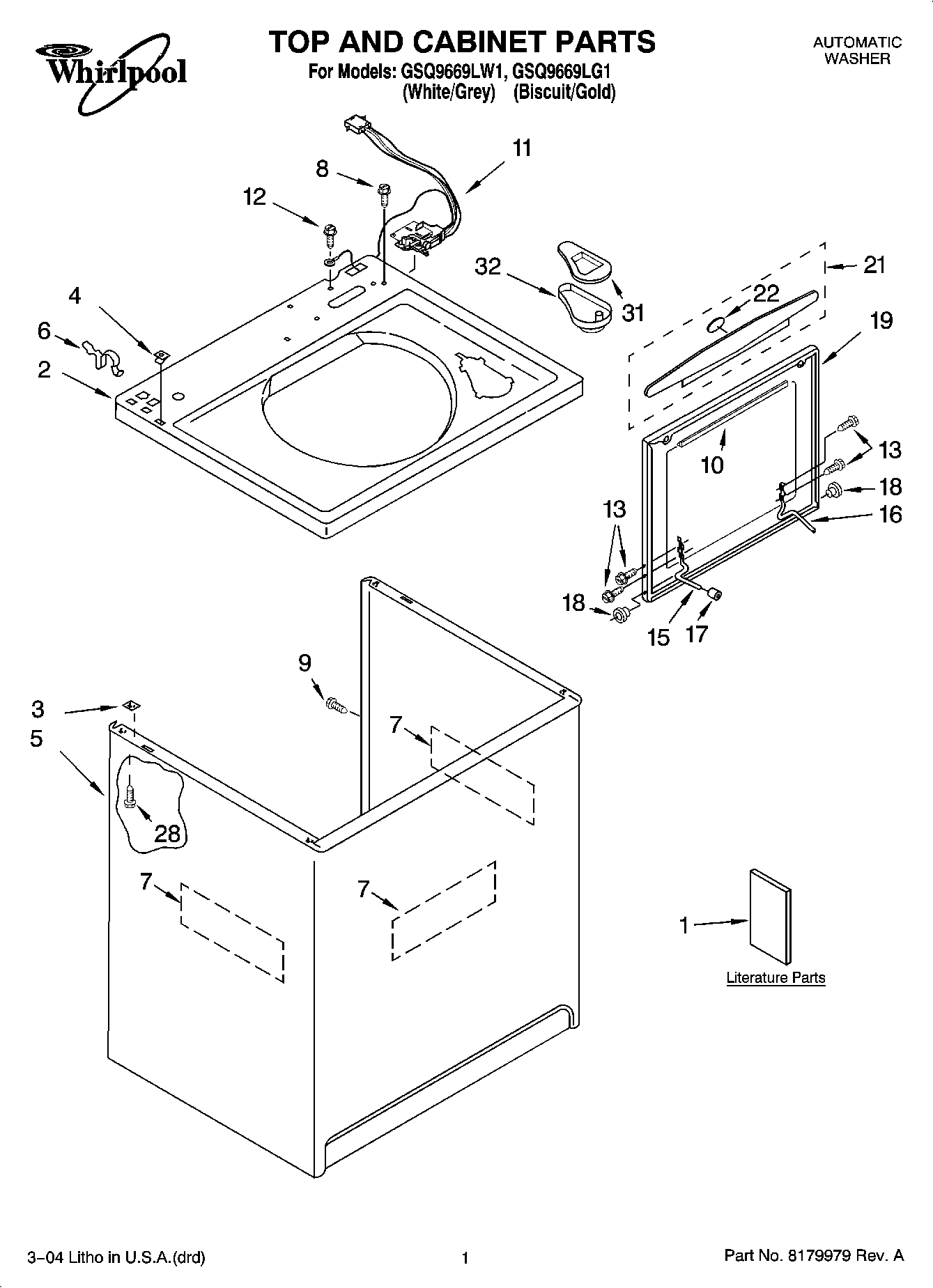

GSQ9669LG1 01 – TOP AND CABINET PARTSadmin2025-04-26T11:34:53+00:00GSQ9669LG1 01 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Manual, (Washer) Do-It-Yourself |
| 1 | Literature Parts (Feature Sheet) |
| 1 | Literature Parts (Energy Guide) |
| 1 | Literature Parts (Wiring Diagram) |
| 2 | Top (Biscuit) |
| 2 | Top (White) |
| 3 | WP62750 Whirlpool Spacer |
| 4 | WP357213 Whirlpool Hinge Stopper |
| 5 | Cabinet (Biscuit) |
| 5 | 63424 Whirlpool Cabinet Assembly |
| 6 | WP62780 Whirlpool Cabinet Clip |
| 7 | Cabinet - Sound Damper |
| 8 | Screw, Lid Switch (2) |
| 9 | WP308685 Whirlpool Microwave Screw |
| 10 | Seal, Lid |
| 11 | WP8054980 Whirlpool Lid Switch Assembly |
| 12 | WP3351614 Whirlpool Screw |
| 13 | SCREW |
| 15 | Hinge, Lid (L.H.) |
| 16 | Hinge, Lid (R.H.) |
| 17 | Bumper, Lid Hinge |
| 18 | Bearing, Lid Hinge (2) |
| 19 | Lid (White) |
| 19 | Lid (Biscuit) |
| 21 | Handle, Lid (Pewter) |
| 21 | Handle, Lid (Sage) |
| 22 | Insert, Handle |
| 28 | WP3390631 Whirlpool Screw |
| 31 | Cover, Dispenser |
| 32 | Dispenser, Bleach |
