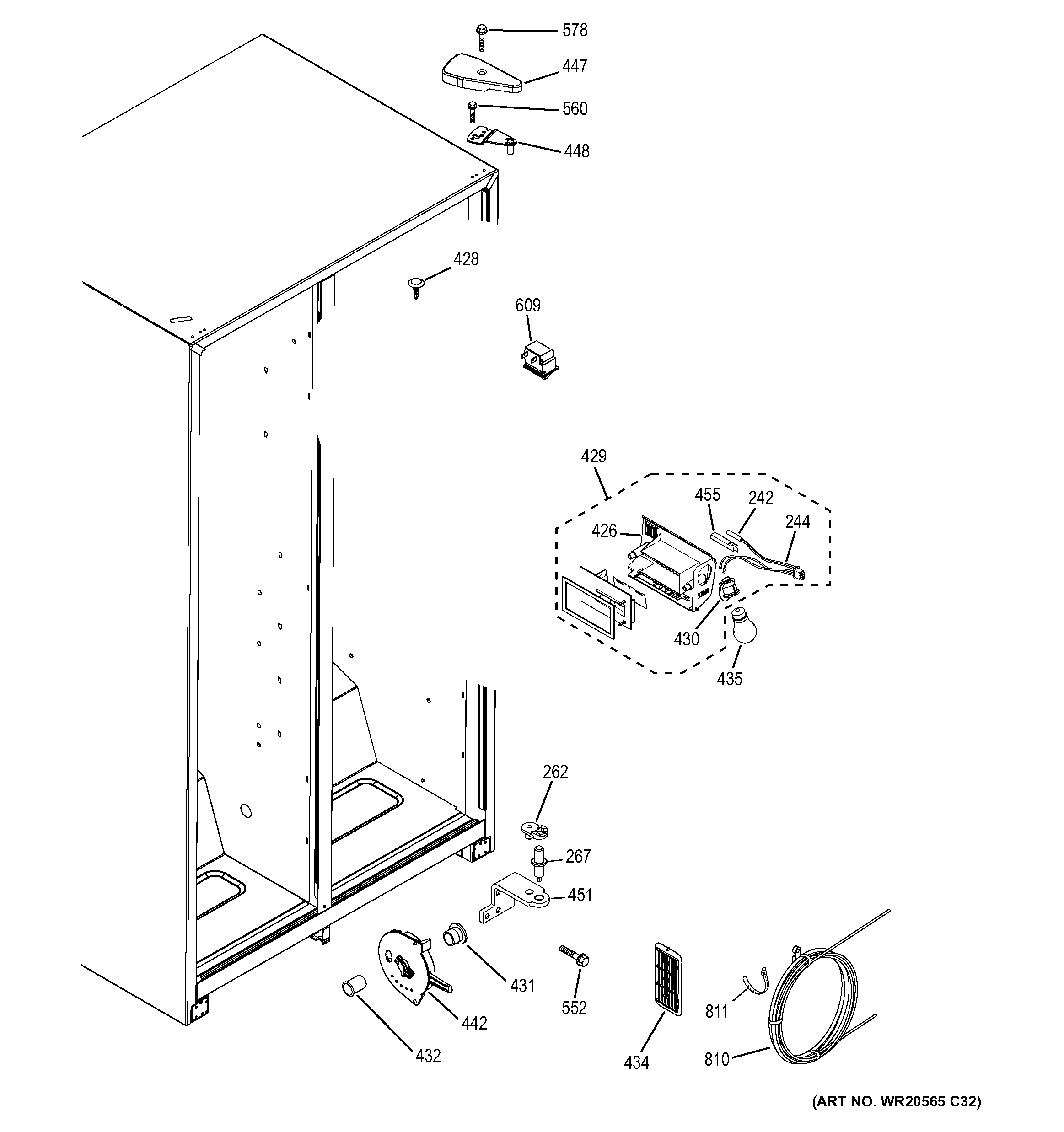

GSS20ETHB BB FRESH FOOD SECTION

GSS20ETHB BB FRESH FOOD SECTION

Written by

in

GSS20ETHB BB FRESH FOOD SECTION

Products

PositionProduct
242WR55X10025 GE Refrigerator Temperature Sensor
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR23X10496 GE Refrigerator Fan Heater Harness
426WR60X10215 GE Refrigerator Damper and Thermistor Assembly
428GEN WR02X7051
429COVER DAMPER
430SOCKET LAMP
431WR2X9299 GE Refrigerator Air Duct Cap Mullion
432WR02X10561 GE Duct Mullion
434GEN WR17X10262
435RANGE ONLY 40W 120V APPL BULB
442GEN WR02X10763
447COVER HNG BK
448HINGE TOP & PIN ASM RH
451HINGE BTM & PIN ASM
455COVER SENSOR FF
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
609SWITCH LIGHT
810WATER STORAGE COIL
811WR02X11607 GE Refrigerator Wire Tie
