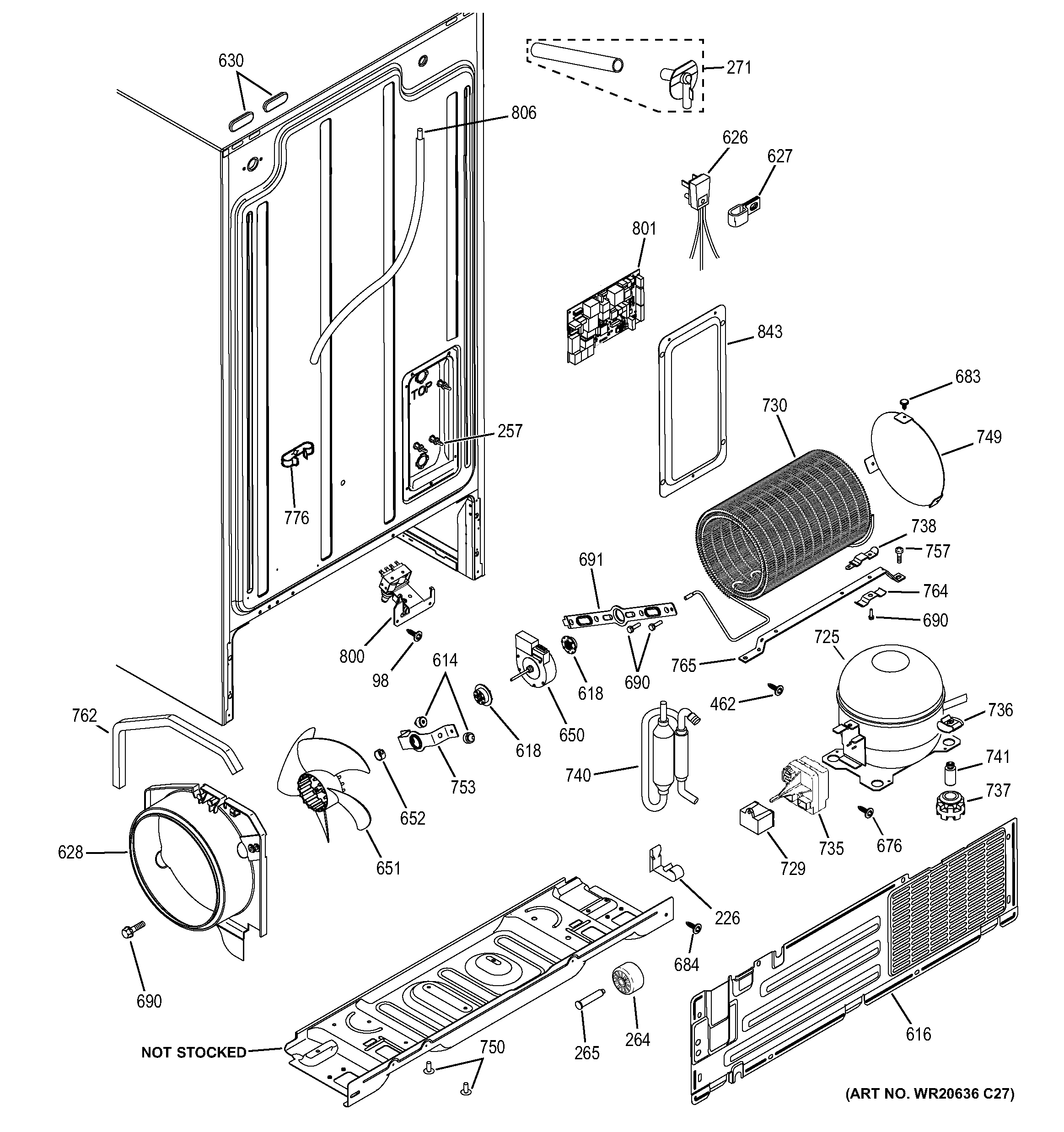

GSS20ETHD BB MACHINE COMPARTMENT

GSS20ETHD BB MACHINE COMPARTMENT

Written by

in

GSS20ETHD BB MACHINE COMPARTMENT

Products

PositionProduct
98SCR 8-36 T IHW 3/8 S N
226WR02X10558 GE Refrigerator Drain Tube Clip
257FASTENER BOARD
264WR02X10695 GE Refrigerator Wheel
265WR02X12454 GE Refrigerator Mobility Front Assembly
271WR17X11168 GROMMET AND TUBE ASM
462SCR 8-18 AB HXW 1/2 S
614BUMPER
616GEN WR82X10107
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
628WR17X35527 GE Refrigerator Condenser Fan Shroud
630GEN WR02X8525
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
683WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
690WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
691WR02X11742 GE Refrigerator Bracket Condenser Fan
725WR87X33165 GE Refrigerator Compressor
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
735COMBO RELAY
736GEN WR02X8203
737WR02X10678 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
800WR57X10050 GE Refrigerator Water Valve
801WR55X11072C-includeCORE GE WR55X11072C Whirlpool Refrigerator Control Board with Core
806WR17X11625 GE Refrigerator Plastic Tube
843COVER ENCLOSURE
