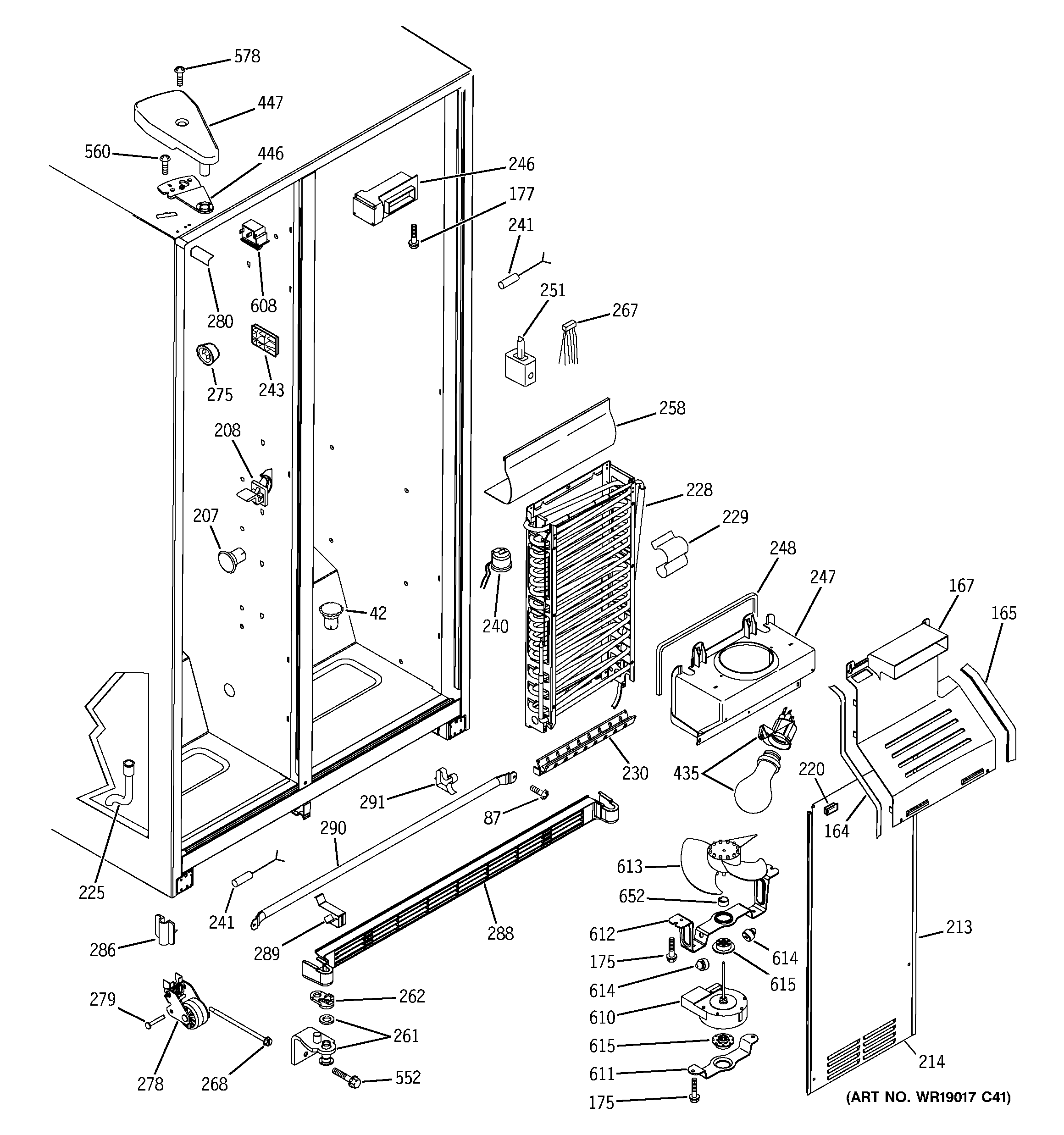

GSS20IBMDCC FREEZER SECTION

GSS20IBMDCC FREEZER SECTION

Written by

in

GSS20IBMDCC FREEZER SECTION

Products

PositionProduct
42WR2X3139 GE Refrigerator Plug Button
87WZ4X241D GE Screw Package
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X10843
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
177SCREW
207GEN WR02X4676
208GEN WR02X4674
213WR30X311 GE Refrigerator Ice Tray
213GEN WR14X10054
214GEN WR17X11147
220GEN WR02X9002
225GEN WR02X10590
228WR87X28949 GE Refrigerator Evaporator
229GEN WR02X10552
230WR51X10101 GE Refrigerator Defrost Heater
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
243GEN WR17X10842
246WR09X10050 DAMPER & GAS
247GEN WR17X11227
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10765
261GEN WR01X10202
261GEN WR13X10120
262GEN WR02X11286
267GEN WR23X10255
268GEN WR01X10199
275WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280WR02X10613 GE Corner Cap – Biscuit
286GEN WR17X10728
288GEN WR74X10063
289GEN WR02X10560
290GEN WR17X10777
291GEN WR02X10589
435WR02X10591 GE Light Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
446GEN WR13X10121
447GEN WR02X10555
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WZ2X464D GE Screw
608FREEZER LIGHT SWITCH
610DC, EVAP MOTOR W/THERMISTOR
611WR02X10764 GE Refrigerator Evaporator Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
