GSS22KGMDCC SEALED SYSTEM & MOTHER BOARD

GSS22KGMDCC SEALED SYSTEM & MOTHER BOARD

Written by

in

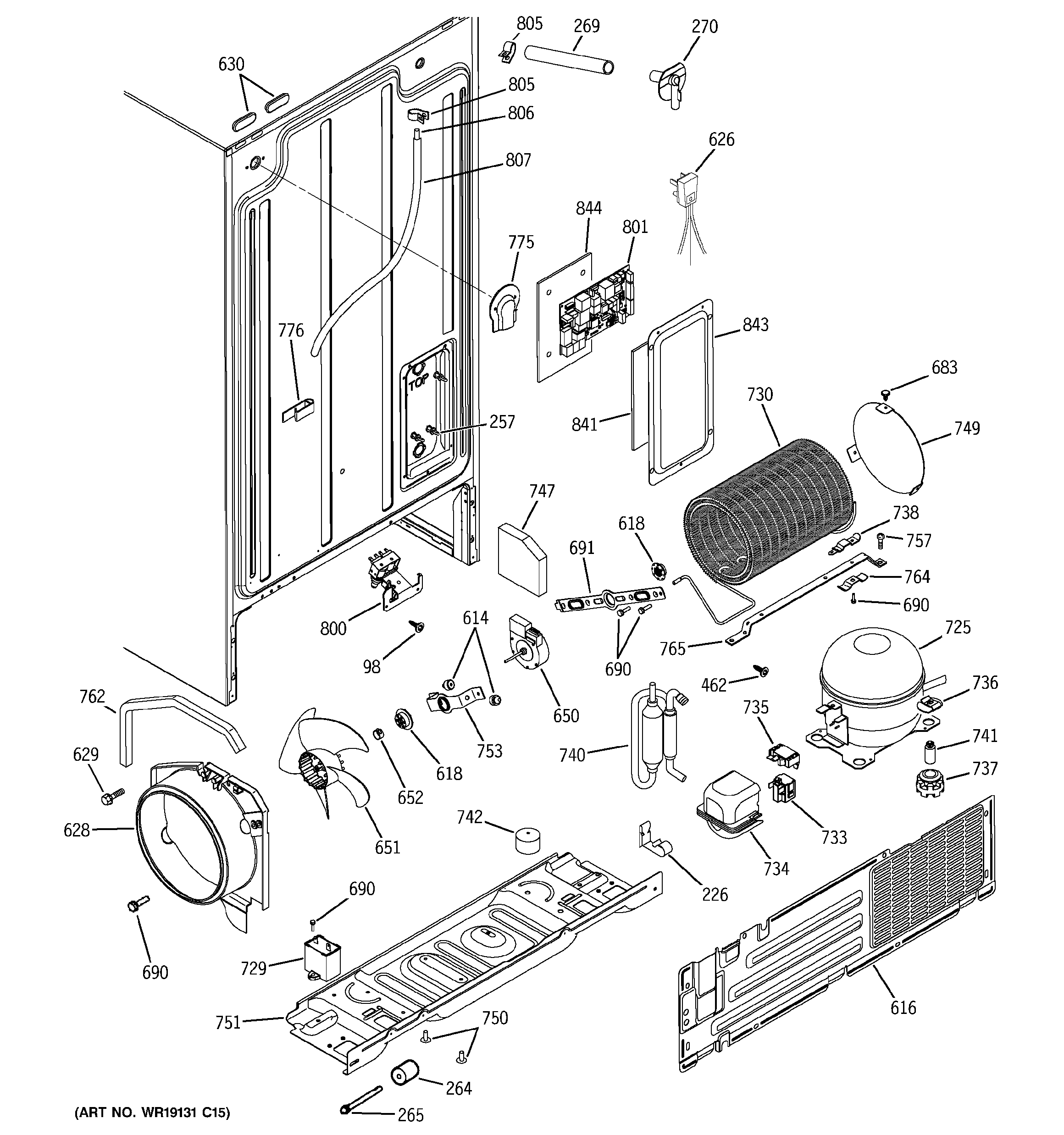

GSS22KGMDCC SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
98WR1K1 GE Screw 8-36 T
226WR02X10558 GE Refrigerator Drain Tube Clip
257GEN WR02X10159
264WR02X10695 GE Refrigerator Wheel
265GEN WR01X10039
270WR17X11168 GROMMET AND TUBE ASM
462GEN WZ06X0136
614BUMPER
616WR82X10108 GE Refrigerator Access Cover
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628WR17X35527 GE Refrigerator Condenser Fan Shroud
629WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
630WR2X4097 GE Button Plug
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X10562 GE Push Fastener
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10226 GE Refrigerator Compressor Kit EGYS90
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X26749 GE Refrigerator Start Relay
734GEN WR02X10556
735GEN WR08X10026
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
747GEN WR82X10073
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10753
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X13124 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
806WR17X11625 GE Refrigerator Plastic Tube
807GEN WR17X11325
841GEN WR02X10599
843GEN WR17X10700
844GEN WR02X10569
