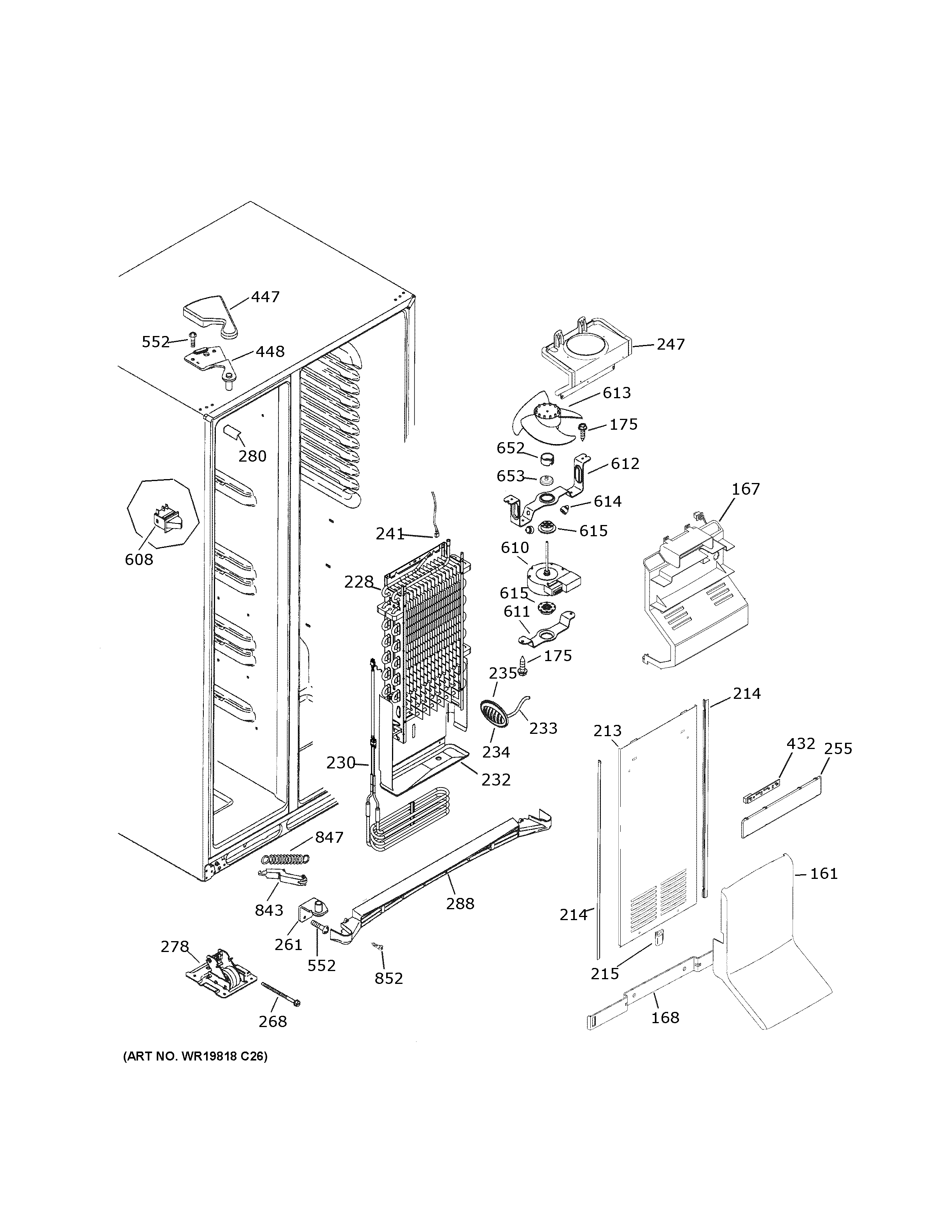

GSS23GGPFCWW FREEZER SECTION

GSS23GGPFCWW FREEZER SECTION

Written by

in

GSS23GGPFCWW FREEZER SECTION

Products

PositionProduct
161WR17X11961 GE Refrigerator Lower Air Tower
167WR17X35050 GE Refrigerator Duct Assembly
168WR02X12060 GE Freezer Lower Tower Bracket
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
213WR17X12522 GE Refrigerator Evaporator Cover
214WR14X10196 GE Refrigerator Gasket Evaporator Cover
215WR01X10211 GE Refrigerator Upper Tower Bracket
228WR85X39481 GE Evaporator
230WR51X39475 GE Defrost Heater
232WR17X11949 GE Refrigerator Trough Shield Assembly
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
241WR55X10025 GE Refrigerator Temperature Sensor
247EVAPORATOR FAN SHROUD
255WR17X38448 GE Plenum Insert
261WR13X10137 GE Refrigerator Bottom Hinge
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10640 GE Refrigerator White Cap Corner OC
288WR74X10248 GE Refrigerator Base Grille
432WR55X26671 REFRIGERATOR LED LIGHT BOARD
447WR02X10687 GE Refrigerator Cover Hinge
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
608GEN WR23X10733
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
