GSS23QGTL BB FREEZER DOOR

GSS23QGTL BB FREEZER DOOR

Written by

in

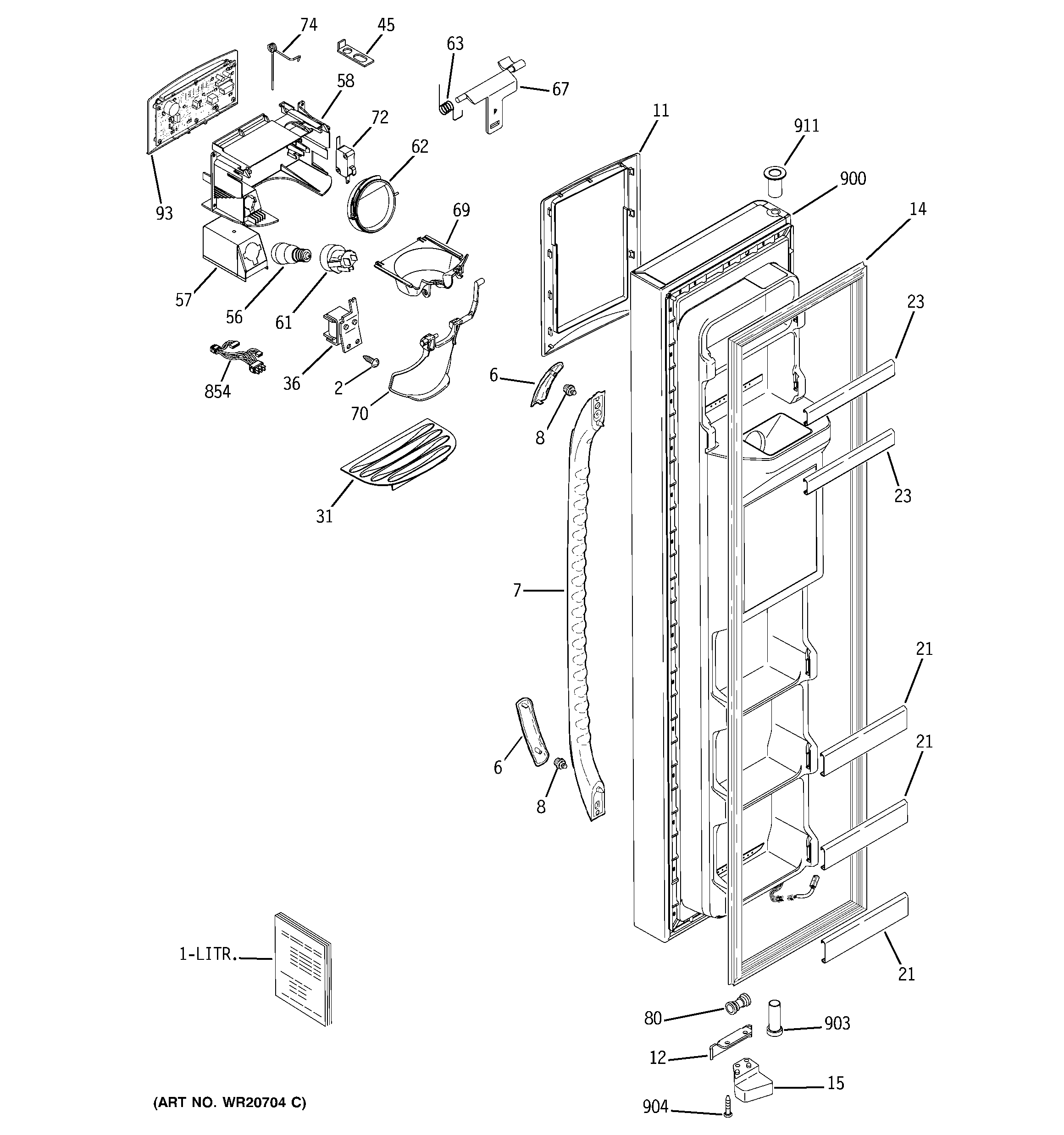

GSS23QGTL BB FREEZER DOOR

Products

PositionProduct
1GEN 49-60593
1GEN 31-51662
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6GEN WR12X10816
6GEN WR12X10817
6GEN WR12X10818
7GEN WR12X10823
7GEN WR12X10811
7GEN WR12X10812
8GEN WR02X12255
11GEN WR38X10367
11GEN WR38X10365
11GEN WR38X10366
12WR02X13425 GE Refrigerator Door Stop
12GEN WR02X10817
12WR02X13424 GE Refrigerator Door Stop
14GASKET
14WR24X20454 GE Refrigerator Gasket
15WR02X10638 GE Refrigerator Cam Closure
15WR02X10780 GE Refrigerator Cam Closure
21GEN WR17X11947
23GEN WR17X11946
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
31GEN WR17X11656
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR17X12201 GE Light Reflector
58GEN WR17X12818
58WR17X12785 GE Refrigerator Housing Shield Dispenser
58WR17X12784 GE Refrigerator Housing Shield Dispenser
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X12059 GE Refrigerator Door Spring Recess
67WR17X11953 GE Refrigerator Door Crank Recess
69WR17X21781 GE Refrigerator Dispenser Ice Funnel
70WR17X12121 GE Refrigerator Paddle Ice Dispenser White
70GEN WR17X12128
70WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X10859 GE Refrigerator Dispenser Interface Assembly
93GEN WR55X10858
93GEN WR55X10857
854GEN WR23X10657
900GEN WR78X11635
900GEN WR78X11632
900GEN WR78X11631
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
903WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10957 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
