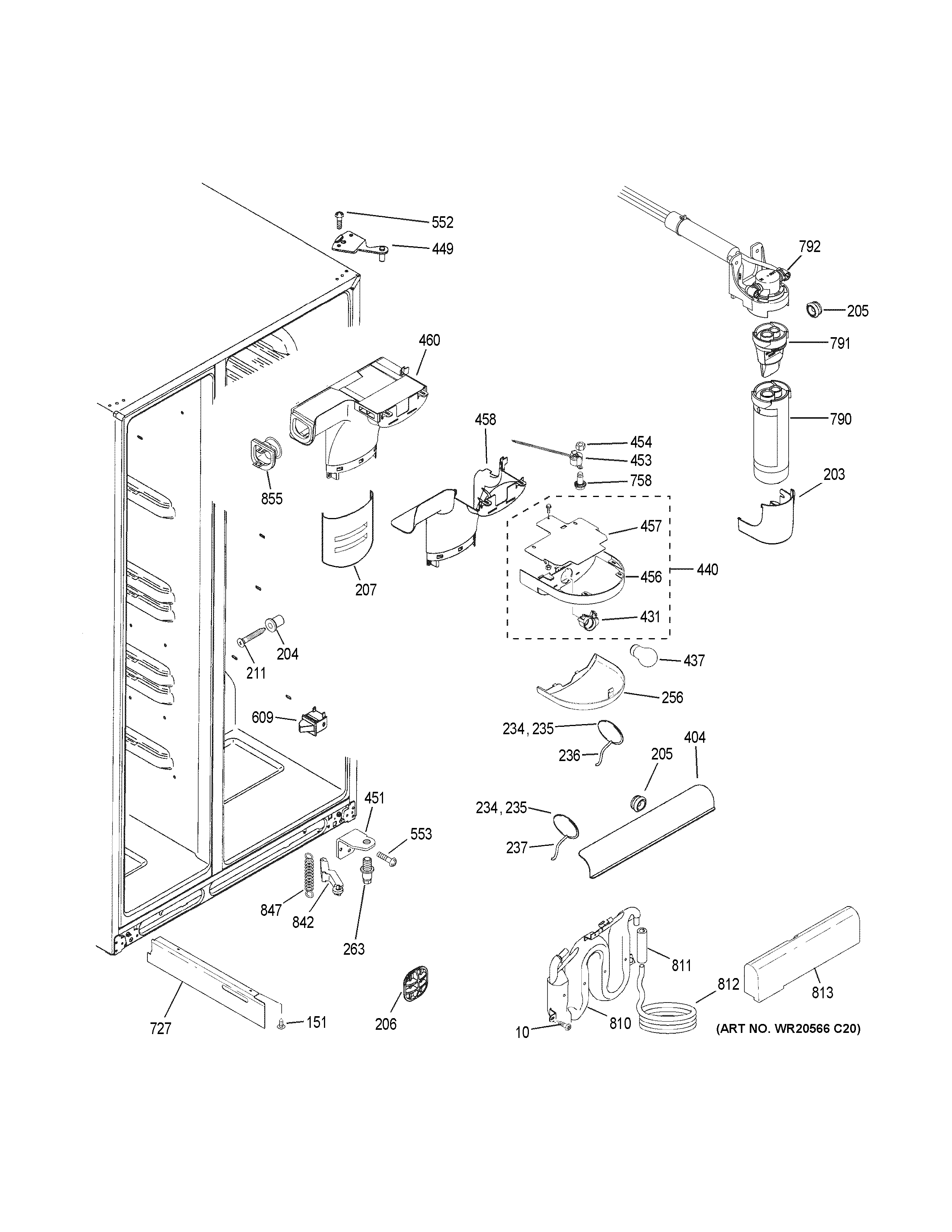

GSS25CGHPCBB FRESH FOOD SECTION

GSS25CGHPCBB FRESH FOOD SECTION

Written by

in

GSS25CGHPCBB FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
203WR17X30703 GE Refrigerator XWF Filter Cover
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
256WR17X11942 GE Refrigerator Light Shield
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
431WR02X30348 GE Refrigerator Lamp Socket
437RANGE ONLY 40W 120V APPL BULB
440WR17X26726 GE Refrigerator Housing Lamp Assembly
449WR13X24863 GE Refrigerator Top Hinge and Pin Assembly
451WR13X10159 GE Refrigerator Bottom Hinge Black
453HARNESS FF LT
454WR01X10212 GE Refrigerator 8-32 Nut
456WR17X11959 GE Refrigerator Housing Lamp
457WR17X12201 GE Light Reflector
458WR17X12881 GE Refrigerator Inlet Cover
460COVER ASM FF INLET
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
553WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12295 GE Refrigerator Separator Air HISIDE
758WD2X323D GE Dishwasher Screw Package
790XWFE GE Refrigerator Water Filter
791WR17X33825 GE Bypass Filter Plug
792XWF MANIFOLD & TUBING
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
813WR17X11620 GE Refrigerator Insulation Tank Foam
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
