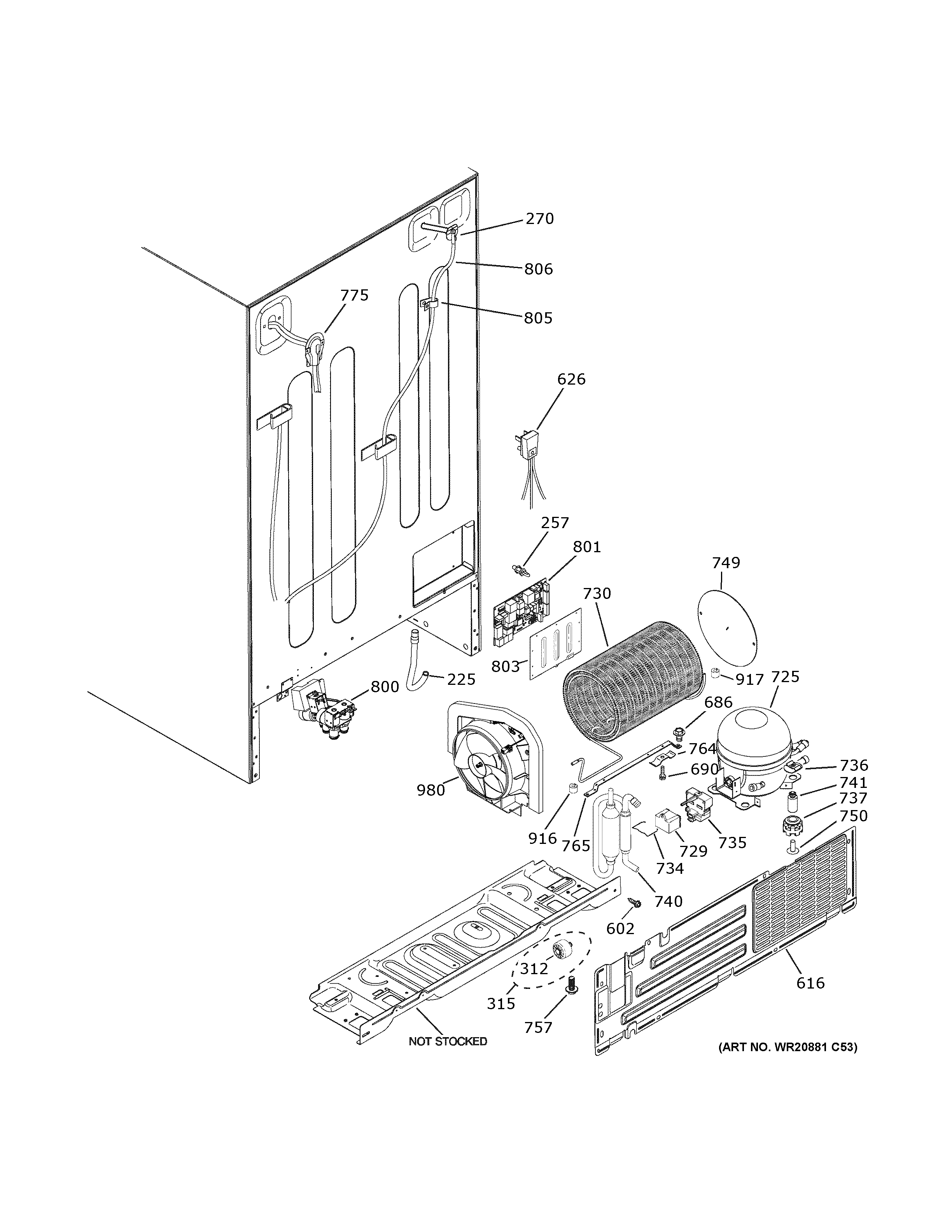

GSS25GMPJCES MACHINE COMPARTMENT

GSS25GMPJCES MACHINE COMPARTMENT

Written by

in

GSS25GMPJCES MACHINE COMPARTMENT

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
315WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
616MACHINE COMPARTMENT COVER 36"
626WR23X29305 GE Refrigerator Lower CAB Harness
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
725SINGLE SPEED COMPRESSOR KIT
729WR55X42725 GE 10 µF Capacitor
730WR87X41965 GE Condenser Bracket
734RETAINER CLIP
735WR55X31513 GE Refrigerator PTCR Overload Combo
736CLIP
737WR02X40305 GE Grommet
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X37725 GE Water Line Cover
800WR57X36626 GE Water Valve Triple
801WR55X40445 GE Refrigerator Main Board SXS Stainless Steel
803WR02X40325 GE Control Board Cover
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
916WR02X13569 GE Refrigerator Sound Damper
917WR02X13573 GE Refrigerator Sound Damper
980CONDENSER FAN ASSEMBLY
