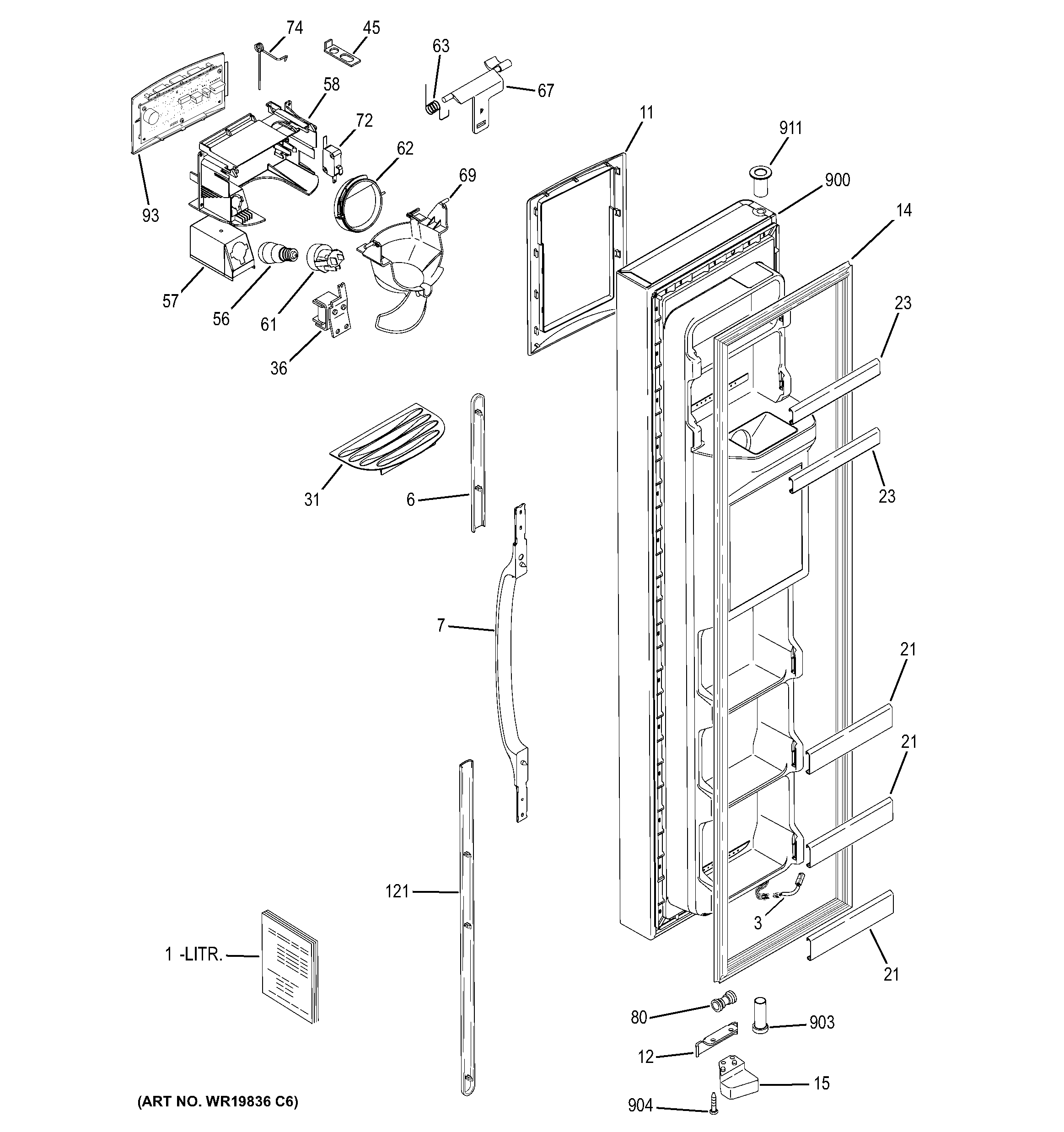

GSS25QGSCCC FREEZER DOOR

GSS25QGSCCC FREEZER DOOR

Written by

in

GSS25QGSCCC FREEZER DOOR

Products

PositionProduct
1GEN 49-60343
1GEN 31-51623
1WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
1WR02X12187 GE Refrigerator Support Shelf
3GEN WR09X10132
6GEN WR12X10164
6GEN WR12X10352
6GEN WR12X10163
7GEN WR12X10434
7WR12X10332 GE Refrigerator SXS Handle
7GEN WR12X10349
11WR38X10237 GE Refrigerator Black Recess Trim
11GEN WR38X10227
11WR38X10364 GE Refrigerator Bisque Trim Recess Dispenser
12GEN WR02X10817
12WR02X13424 GE Refrigerator Door Stop
12WR02X13425 GE Refrigerator Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10780 GE Refrigerator Cam Closure
15WR02X10638 GE Refrigerator Cam Closure
21GEN WR17X11940
23GEN WR17X11941
31WR17X11655 GE Refrigerator Grille Recess Black
31GEN WR17X11656
31WR17X11654 GE Refrigerator White Recess Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR02X10670 GE Refrigerator Reflector Light
58GEN WR17X11863
58GEN WR17X12033
58WR49X10228 GE Dispenser Shield Housing Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69GEN WR17X11966
69WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10521
93INTERFACE DISP ASM
93GEN WR55X10520
121GEN WR12X10219
121GEN WR12X10218
121GEN WR12X10435
900DOOR FOAM ASM FZ BK
900GEN WR78X11425
900GEN WR78X11426
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
903WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
903WR01X10208 GE Refrigerator Door Thimble
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
911WR01X10957 GE Refrigerator Door Thimble
