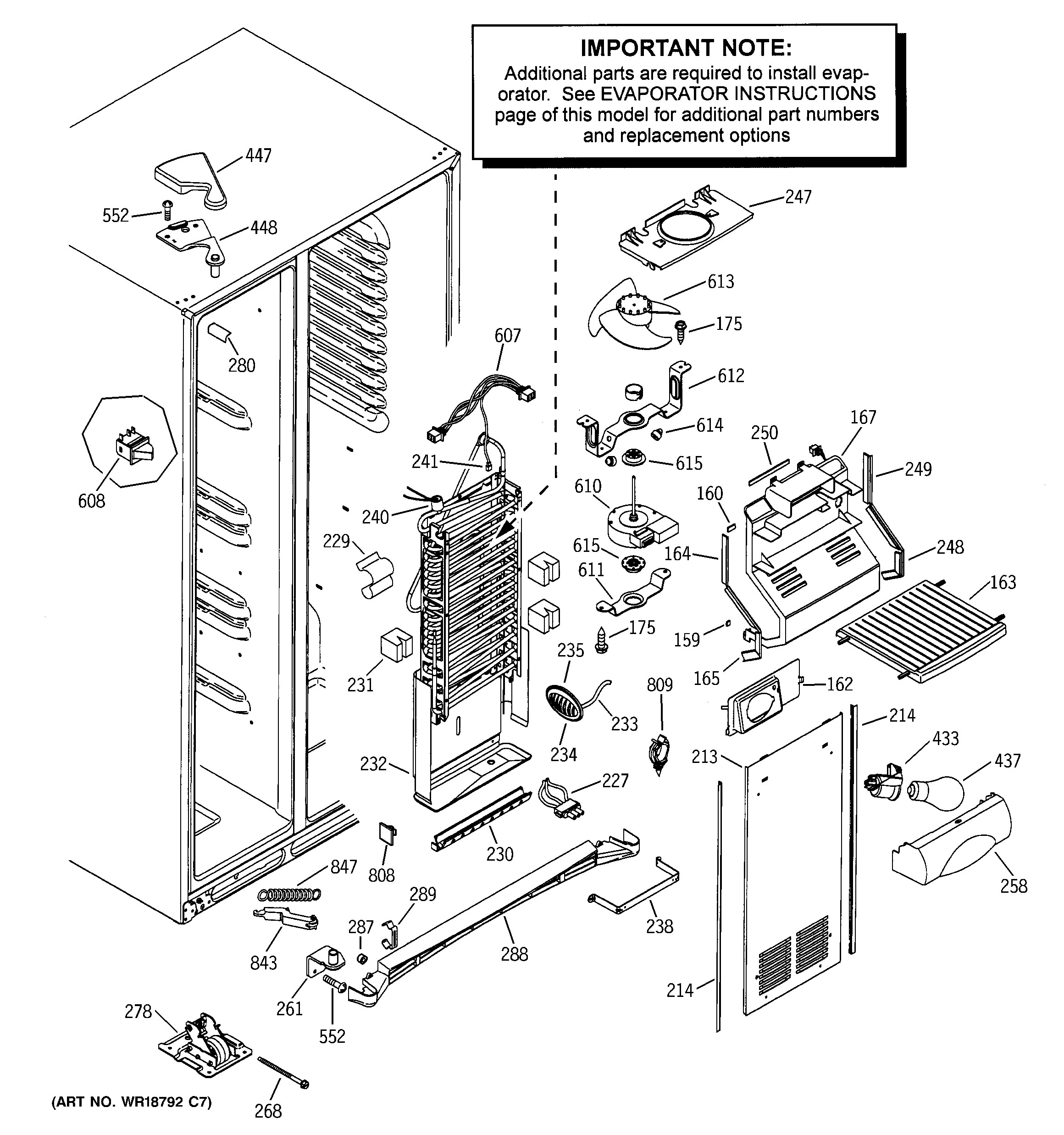

GSS25TGMBCC FREEZER SECTION

GSS25TGMBCC FREEZER SECTION

Written by

in

GSS25TGMBCC FREEZER SECTION

Products

PositionProduct
10WR01X10065 GE Screw
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
162WR02X10634 GE Refrigerator Reflector
163WR71X10252 GE Refrigerator Upper Shelf
164GEN WR14X10074
165GEN WR14X10065
167GEN WR17X10838
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
203WR17X10800 GE Refrigerator Water Cover
204GEN WR02X10676
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
212WR02X10689 GE Refrigerator Base Grille Grommet
213WR17X11668 GE Refrigerator Cover Evaporator Front
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
227GEN WR23X10142
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
238GEN WR02X10667
240WR50X10068 GE Refrigerator Defrost Thermostat
247WR17X10812 GE Refrigerator Orifice Fan Assembly
248WR14X10066 GE Refrigerator Gasket Plenum
249GEN WR14X10073
250WR14X10069 GE Adhesive Foam Strip
256GEN WR17X10839
258GEN WR17X10840
259GEN WR17X10911
261GEN WR13X10162
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10785 GE Refrigerator Cap Corner O
287GEN WR02X10836
288GEN WR74X10070
289GEN WR02X7646
402WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
404WR17X11609 GE Refrigerator Air Flow Diverter
405GEN WR02X10805
405GEN WR02X10806
421GEN WR55X10070
424GEN WR55X10099
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
437RANGE ONLY 40W 120V APPL BULB
447WR02X10787 GE Refrigerator Hinge Cover Bisque
448WR13X10216 GE Top Hinge and Pin Assembly
449WR13X24863 GE Refrigerator Top Hinge and Pin Assembly
450WR02X10788 GE Refrigerator Bisque Cover Hinge
451GEN WR13X10161
453WR23X10209 GE Refrigerator Thermostat Assembly
454WR01X10212 GE Refrigerator 8-32 Nut
456WR71X10290 GE Refrigerator Light Bezel
458GEN WR17X10912
552WR01X10631 GE Screw
607GEN WR23X10223
608FREEZER LIGHT SWITCH
609REFRIGERATOR DOOR LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
727GEN WR17X10820
758WD2X323D GE Dishwasher Screw Package
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792MWF MANIFOLD
808WR2X4039 GE Refrigerator Clamp
809WR1X1936 GE Refrigerator Fastener
810WR17X10734 GE Refrigerator Water Tank Drain
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
842WR11X10011 GE Refrigerator Lever Assembly
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
