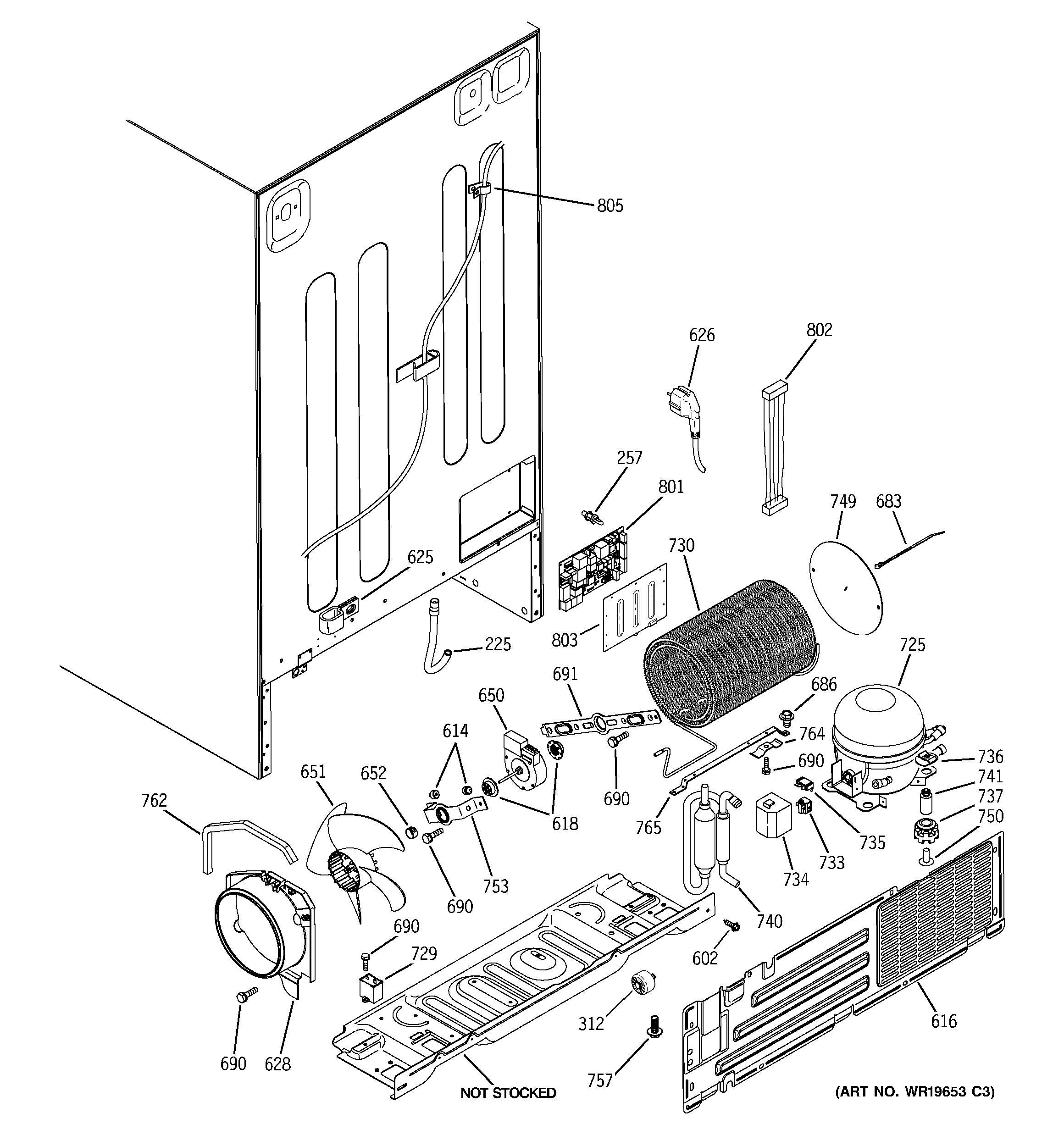

GSS25YBRAWW SEALED SYSTEM & MOTHER BOARD

GSS25YBRAWW SEALED SYSTEM & MOTHER BOARD

Written by

in

GSS25YBRAWW SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
312WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR1X1591 GE Refrigerator Screw
614BUMPER
616GEN WR82X10100
618WR02X11331 GE Refrigerator Grommet
625WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628WR17X35527 GE Refrigerator Condenser Fan Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X20798 GE Refrigerator High Side Assembly
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X10057 GE Refrigerator PTCR
734GEN WR02X10556
735GEN WR08X0164
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10695 GE Refrigerator Bracket Condenser Bar
801WR55X26733 GE Refrigerator Control Board
802WR23X10505 GE Refrigerator Harness Board INDIV
803GEN WR02X11847
