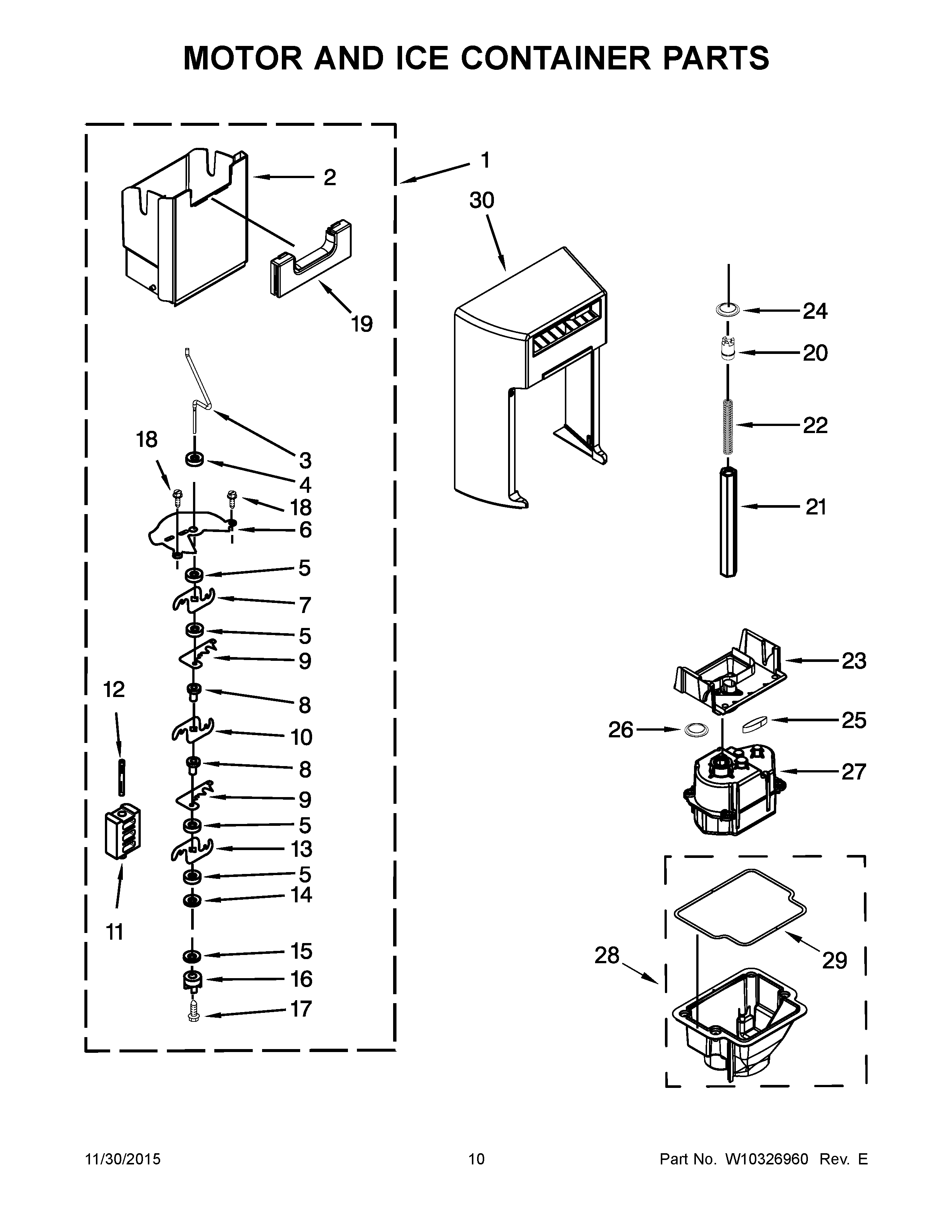

GSS26C4XXY00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

Products

Position	Product
1	W11109888 Whirlpool Refrigerator Ice Container
2	BIN, ICE
3	AUGER, CRUSHER
4	Washer
5	SPACER, STEP
6	COVER, CRUSHER
7	BLADE, ROTARY A
8	SPACER, FLAT
9	Blade, Fixed
10	W10341943 Whirlpool Blade
11	W10178238 Whirlpool Blade Block
12	W10166878 Whirlpool Roll Pin
13	BLADE, ROTARY C
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	W11652042 Whirlpool Bin Latch
20	WP2220458 Whirlpool Drive Cam
21	WPW10258544 Whirlpool Refrigerator Shaft
22	W10852956 Whirlpool Refrigerator Spring
23	CHUTE
24	WP2198628 Whirlpool Door Seal
25	WPW10291905 Whirlpool Seal
26	WP2212370 Whirlpool Washer
27	W11202789 Whirlpool Auger Motor
28	W11678273 Whirlpool Bracket
29	W10166854 Whirlpool Refrigerator Gasket
30	WPW10287594 Whirlpool Refrigerator Front Cover
