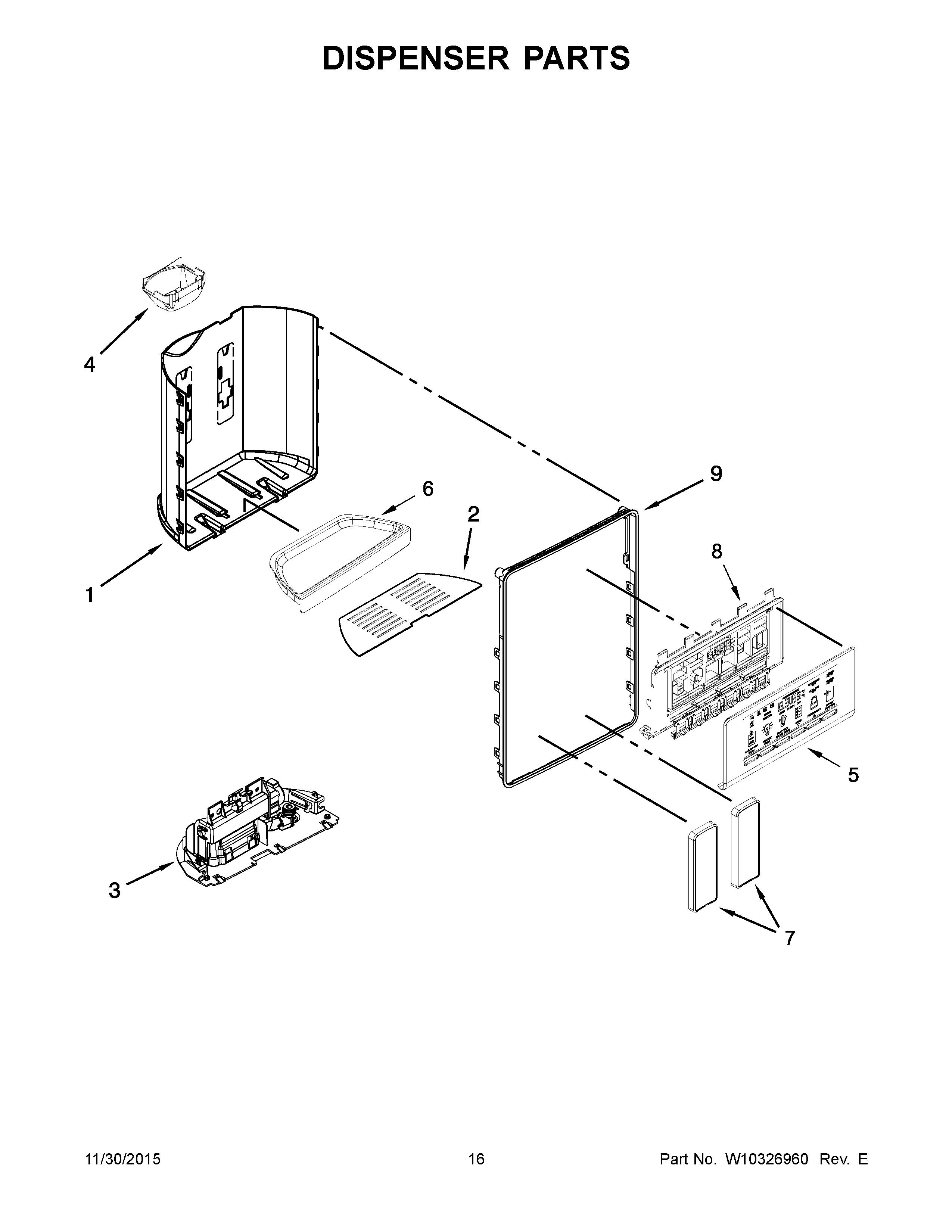

GSS26C4XXY00 09 – DISPENSER PARTS

GSS26C4XXY00 09 – DISPENSER PARTS

Written by

in

GSS26C4XXY00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276209 Whirlpool Grille
3W10838126 Whirlpool Refrigerator Ice Door
4WPW10435760 Whirlpool Refrigerator Ice Guide
5AFRONT COVER (SILVER)
5FRONT COVER (BLACK)
6AW10254259 Whirlpool Refrigerator Drip Tray
6BW10276225 Whirlpool Refrigerator Drip Tray
6W10254258 Whirlpool Refrigerator Drip Tray
7AWPW10370592 Whirlpool Refrigerator Pad
7BWPW10370594 Whirlpool Refrigerator Pad
7WPW10370593 Whirlpool Refrigerator Pad
8WPW10372210-includeCORE Whirlpool WPW10372210 Refrigerator Electronic Control Board + Core
9W10276265 Whirlpool Refrigerator Dispense Trim
9AW10448931 Whirlpool Refrigerator Dispenser Trim
