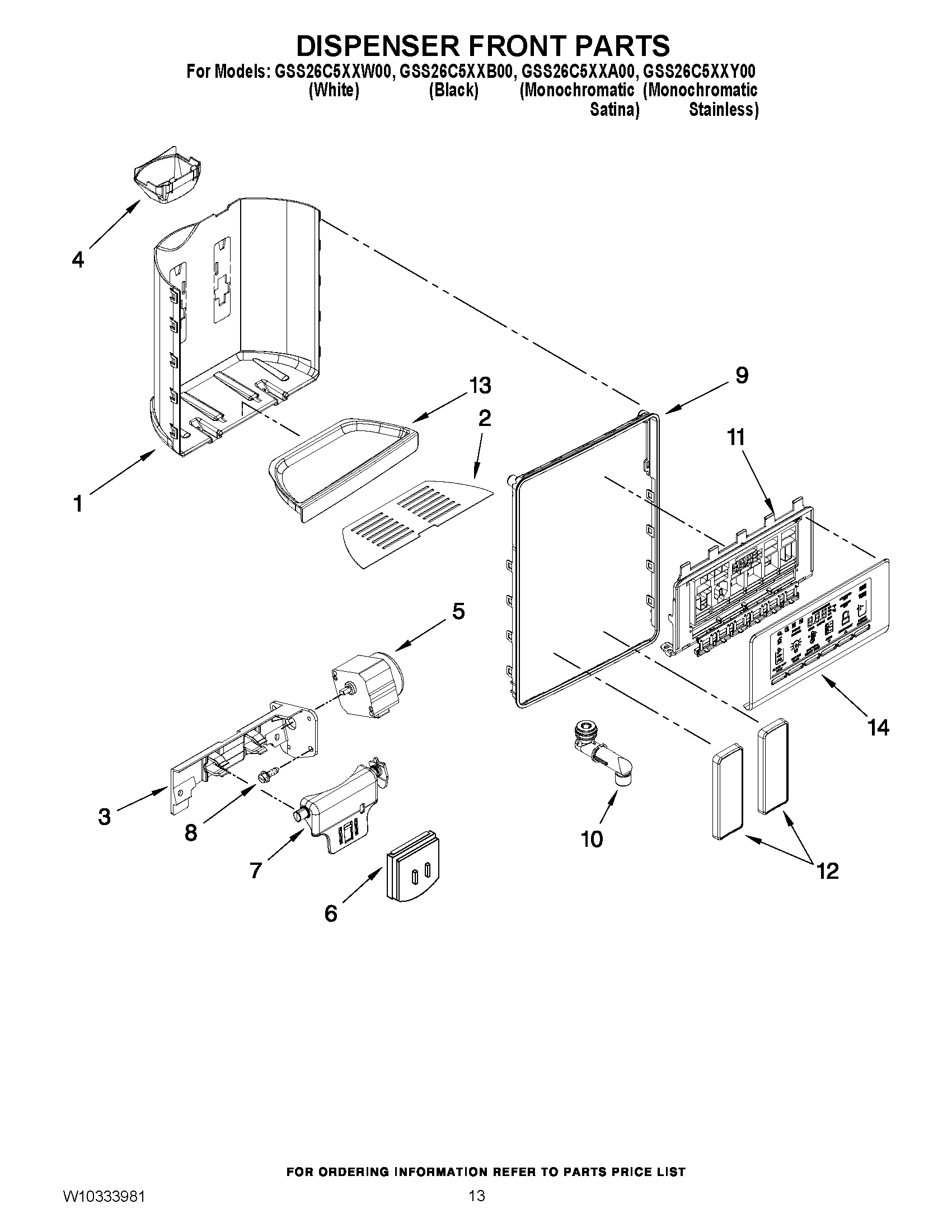

GSS26C5XXA00 08 – DISPENSER FRONT PARTS

GSS26C5XXA00 08 – DISPENSER FRONT PARTS

Written by

in

GSS26C5XXA00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10346235 Whirlpool Refrigerator Chute Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10448931 Whirlpool Refrigerator Dispenser Trim
9W10276265 Whirlpool Refrigerator Dispense Trim
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10372210-includeCORE Whirlpool WPW10372210 Refrigerator Electronic Control Board + Core
12WPW10370592 Whirlpool Refrigerator Pad
12WPW10370594 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
13W10254258 Whirlpool Refrigerator Drip Tray
13W10254259 Whirlpool Refrigerator Drip Tray
13W10276225 Whirlpool Refrigerator Drip Tray
14FRONT COVER (SILVER)
14FRONT COVER (BLACK)
