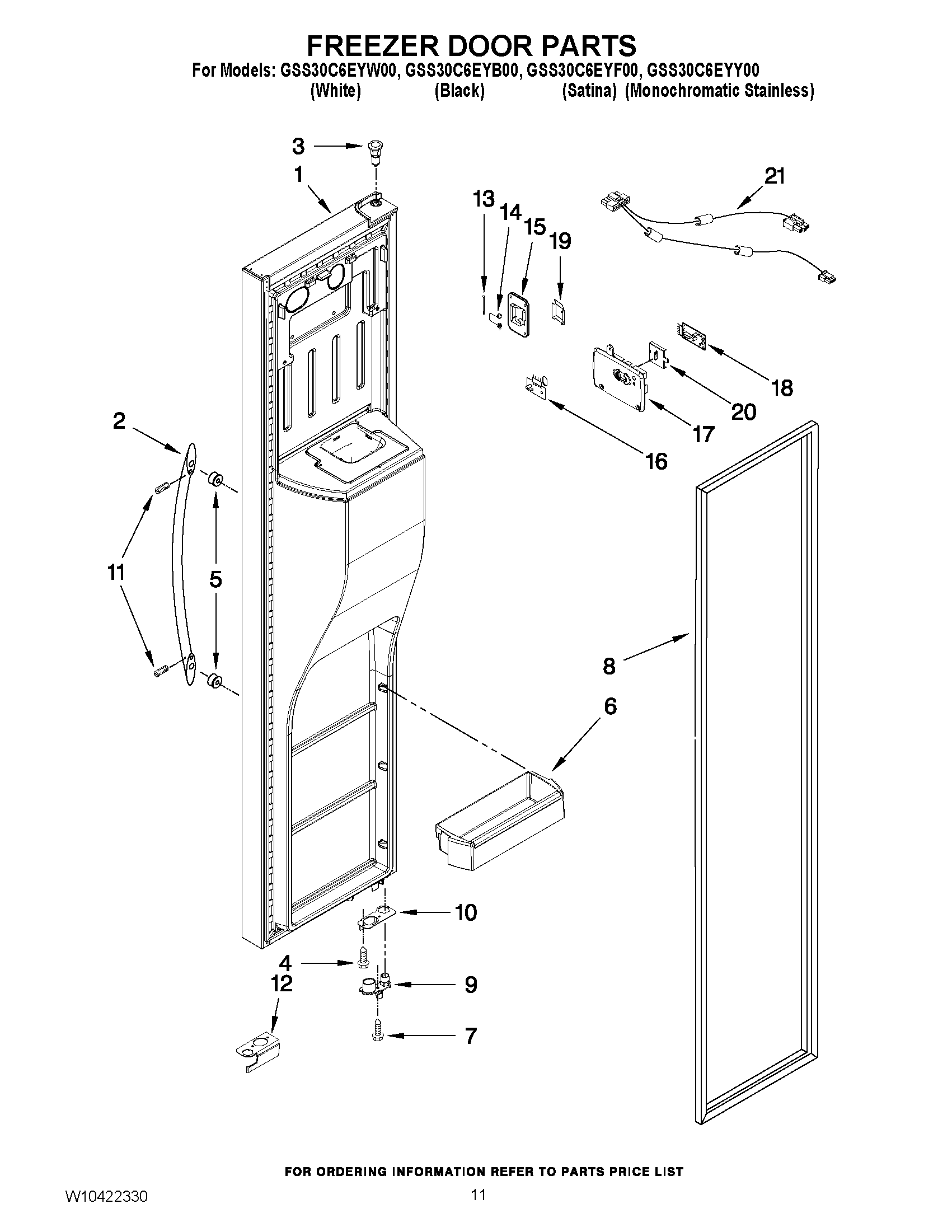

GSS30C6EYB00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (SATINA)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2	WPW10268057 Whirlpool Refrigerator Handle
2	WPW10268056 Whirlpool Refrigerator Door Handle
2	WPW10670421 Whirlpool Refrigerator Handle
3	WP2182181 Whirlpool Refrigerator Thimble
4	WPW10296804 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	WPW10335218 Whirlpool Refrigerator Cantilever Bin
7	SCREW
8	WPW10247885 Whirlpool Door Gasket
8	WPW10249913 Whirlpool Refrigerator FIP Gasket
8	WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9	WPW10248015 Whirlpool Refrigerator Door Cam
9	W11607100 Whirlpool Refrigerator Thimble Cam
9	WPW10257206 Whirlpool Refrigerator Door Cam
10	W11293380 Whirlpool Refrigerator Bracket
11	SCREW
11	WPW10010150 Whirlpool Refrigerator Screw
12	W10632059 Whirlpool Refrigerator Wire Cover
12	W10632060 Whirlpool Refrigerator Wire Cover
12	WPW10632062 Whirlpool Refrigerator Wire Cover
13	WP2198634 Whirlpool Door Pin
14	WP2198635 Whirlpool Refrigerator Spring
15	W10258502 Whirlpool Refrigerator Cover
16	W10870822 Whirlpool Refrigerator Electronic Control Board
17	COVER, RECEIVER
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	FLIPPER
20	W10258540 Whirlpool Refrigerator Slide
21	W10242369 Whirlpool Refrigerator Wire Harness
