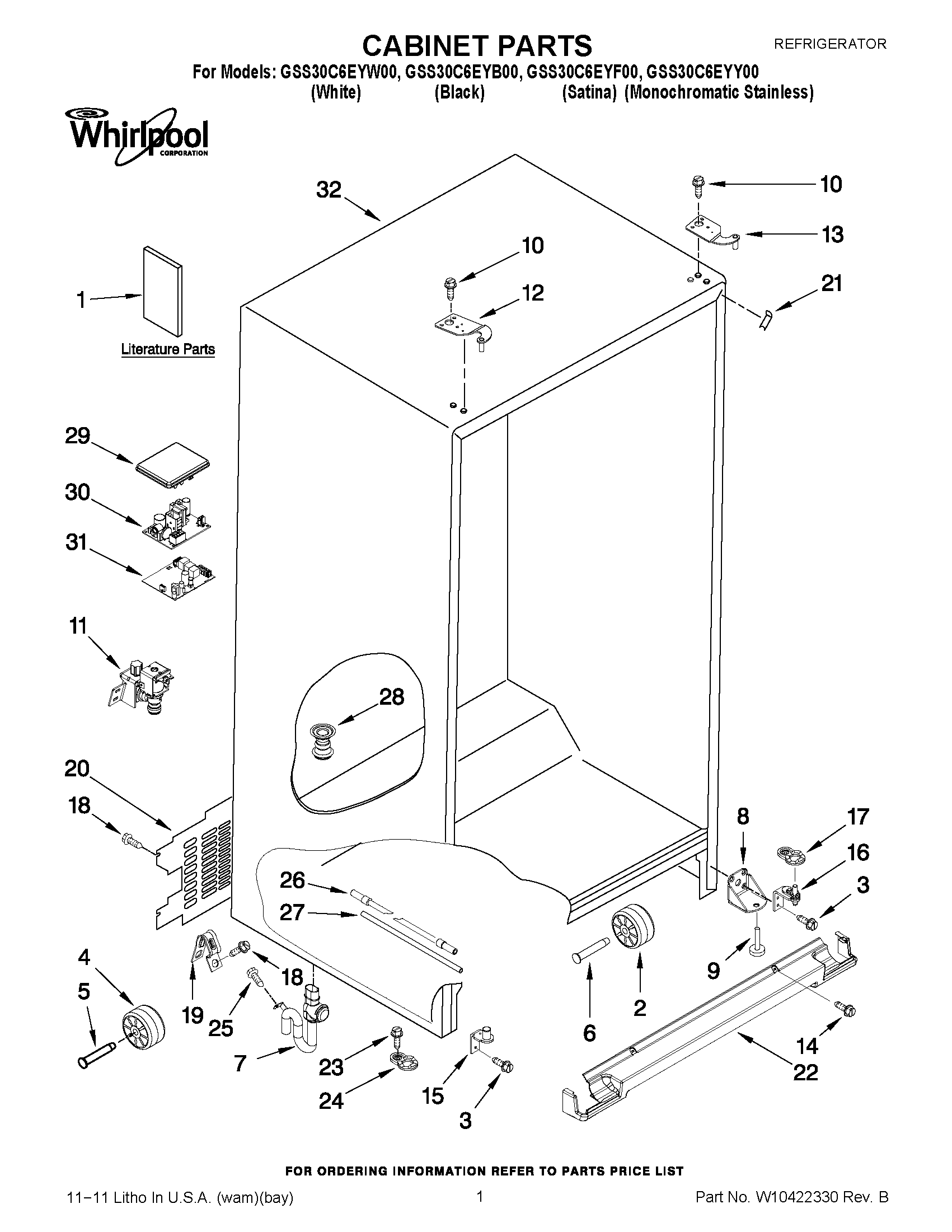

GSS30C6EYF00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL
1SERVICE & WIRING SHEET
1USE & CARE GUIDE
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6WPW10285005 Whirlpool Refrigerator Rivet
7W10379525 Whirlpool Refrigerator Extension
8W11266052 Whirlpool Refrigerator Bracket
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
10WPW10308750 Whirlpool Refrigerator Screw
11VALVE-INLT REFR
12W10901051 Whirlpool Refrigerator Door Hinge
12W10901052 Whirlpool Refrigerator Door Hinge
12W11590581 Whirlpool Refrigerator Door Hinge
13W11573587 Whirlpool Refrigerator Door Hinge
13W11568758 Whirlpool Top Hinge
13HINGE-DOOR
14WPW10142283 Whirlpool Refrigerator Screw
15W11293374 Whirlpool Refrigerator Door Hinge
15W11293373 Whirlpool Refrigerator Door Hinge
15W10249941 Whirlpool Refrigerator Door Hinge
17W10500004 Whirlpool Refrigerator Door Hinge
17W10500000 Whirlpool Refrigerator Door Hinge
17W10500001 Whirlpool Refrigerator Door Hinge
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10333887 Whirlpool Refrigerator Unit Cover
21WP12587703AP Whirlpool Refrigerator Filler
2112587703W Whirlpool Refrigerator Cover
2167003485 Whirlpool Refrigerator Corner Cover (Black)
22WPW10713158 Whirlpool Refrigerator Grille
22WPW10713153 Whirlpool Refrigerator Grille
22WPW10713160 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24W10876191 Whirlpool Refrigerator Door Cam
24W10876198 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279884 Whirlpool Water Tube
28W10370680 Whirlpool Refrigerator Fitting
29LID, HV BOX
30WPW10235414-includeCORE Whirlpool WPW10235414 Refrigerator Electronic Control Board + Core
31WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
32CABINET (NOT A SERVICEABLE PART)
