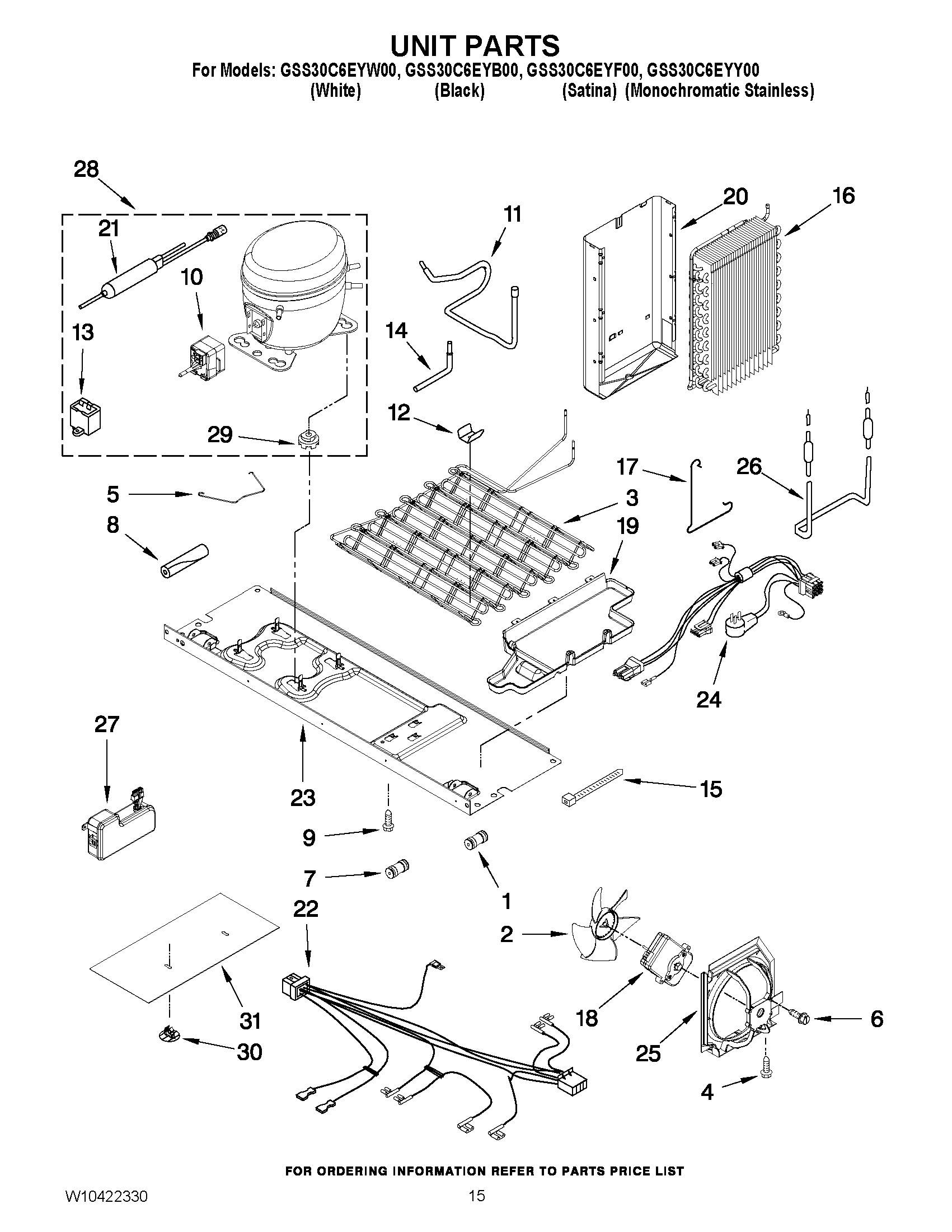

GSS30C6EYF00 09 – UNIT PARTS

GSS30C6EYF00 09 – UNIT PARTS

Written by

in

GSS30C6EYF00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	WP2300868 Whirlpool Refrigerator Fitting
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W11673437 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W10204187 Whirlpool Refrigerator Retainer
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	W10896198 Whirlpool Refrigerator Start Device
10	WPW10189190 Whirlpool Start Device
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WPW10239732 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	W10703218 Whirlpool Refrigerator Evaporator Tray
20	W10376319 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	W11676780 Whirlpool Refrigerator Wire Harness
23	W10277704 Whirlpool Refrigerator Support
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	W10837692 Whirlpool Refrigerator Heater
27	W11038857 Whirlpool Refrigerator Inverter Box
28	W10139462 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
29	WP4387558 Whirlpool Refrigerator Compressor Grommet
30	W10296661 Whirlpool Refrigerator Clip
31	W10278140 Whirlpool Refrigerator Unit Cover
