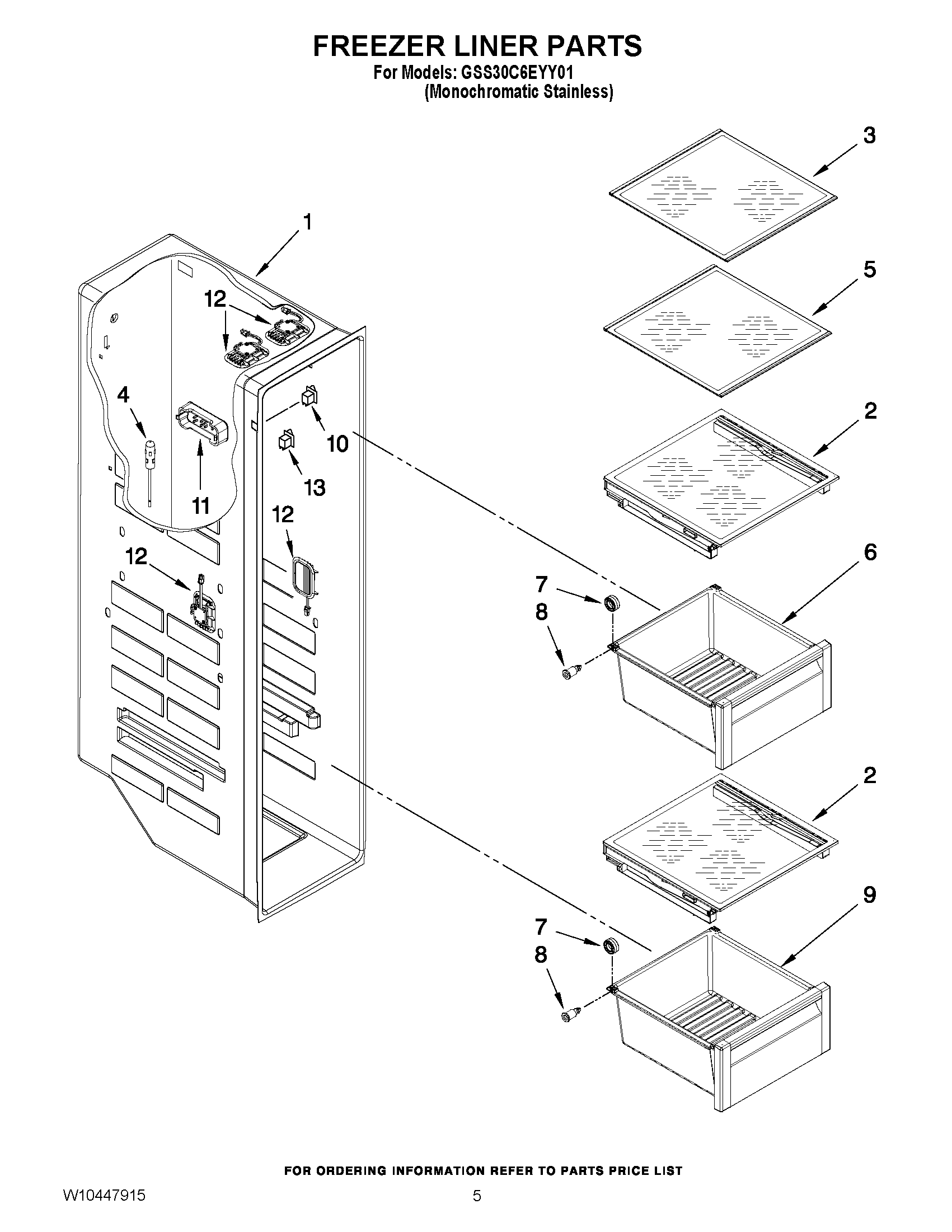

GSS30C6EYY01 04 – FREEZER LINER PARTS

GSS30C6EYY01 04 – FREEZER LINER PARTS

Written by

in

GSS30C6EYY01 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSY
3SHELF, GLASS (UPPER)
4THERMISTOR
5SHELF, GLASS (LOWER)
6WPW10322653 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9WPW10322649 Whirlpool Refrigerator Freezer Bin
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11W10425253 Whirlpool Refrigerator Cover
12MODULE
13W11123943 Whirlpool Refrigerator Switch
