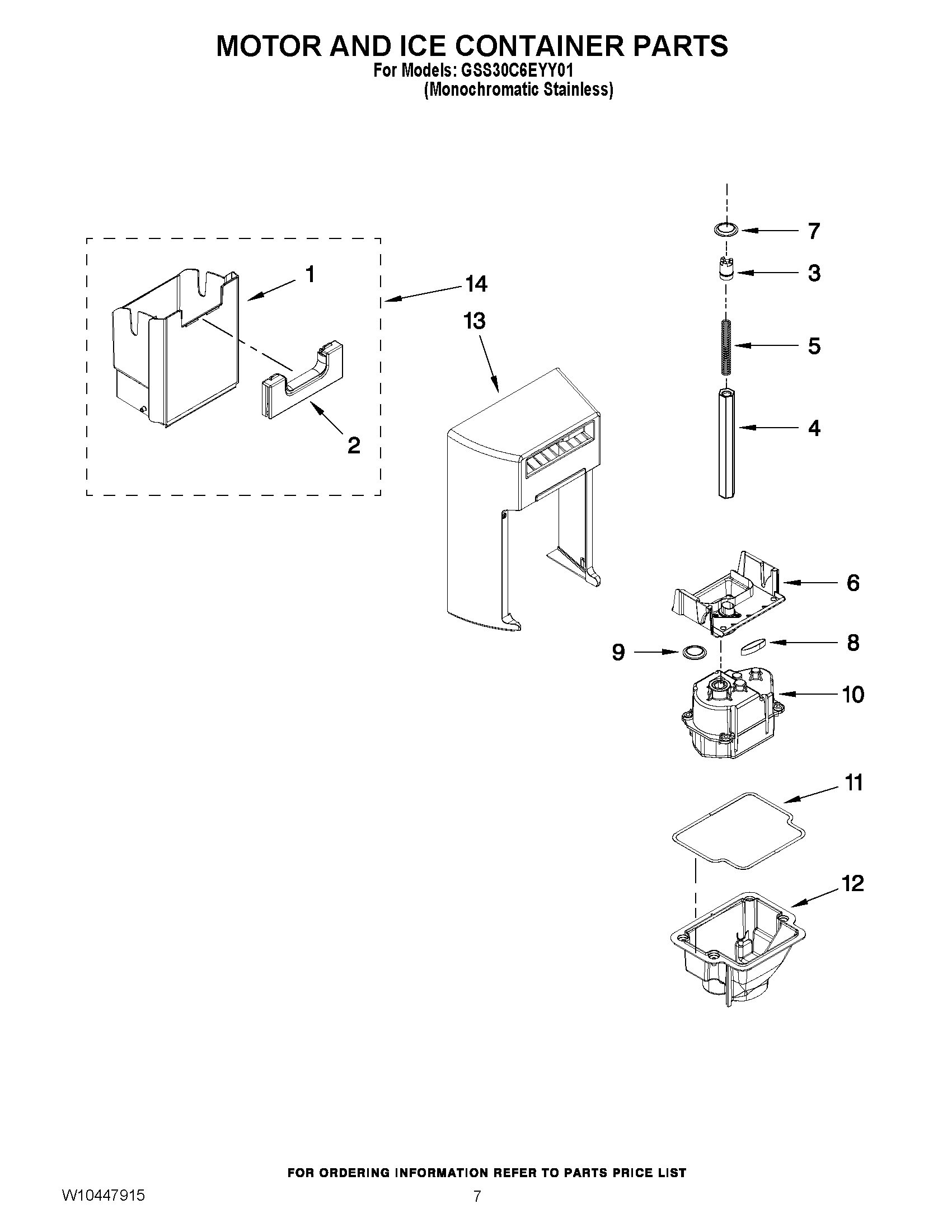

GSS30C6EYY01 05 – MOTOR AND ICE CONTAINER PARTS

GSS30C6EYY01 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

GSS30C6EYY01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1ICE BIN
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WP2198628 Whirlpool Door Seal
8WPW10291905 Whirlpool Seal
9WP2212370 Whirlpool Washer
10WP2323603 Whirlpool Refrigerator Motor
11W11678273 Whirlpool Bracket
12W10166854 Whirlpool Refrigerator Gasket
13WPW10287594 Whirlpool Refrigerator Front Cover
14W11109888 Whirlpool Refrigerator Ice Container
