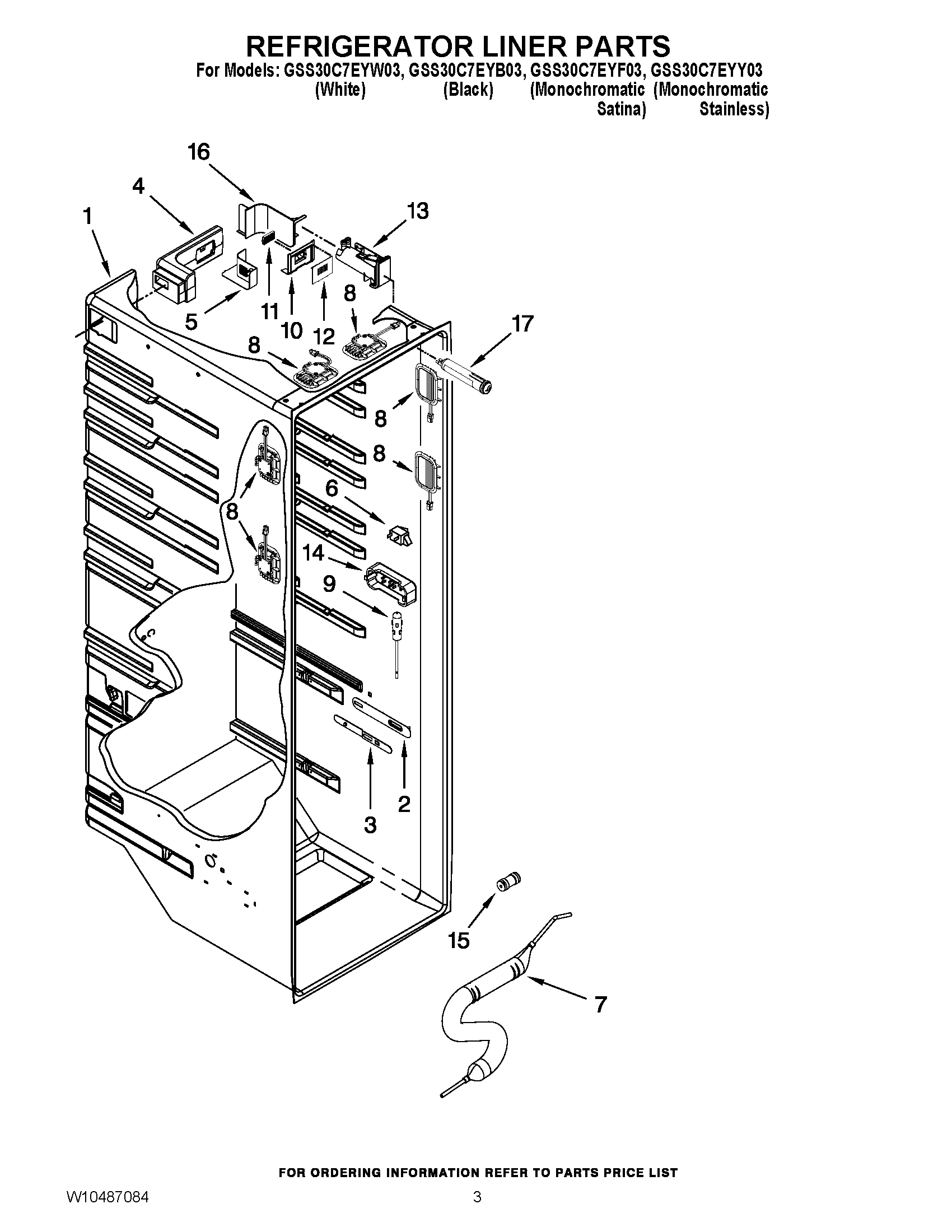

GSS30C7EYB03 02 – REFRIGERATOR LINER PARTS

GSS30C7EYB03 02 – REFRIGERATOR LINER PARTS

Written by

in

GSS30C7EYB03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10260988 Whirlpool Refrigerator Escutcheon
3SLIDE, MEAT PAN CONTROL
4W10814173 Whirlpool Refrigerator Diffuser
5W10666135 Whirlpool Refrigerator Cover
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8MODULE
9THERMISTOR
10W10342986 Whirlpool Refrigerator Cover
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12COVER, AIR FILTER
13WPW10238123 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15WPW10271543 Whirlpool Refrigerator Connector
16WPW10260405 Whirlpool Refrigerator Filter Cover
17EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
