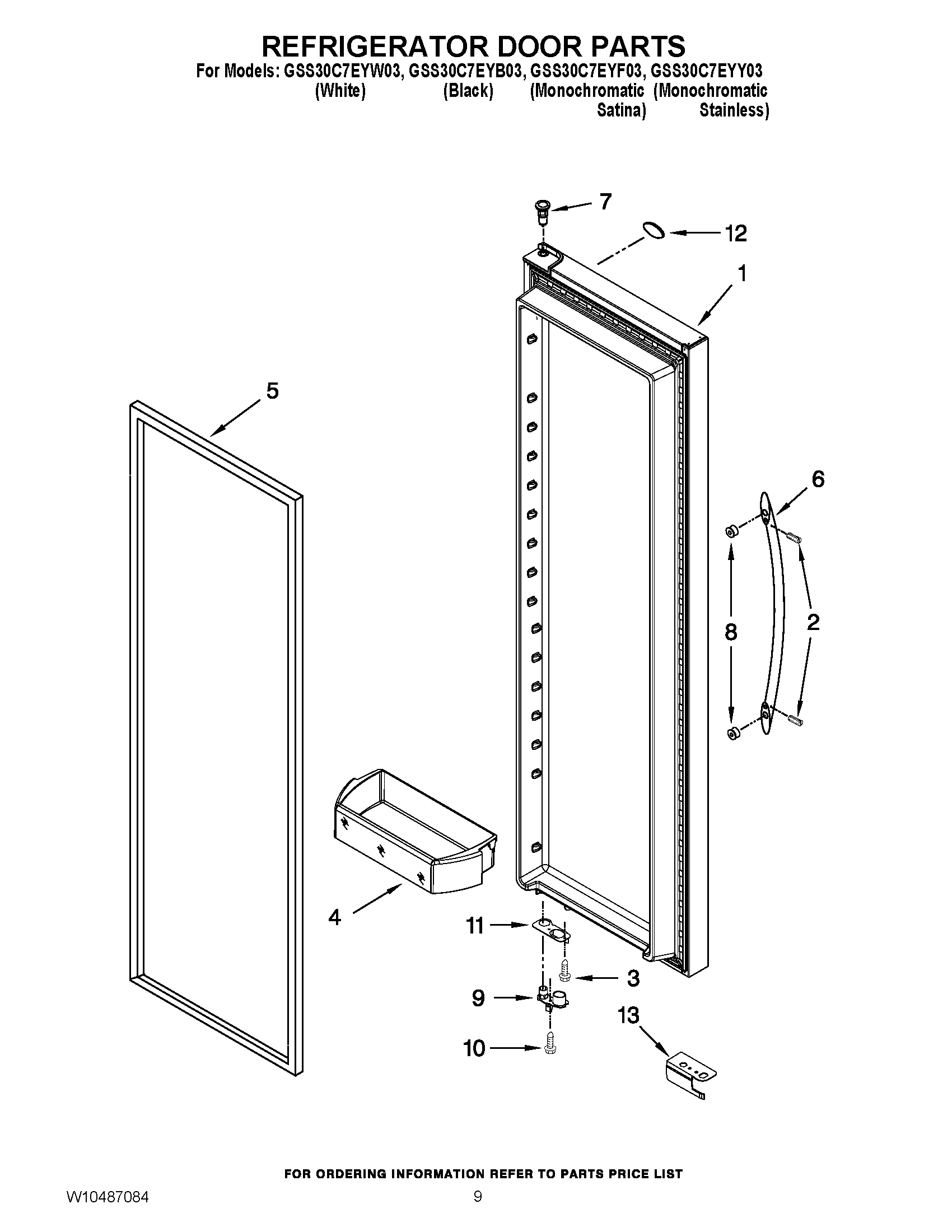

GSS30C7EYB03 06 – REFRIGERATOR DOOR PARTS

GSS30C7EYB03 06 – REFRIGERATOR DOOR PARTS

Written by

in

GSS30C7EYB03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (SATINA)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS STEEL)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1LW10261181 Whirlpool Refrigerator Door FIP WH
2SCREW
2WPW10010150 Whirlpool Refrigerator Screw
3SCREW
4WPW10335220 Whirlpool Refrigerator Cantilever Bin
5WPW10249912 Whirlpool Refrigerator FIP Gasket
5W10355582 Whirlpool Refrigerator Door Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
6WPW10268057 Whirlpool Refrigerator Handle
6WPW10268056 Whirlpool Refrigerator Door Handle
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9WPW10257201 Whirlpool Door Closing Cam
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12Nameplate
13W10257216 Whirlpool Refrigerator Wire Cover
13W10789144 Whirlpool Refrigerator Wire Cover
13W11661847 Whirlpool Wire Cover
