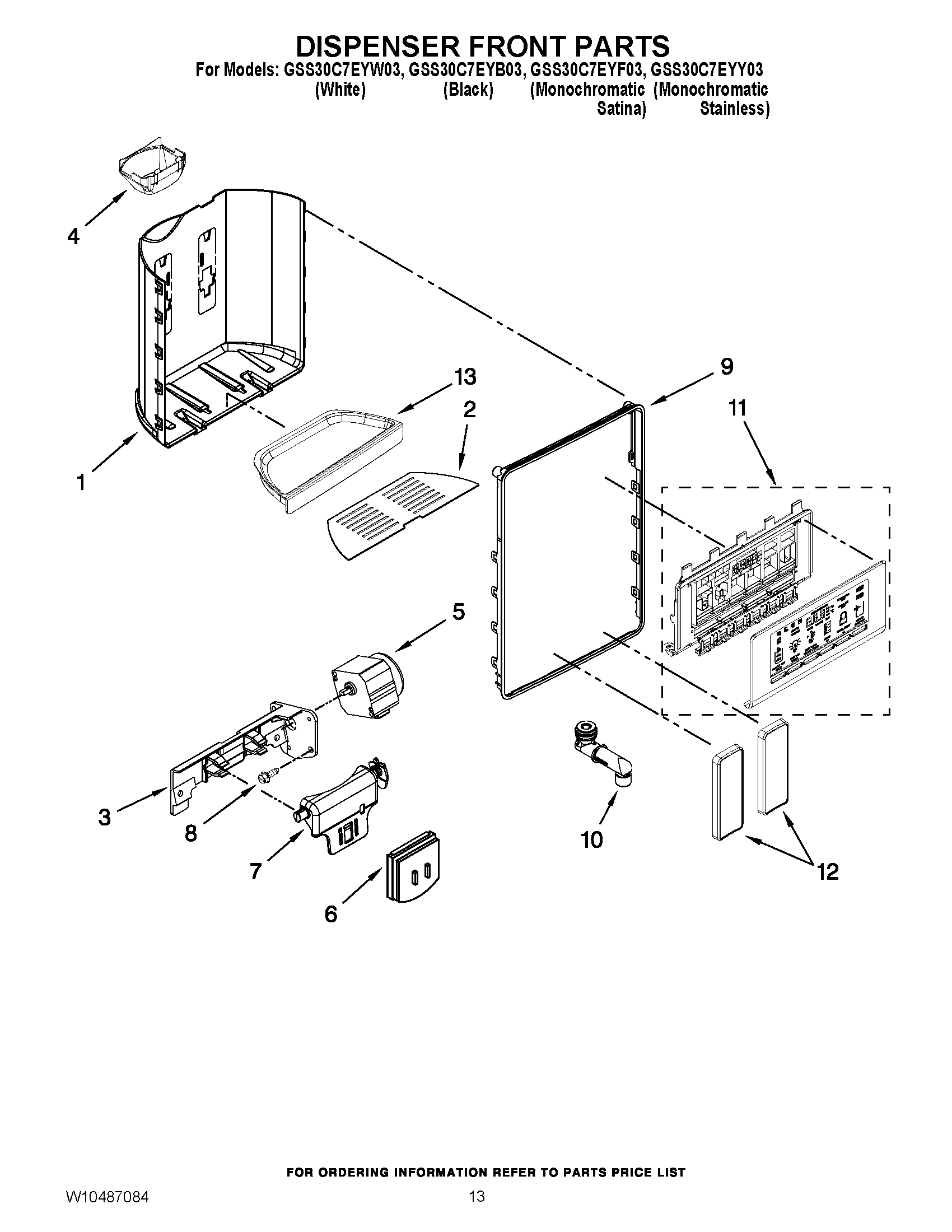

GSS30C7EYB03 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10276209 Whirlpool Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	WPW10493172 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	W10448931 Whirlpool Refrigerator Dispenser Trim
9	W10276265 Whirlpool Refrigerator Dispense Trim
10	WP2305235 Whirlpool Refrigerator Spigot
11	ELECTRONIC CONTROL ASSY (SILVER MIRROR)
11	ELECTRONIC CONTROL ASSY (STORM CLOUD)
12	PAD, ICE AND WATER (WHITE)
12	W10370577 Whirlpool Refrigerator Pad
12	W11624941 Whirlpool Refrigerator Pad
13	W10254258 Whirlpool Refrigerator Drip Tray
13	W10254259 Whirlpool Refrigerator Drip Tray
13	W10276225 Whirlpool Refrigerator Drip Tray
