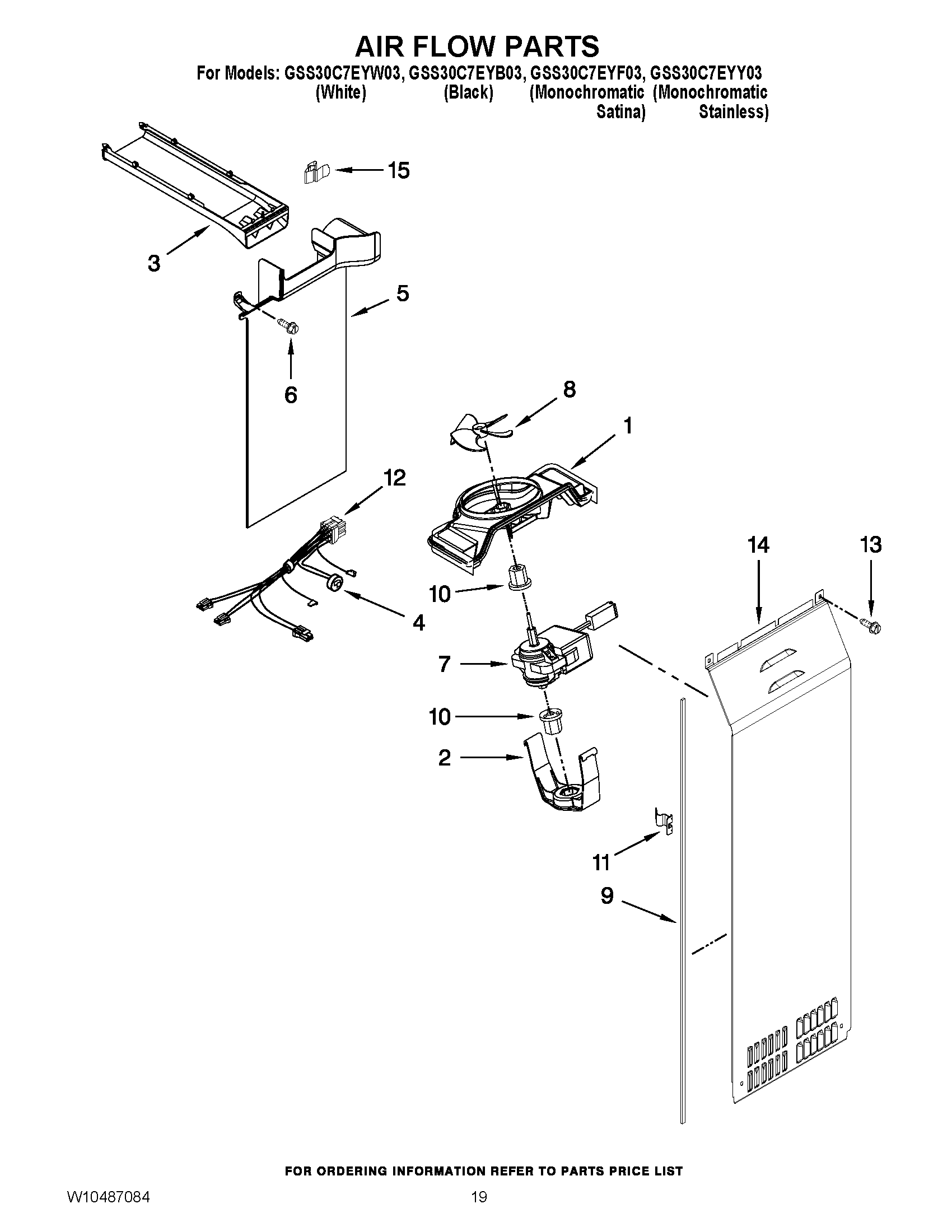

GSS30C7EYB03 11 – AIR FLOW PARTS

GSS30C7EYB03 11 – AIR FLOW PARTS

Written by

in

GSS30C7EYB03 11 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3W11040868 Whirlpool Refrigerator Air Duct
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5DUCT-AIR
6WP488488 Whirlpool Refrigerator Screw
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11W11232019 Whirlpool Refrigerator Clip
12W11566475 Whirlpool Refrigerator Wire Harness
13WP693995 Whirlpool Screw
14WPW10388269 Whirlpool Refrigerator Evaporator Cover
15W10331728 Whirlpool Refrigerator Clip
