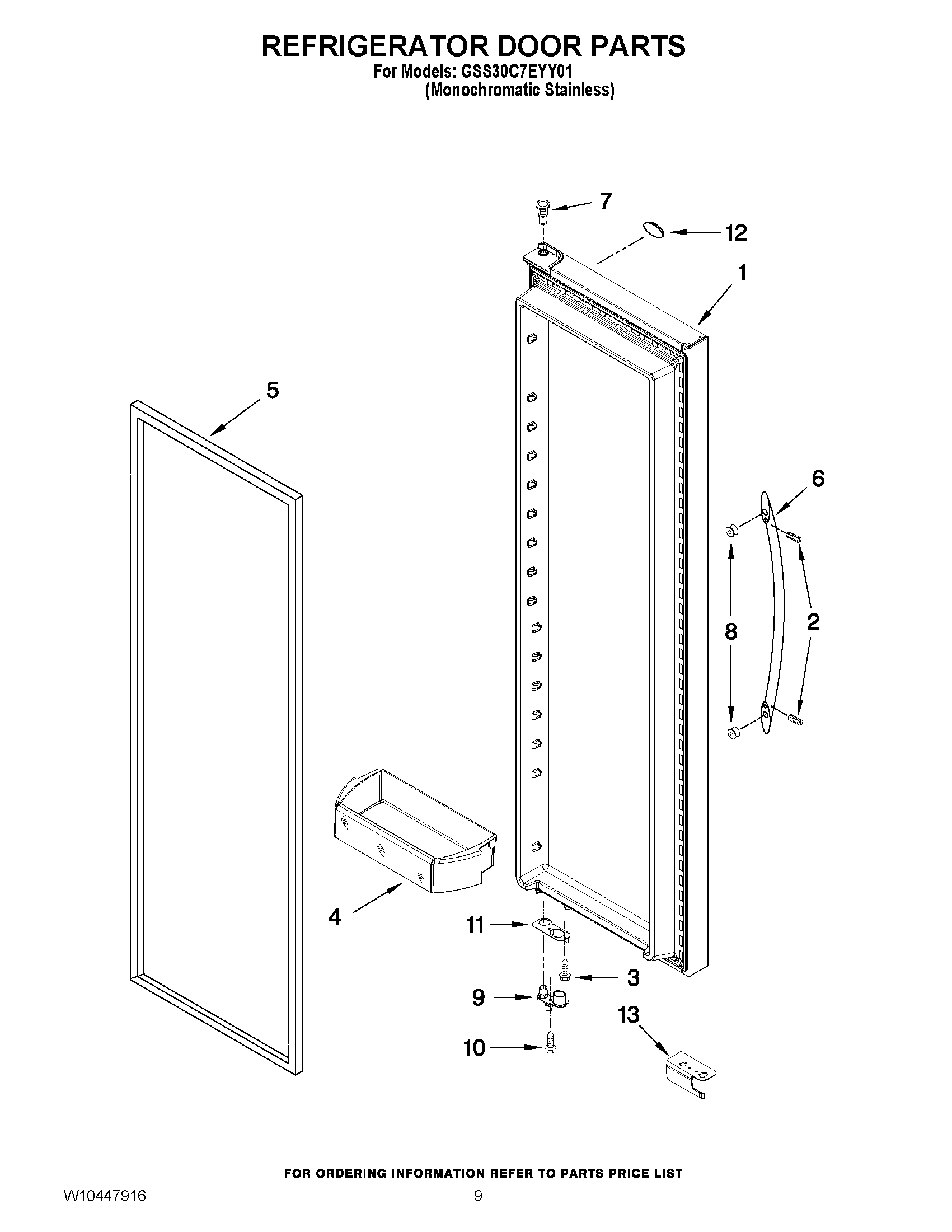

GSS30C7EYY01 06 – REFRIGERATOR DOOR PARTS

GSS30C7EYY01 06 – REFRIGERATOR DOOR PARTS

Written by

in

GSS30C7EYY01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS STEEL)
2SCREW
3SCREW
4WPW10335220 Whirlpool Refrigerator Cantilever Bin
5W10355582 Whirlpool Refrigerator Door Gasket
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12Nameplate
13W11661847 Whirlpool Wire Cover
