GST20DBMBCC SEALED SYSTEM & MOTHER BOARD

GST20DBMBCC SEALED SYSTEM & MOTHER BOARD

Written by

in

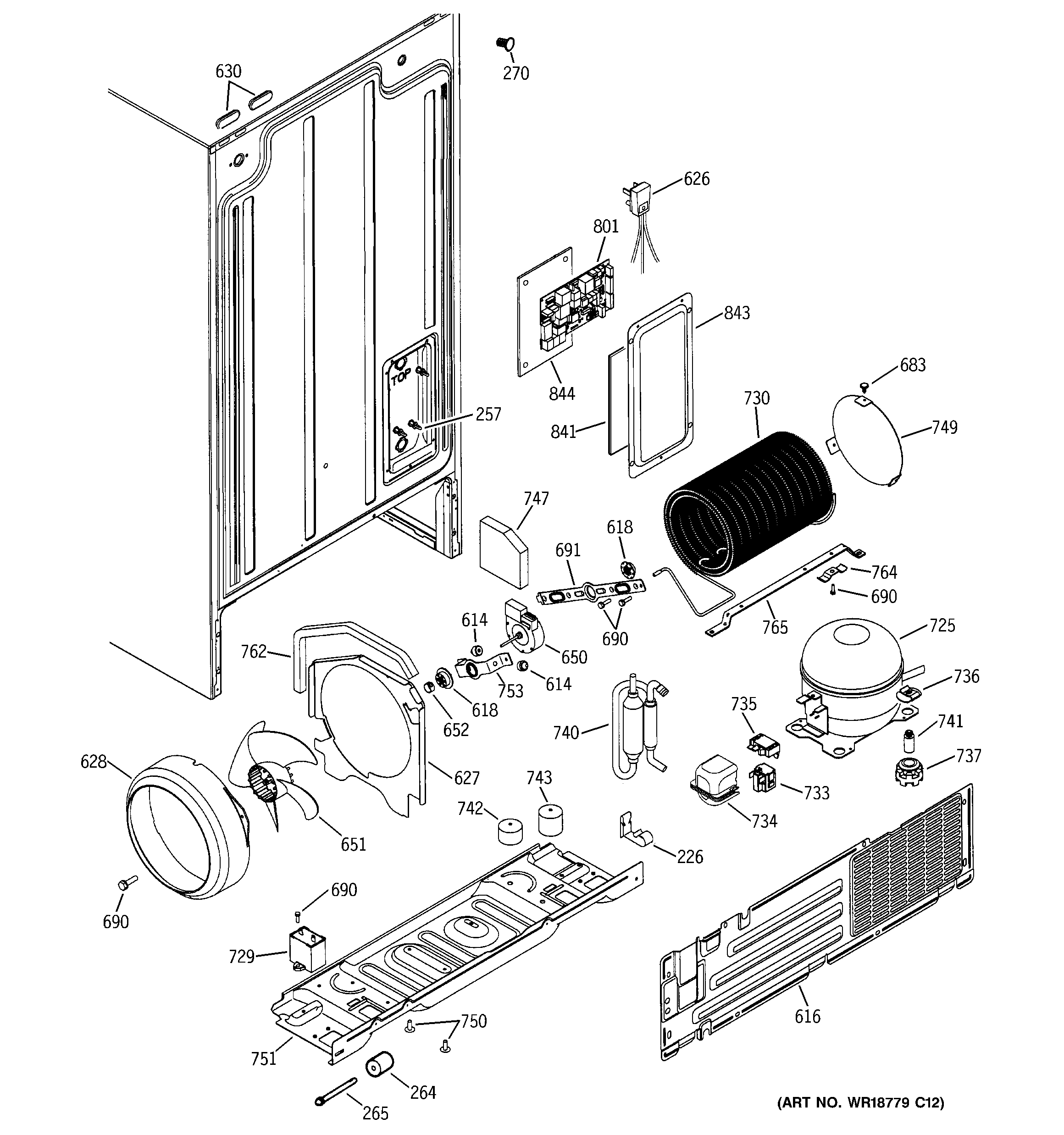

GST20DBMBCC SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
226WR02X10558 GE Refrigerator Drain Tube Clip
257GEN WR02X10159
264WR02X10695 GE Refrigerator Wheel
265GEN WR01X10039
270GEN WR02X10974
614BUMPER
616GEN WR82X10075
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR17X35527 GE Refrigerator Condenser Fan Shroud
630WR2X4097 GE Button Plug
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X10562 GE Push Fastener
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10226 GE Refrigerator Compressor Kit EGYS90
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X26749 GE Refrigerator Start Relay
734GEN WR02X10556
735GEN WR08X10026
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
743GEN WR02X10588
747GEN WR82X10073
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10773
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
841GEN WR02X10599
843GEN WR17X10700
844GEN WR02X10569
