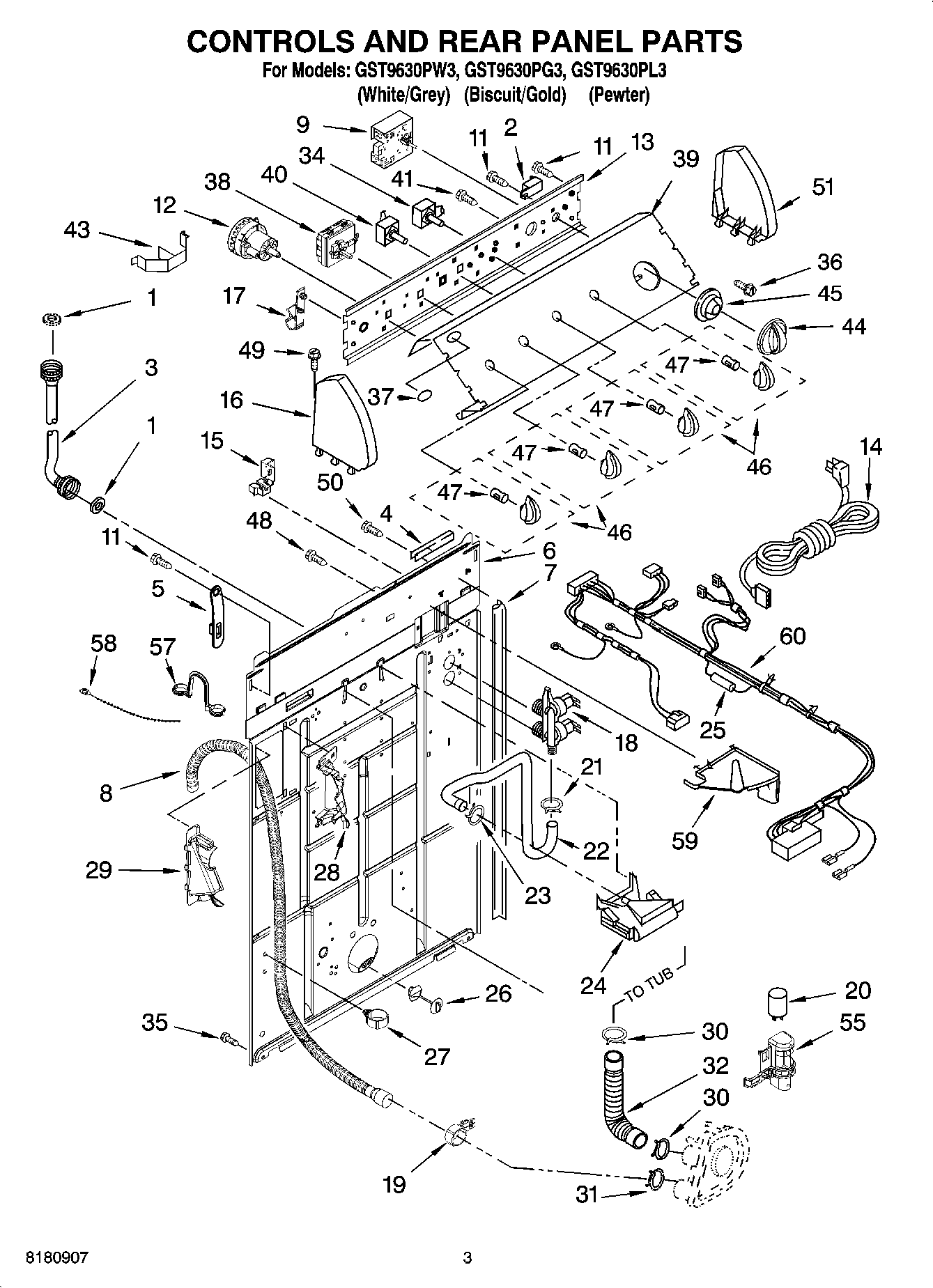

GST9630PG3 02 – CONTROLS AND REAR PANEL PARTS

GST9630PG3 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

GST9630PG3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4Edge Protector
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3955765 Whirlpool Timer Assembly
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (Pewter)
16Cap, End (L.H.) (BIscuit)
17Retainer, Harness
18WP3979346 Whirlpool Water Inlet Valve
198541668 Whirlpool Washer Clamp
20WP8572720 Whirlpool Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Fuse (In Harness)
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28(Left Half)
29WPW10096921 Whirlpool Hose
29(Right Half)
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34Switch, Rotary
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
37WPL 8533990
38Switch, Water Temperature (ATC)
39Panel, Console (Includes Illus. 37) (Silver)
39Panel, Console (Includes Illus. 37) (Gold)
40W10168264 Whirlpool Cycle Switch
413400073 Whirlpool Screw
43Clip, Harness & Pressure Hose
44WPL 8544946
44Kn
45WP8544947 Whirlpool Dial
45Dial, Timer (Biscuit)
46WPL 8544938
46WPL 8544937
47WP8536939 Whirlpool Spring Clip
48WP9740848 Whirlpool Dishwasher Screw
49WP388326 Whirlpool Screw
50WP3351614 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
51WPL 3956023
55Clip, Capacitor
57WP8577378 Whirlpool Retainer
58WPW10339879 Whirlpool Wire Tie
59WPL 8539874
60WPL 3957254
60Miscellaneous Parts Bag
60WPL ARI151292A
