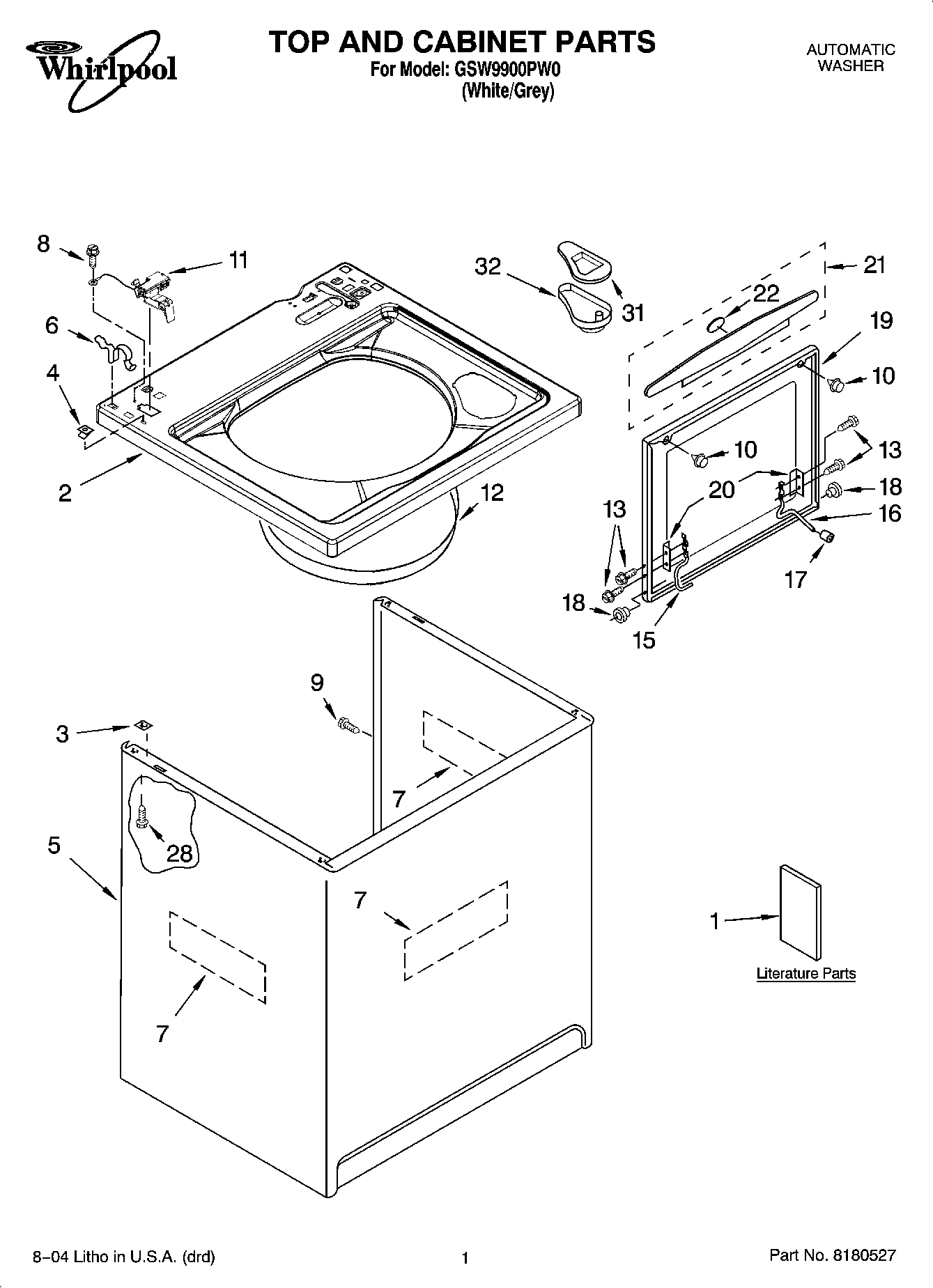

GSW9900PW0 01 – TOP AND CABINET PARTS

GSW9900PW0 01 – TOP AND CABINET PARTS

Written by

in

GSW9900PW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Energy Guide
1Feature Sheet
1Manual, Washer Do-It-Yourself
1Installation Instructions
1Use & Care Guide
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP8271956 Whirlpool Shield
13SCREW
15Hinge, Lid (L.H.)
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18Bearing, Lid Hinge (2)
19Lid (White)
20WP21097 Whirlpool Pad
21Handle, Lid (Pewter)
22Insert, Handle
28WP3390631 Whirlpool Screw
31Cover, Dispenser
32Dispenser, Bleach
