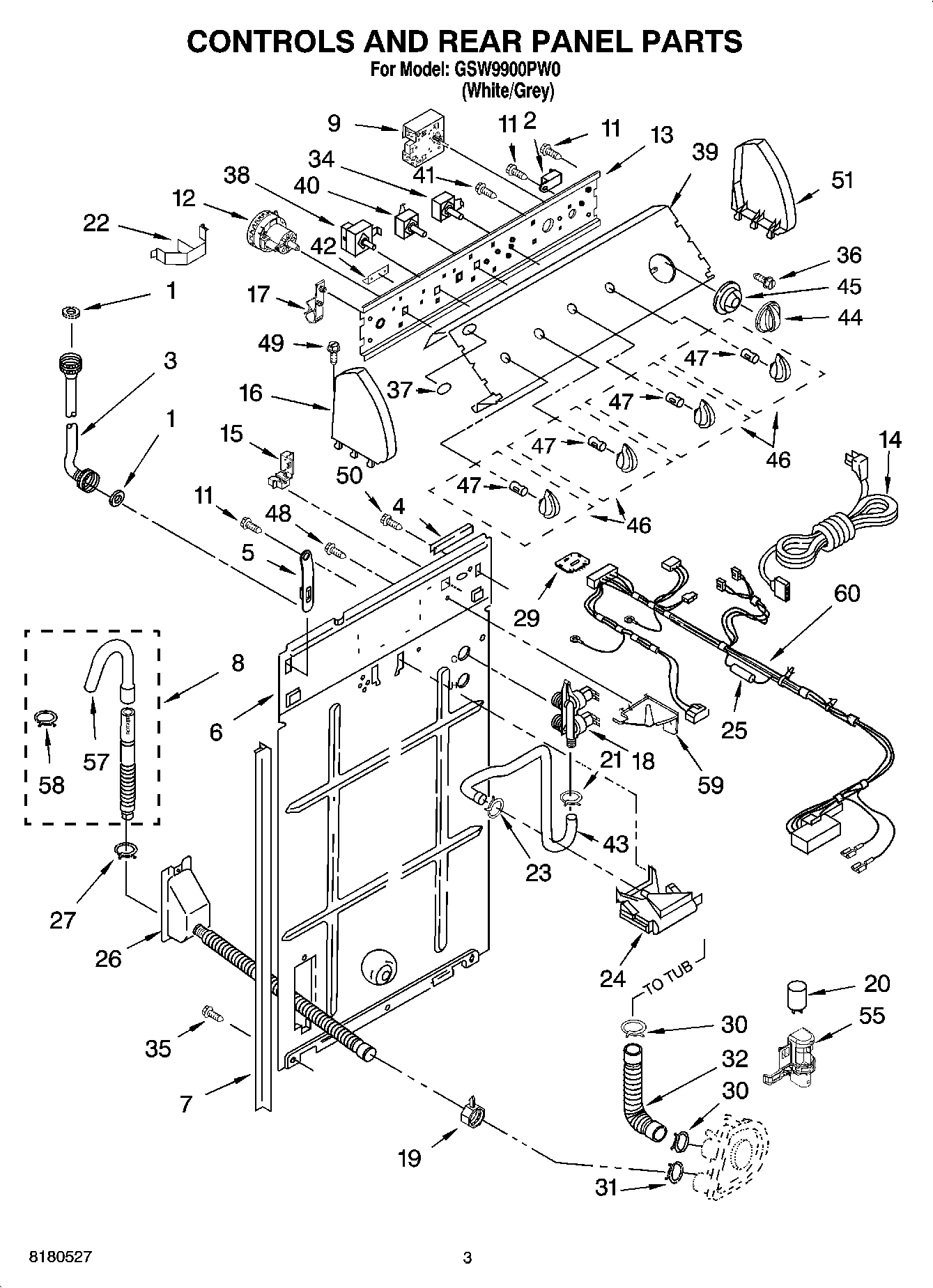

GSW9900PW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
4	Edge Protector
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Retainer, Harness
18	WP3979346 Whirlpool Water Inlet Valve
19	Clamp, Hose
20	WP8572720 Whirlpool Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Fuse (In Harness)
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
29	Control, ATC
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	Switch, Rotary
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	WPL 8533990
38	Switch, Water Temperature
39	Panel, Console (Includes Item 37)
40	WPW10168257 Whirlpool Cycle Switch
41	3400073 Whirlpool Screw
42	Shield, ATC
43	HOSE
44	Kn
45	WP8544947 Whirlpool Dial
46	WPL 8544937
47	WP8536939 Whirlpool Spring Clip
48	WP9740848 Whirlpool Dishwasher Screw
49	WP388326 Whirlpool Screw
50	WP3351614 Whirlpool Screw
51	W10820038 Whirlpool Endcap
55	Clip, Capacitor
57	WP3357027 Whirlpool Nozzle Assembly
58	WP3357331 Whirlpool Clamp
59	WPL 8539874
60	WPL 3957162
