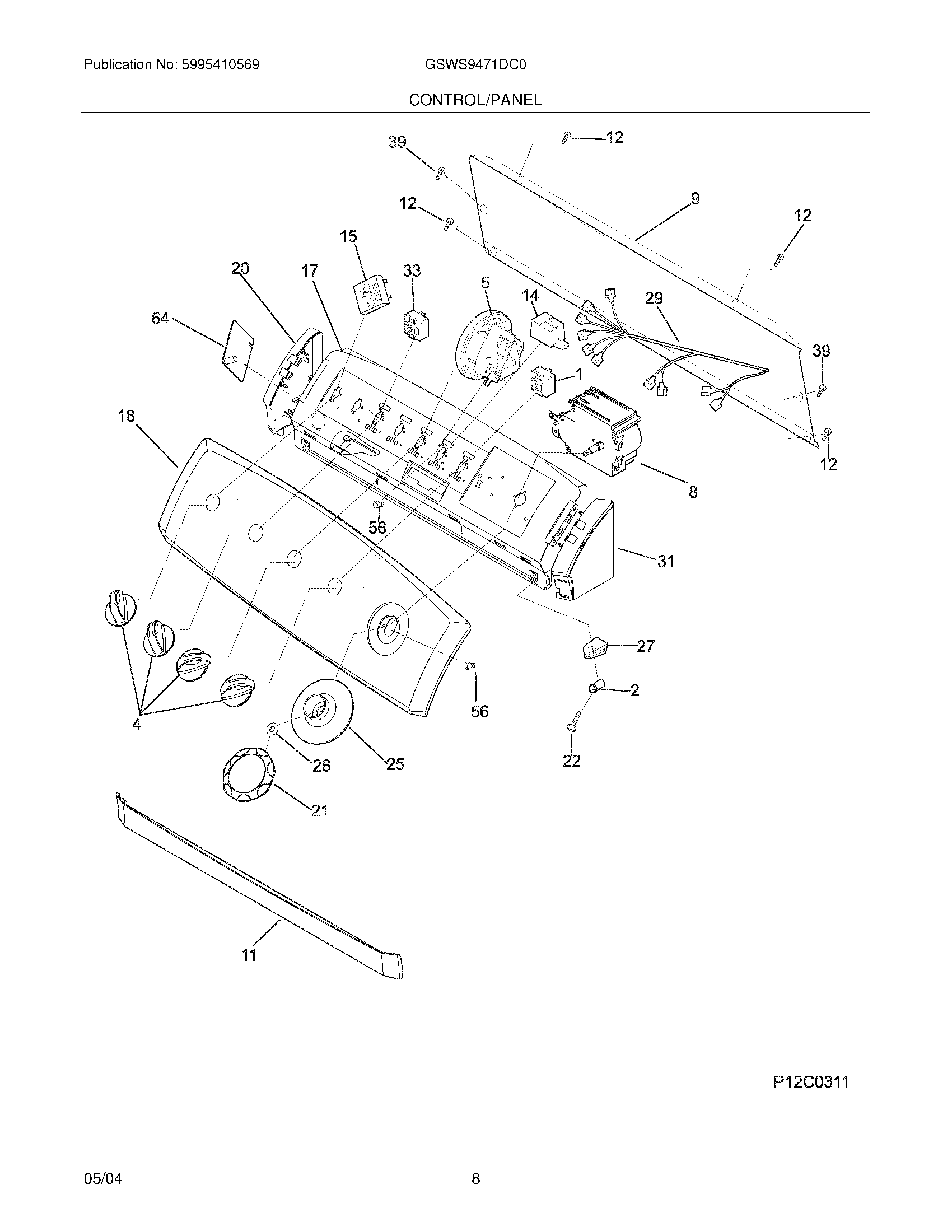

GSWS9471DC0 09 – CONTROL PANEL

Products

Position	Product
NI	WCI 134400100
1	WCI 131120400
2	WCI 134096100
4	WCI 134034902
5	134421000 Frigidaire Pressure Switch P-1
8	WCI 134173100
9	Panel,backsheet ,console
11	WCI 134019920
12	131168200 Frigidaire Dryer Screw
14	WCI 134086900
15	WCI 134057700
17	WCI 131993040
18	WCI 134400300
20	WCI 134019621
21	WCI 134034802
22	WCI 131266330
25	WCI 134034702
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 134286900
31	WCI 134019620
33	WCI 134048300
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
64	WCI 134224300
