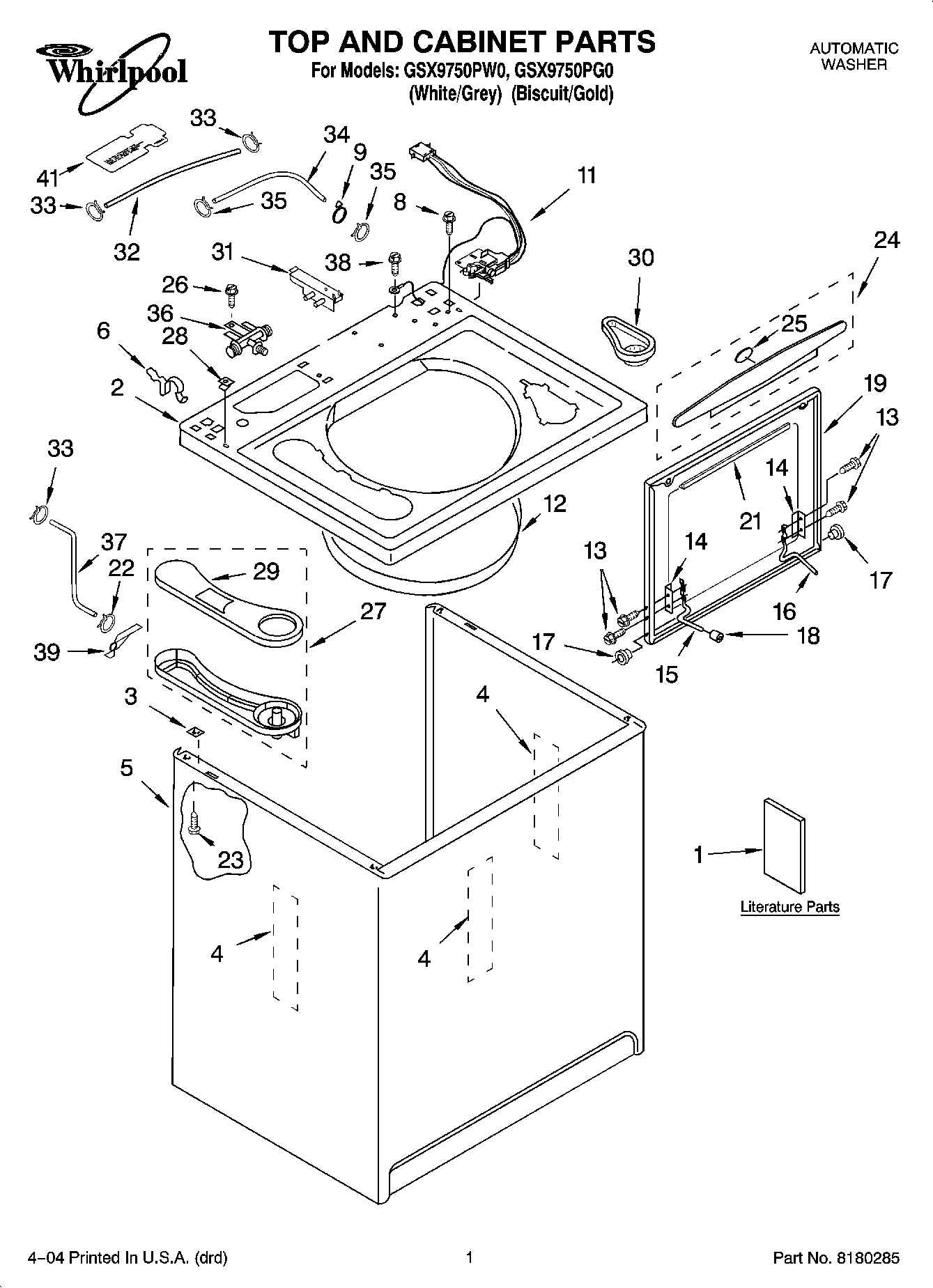

GSX9750PG0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Energy Guide)
1	Literature Parts (Installation Instructions)
1	Manual, (Washer) Do-It-Yourself
1	Literature Parts (Wiring Diagram)
2	Top (White)
2	Top (Biscuit)
3	WP62750 Whirlpool Spacer
4	Cabinet – Sound Damper
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
8	Screw, Lid Switch (2)
9	8559320 Whirlpool Clip
11	WP8054980 Whirlpool Lid Switch Assembly
12	WP8271956 Whirlpool Shield
13	SCREW
14	WP21097 Whirlpool Pad
15	Hinge, Lid (L.H.)
16	Hinge, Lid (R.H.)
17	Bearing, Lid Hinge (2)
18	Bumper, Lid Hinge
19	Lid (Biscuit)
19	Lid (White)
21	Seal, Lid
23	WP3390631 Whirlpool Screw
24	Handle, Lid (Sage)
24	Handle, Lid (Pewter)
25	Insert, Handle
26	WP308685 Whirlpool Microwave Screw
27	WP8055237 Whirlpool Dispenser
28	WP357213 Whirlpool Hinge Stopper
29	Cover, Dispenser
30	Dispenser, Detergent
31	Connector, 2-Port
32	Hose, Fabric Softener
34	Hose, Detergent
35	WP596669 Whirlpool Hose Clamp
36	Connector, Venturi
37	WP8283537 Whirlpool Hose Assembly
38	3400073 Whirlpool Screw
39	WPL 8271943
41	Cover, Access
