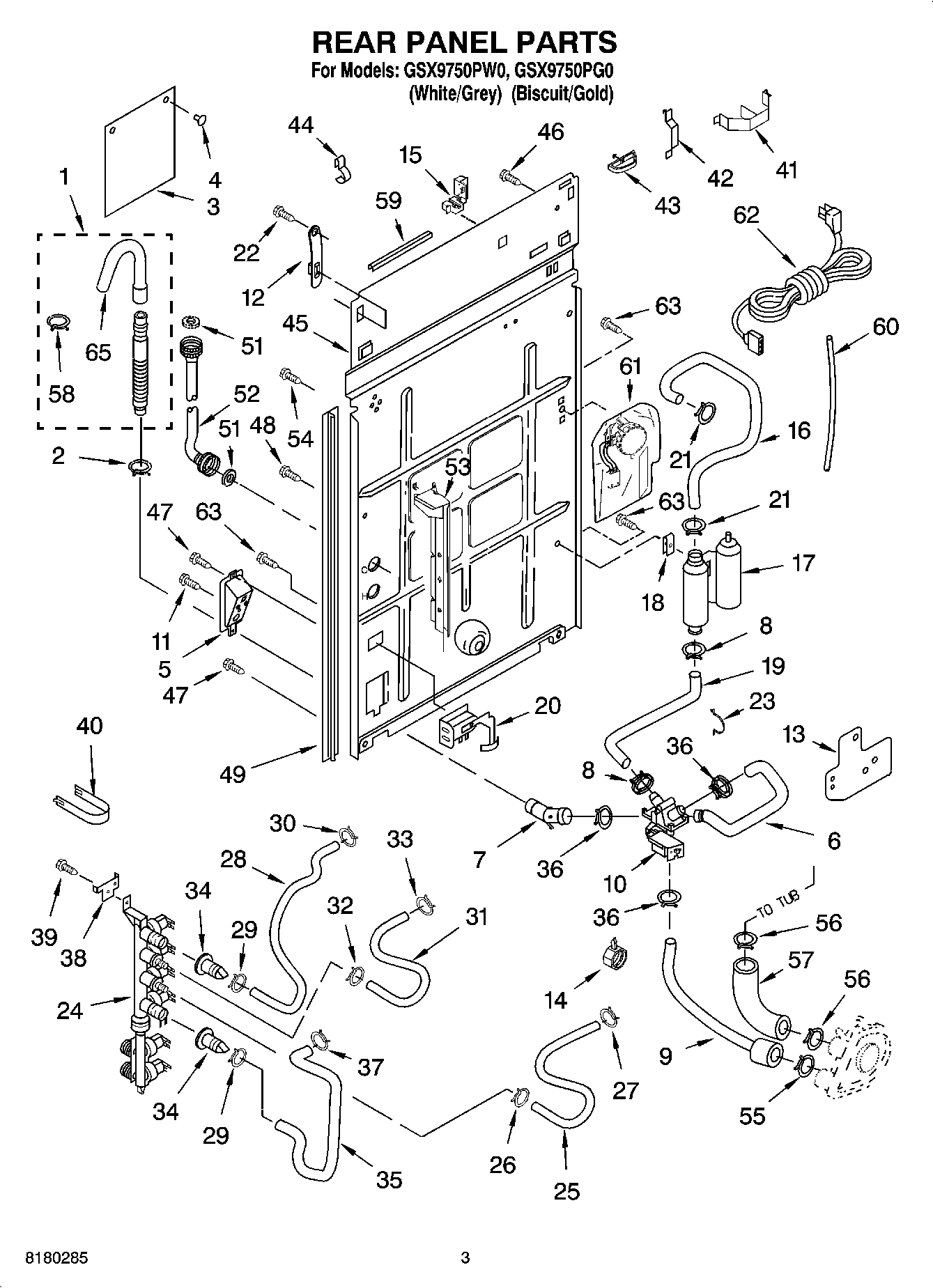

GSX9750PG0 02 – REAR PANEL PARTSadmin2025-04-26T11:38:45+00:00GSX9750PG0 02 – REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | 285666 Whirlpool Drain Hose 10' |
| 1 | 285702 Whirlpool Extensions |
| 1 | 285664 Whirlpool Drain Hose |
| 2 | WP356138 Whirlpool Hose Clamp |
| 3 | Drape, Rear Panel |
| 4 | Clip, Pine Tree |
| 5 | Bracket, Valve Mounting |
| 6 | Hose, 2-Way Valve To Drain |
| 7 | Connector, Hose |
| 8 | WP285655 Whirlpool Hose Clamp |
| 9 | Hose, Pump to 2-Way Valve |
| 10 | Valve, Two-Way |
| 11 | Screw (2) |
| 12 | WP8568314 Whirlpool Strap |
| 13 | Shield, Valve |
| 14 | Clamp, Hose |
| 15 | Strain Relief, Power Cord |
| 16 | Hose, Airdome |
| 17 | Airdome Assembly |
| 18 | Clip (4) |
| 19 | Hose, 2-Way Valve to Airdome |
| 20 | Switch, Kickout |
| 21 | 3363365 Whirlpool Clamp |
| 22 | WP90767 Whirlpool Screw |
| 23 | Clip, Hose (2) (Recirculating) |
| 24 | Valve, Inlet |
| 25 | Hose, Detergent |
| 26 | WP596669 Whirlpool Hose Clamp |
| 28 | Hose, Bleach |
| 31 | Hose, Fabric Softener |
| 34 | WPL 8055306 |
| 35 | Hose, Fresh Fill |
| 38 | Bracket, Valve |
| 39 | WP9740848 Whirlpool Dishwasher Screw |
| 40 | Restraint, Hose |
| 41 | Clip, Harness & Pressure Hose |
| 42 | Clip, Harness |
| 43 | Clip, Harness |
| 44 | 8528351 Whirlpool Clip |
| 45 | Panel, Rear |
| 46 | WP3351614 Whirlpool Screw |
| 47 | WP3390631 Whirlpool Screw |
| 48 | WP693995 Whirlpool Screw |
| 49 | WP62747 Whirlpool Pad |
| 51 | WP16123 Whirlpool Washer |
| 52 | WP89503 Whirlpool Washer Fill Hose |
| 53 | Shield, Upper Valve |
| 56 | WP616099 Whirlpool Clamp |
| 57 | WPL 8055063 |
| 58 | WP3357331 Whirlpool Clamp |
| 59 | Edge Protector |
| 60 | WP353244 Whirlpool Hose |
| 61 | WPL 8545900 |
| 62 | Cord, Power (Includes Illus. 15) |
| 63 | WP273556 Whirlpool Screw |
| 65 | WP3357027 Whirlpool Nozzle Assembly |
