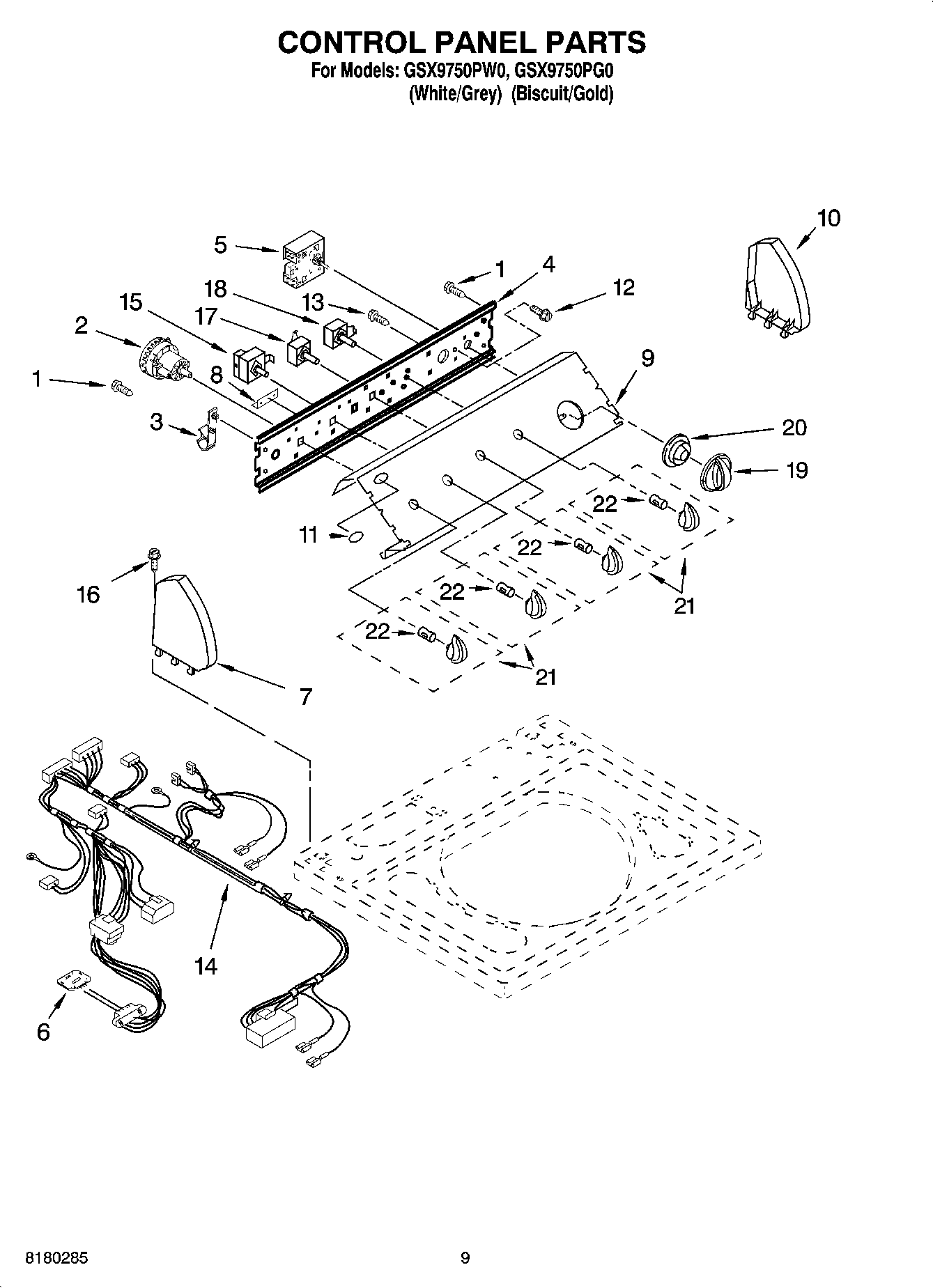

GSX9750PG0 06 – CONTROL PANEL PARTSadmin2025-04-26T11:38:10+00:00GSX9750PG0 06 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | WP90767 Whirlpool Screw |
| 2 | W10339326 Whirlpool Washer Water Level Switch |
| 3 | Retainer, Harness |
| 4 | Bracket, Control |
| 5 | Timer, Control (60 Hz.) (Motor Not A Service Part) |
| 6 | Control, ATC |
| 7 | Cap, End (L.H.) (BIscuit) |
| 8 | Shield, ATC |
| 9 | Panel, Console (Includes Item 11) (Silver) |
| 9 | Panel, Console (Includes Item 11) (Gold) |
| 10 | WPL 8271362 |
| 10 | W10820038 Whirlpool Endcap |
| 11 | WPL 8533990 |
| 12 | WP3400818 Whirlpool Screw |
| 13 | 3400073 Whirlpool Screw |
| 14 | Harness, Wiring (For Detail, See Pages 11 & 12) |
| 15 | Switch, Water Temperature |
| 16 | WP388326 Whirlpool Screw |
| 17 | W10851055 Whirlpool Cycle Switch |
| 18 | WP3954573 Whirlpool Cycle Switch |
| 19 | Kn |
| 19 | WPL 8544946 |
| 20 | Dial, Timer (Biscuit) |
| 20 | WP8544947 Whirlpool Dial |
| 21 | WPL 8544938 |
| 21 | WPL 8544937 |
| 22 | WP8536939 Whirlpool Spring Clip |
