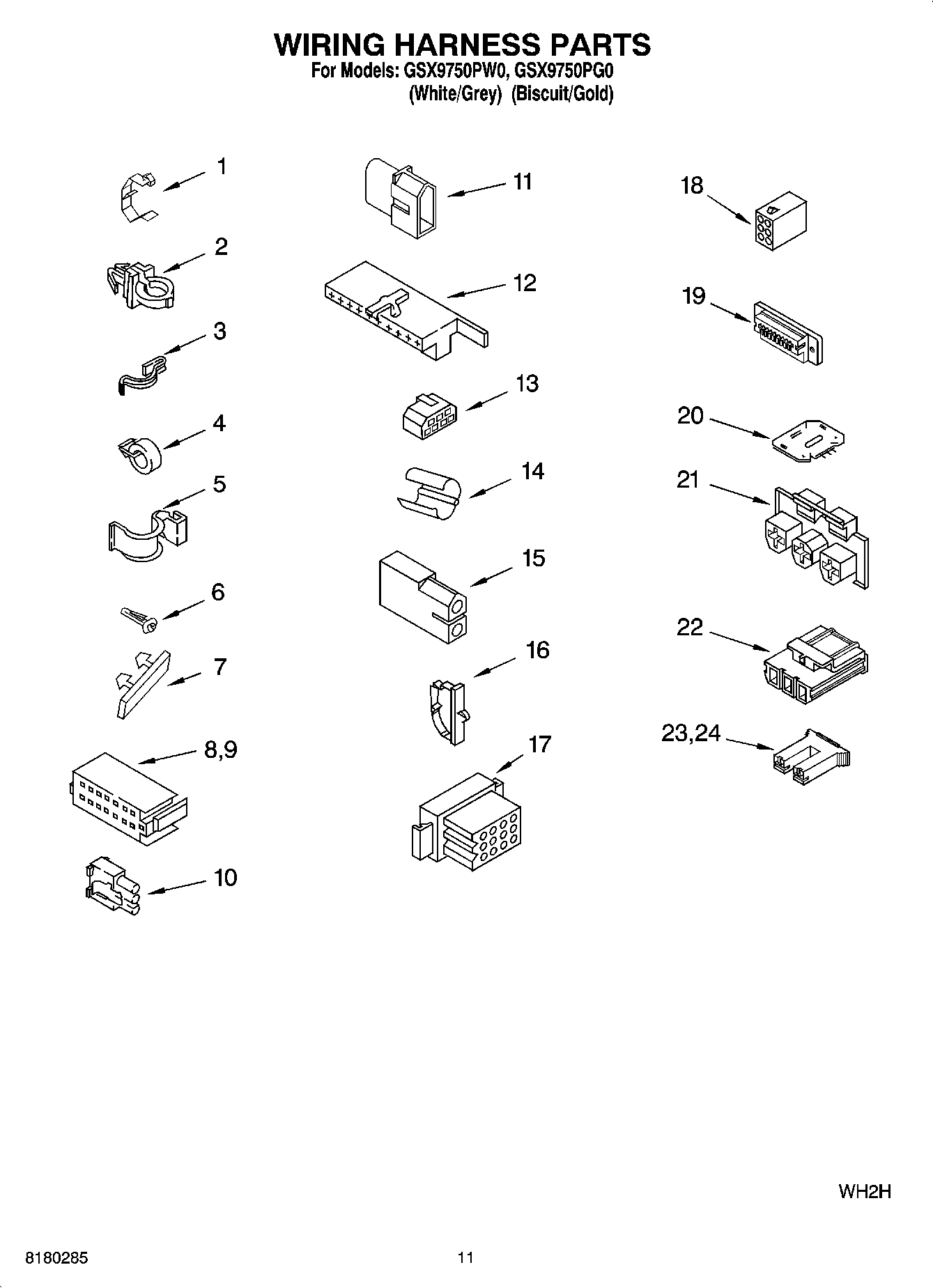

GSX9750PG0 07 – WIRING HARNESS PARTS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	WP389379 Whirlpool Retainer
8	Timer, Block Disconnect (White)
9	W10876590 Whirlpool Connector
10	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
11	353424 Whirlpool Connector
12	WP62505 Whirlpool Connector
13	Block, Disconnect
14	Protector, Harness
15	Receptacle, Latching (2-Way) (Uses Terminal 94614)
16	Clip, Harness
17	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
18	Receptacle, (6-Way) (Use Term. 94613)
19	Connector, Etc
20	E.T.C. Control
21	WP2172937 Whirlpool Connector
22	WP3360056 Whirlpool Connector
23	3354925 Whirlpool Connector
24	WPL 3354926
