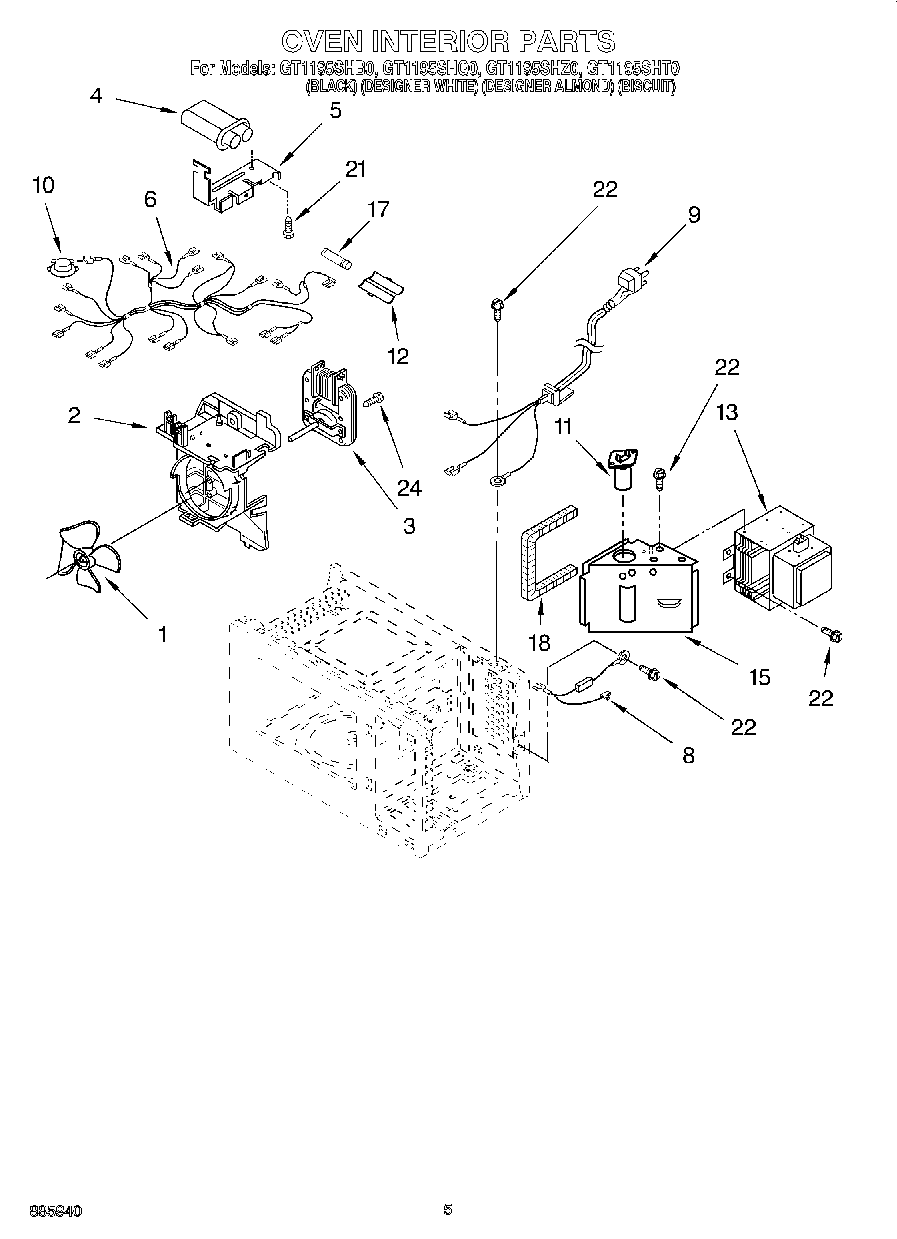

GT1195SHB0 05 – OVEN INTERIOR

GT1195SHB0 05 – OVEN INTERIOR

Written by

in

GT1195SHB0 05 – OVEN INTERIOR

Products

PositionProduct
18184292 Whirlpool Microwave Fan Blade
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5Bracket, H.V.C.
6Leadwire Assembly
8WP8205489 Whirlpool Microwave Voltage Wire
9Power Cord
10Thermostat
11Lamp, Baseless
12Fuse Cap
13W10859575 Whirlpool Magnetron
15Duct, Air
17WP8183507 Whirlpool Microwave Fuse
18Cushion (Not Serviceable)
21Screw
224344826 Whirlpool Refrigerator Screw
24Screw
