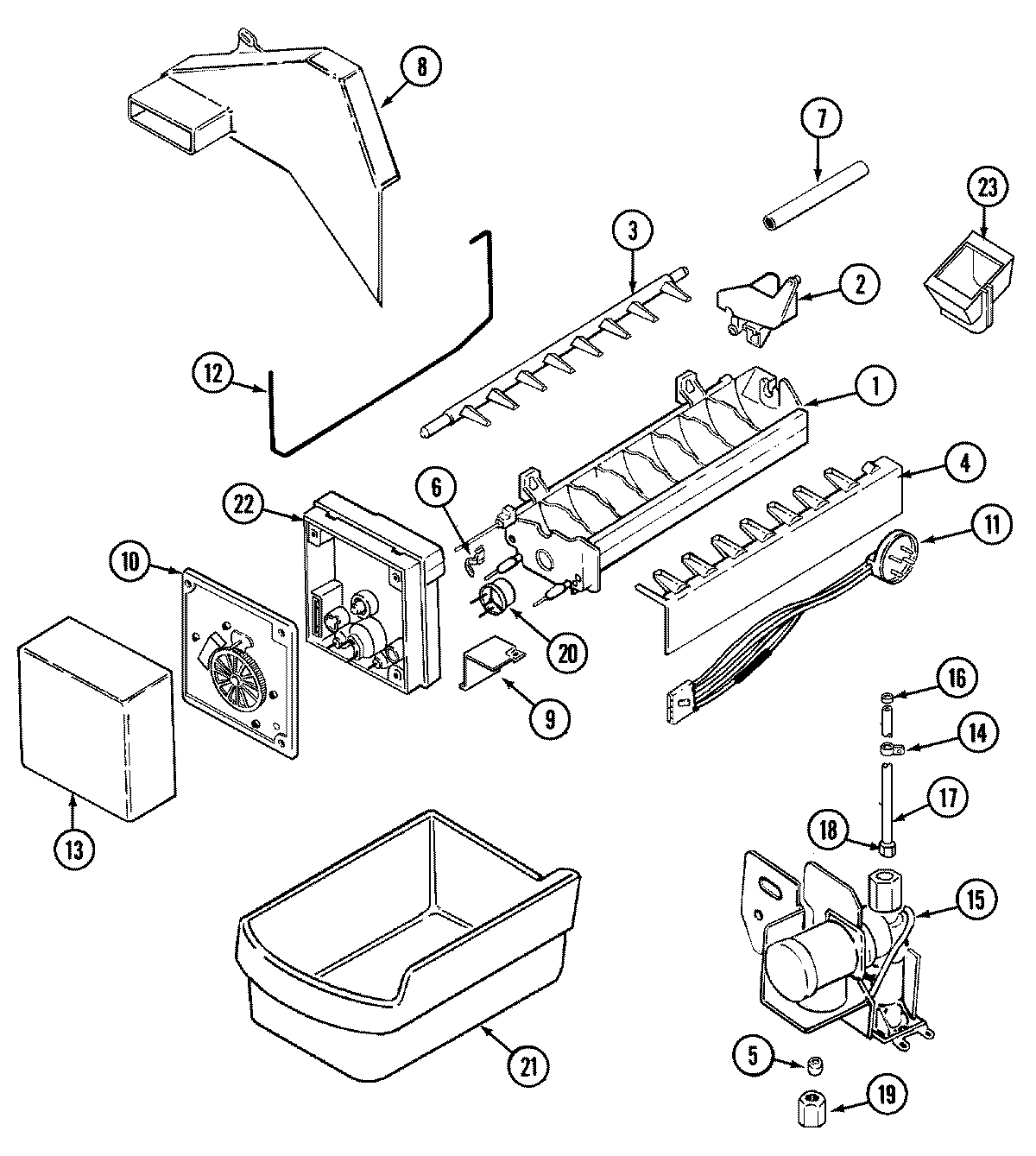

GT15B2F3EV 07 – ICE MAKER

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	MAY Y06100047
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP487627 Whirlpool Refrigerator Sleeve
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67666-8
7	MAY 67877-1
7	MAY 61001169
8	MAY 400026-36
8	MAY 70198-1
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY Y06100048
10	WP67006908 Whirlpool Refrigerator Screw
11	MAY 61001811
12	MAY 68112-1
13	MAY 61001239
14	W10833902 Whirlpool Refrigerator Clamp
14	MAY 65275-50
15	MAY 401018-1
15	MAY 61001020
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-5
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
21	MAY 68327-1
22	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	SCREW
23	MAY 61001305
