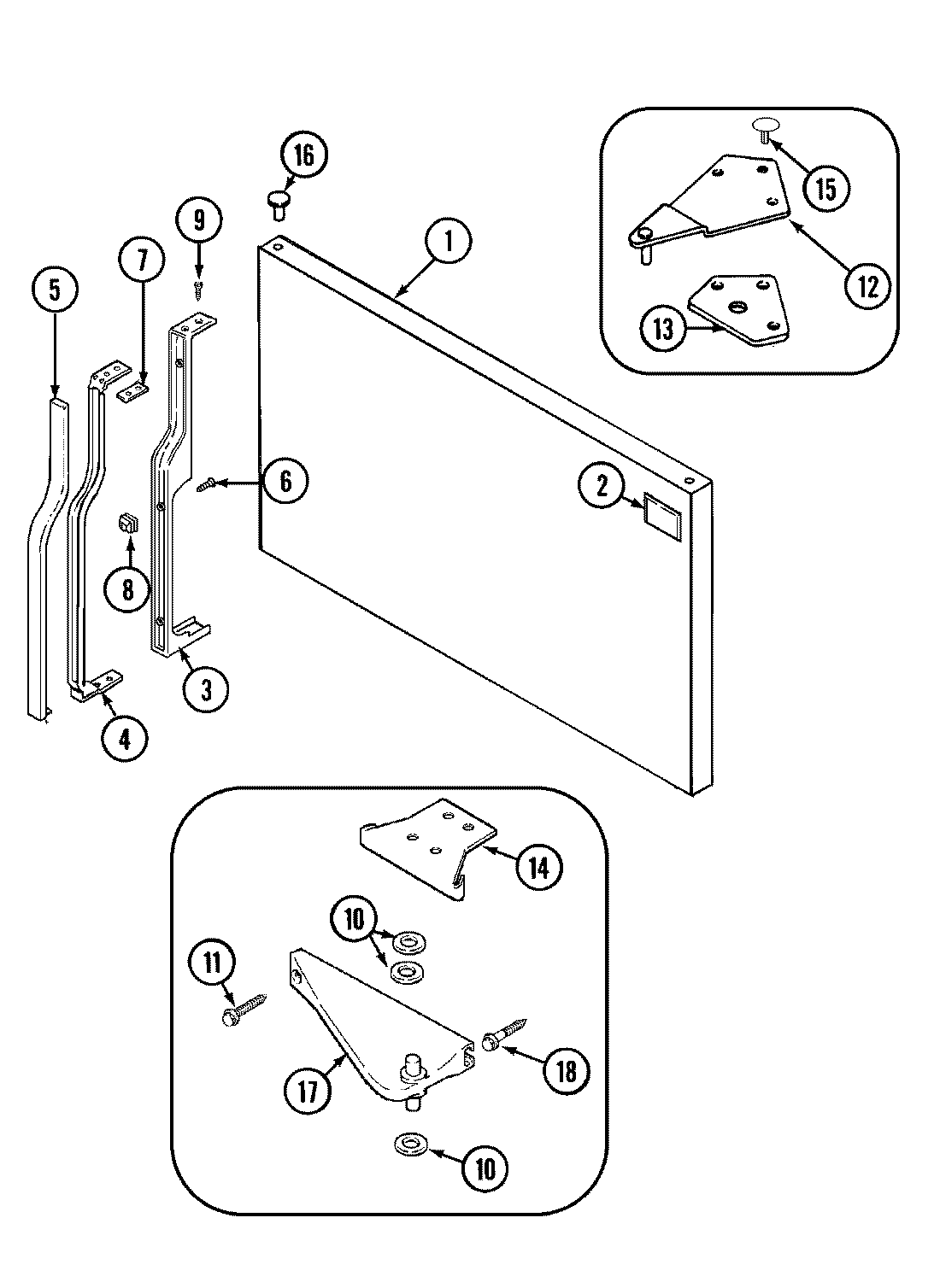

GT1722NDEW 05 – FREEZER OUTER DOOR

GT1722NDEW 05 – FREEZER OUTER DOOR

Written by

in

GT1722NDEW 05 – FREEZER OUTER DOOR

Products

PositionProduct
1MAY 61002201
2BEZEL, NAMEPLATE (WHT)
361005399 Whirlpool Refrigerator White Door Handle
3MAY 61001795
4MAY 61002247
5MAY 61002248
6MAY 415033-1
7MAY 67934-1
8MAY 61002218
9MAY 61001875
10WP61002231 Whirlpool Refrigerator Washer Hinge
123400112 Whirlpool Refrigerator Screw
12MAY 61004570
13MAY 61001922
14MAY 61004481
14W10856122 Whirlpool Refrigerator Screw
15MAY 61001923
16MAY 61001908
17MAY 61001920
18MAY 61002025
