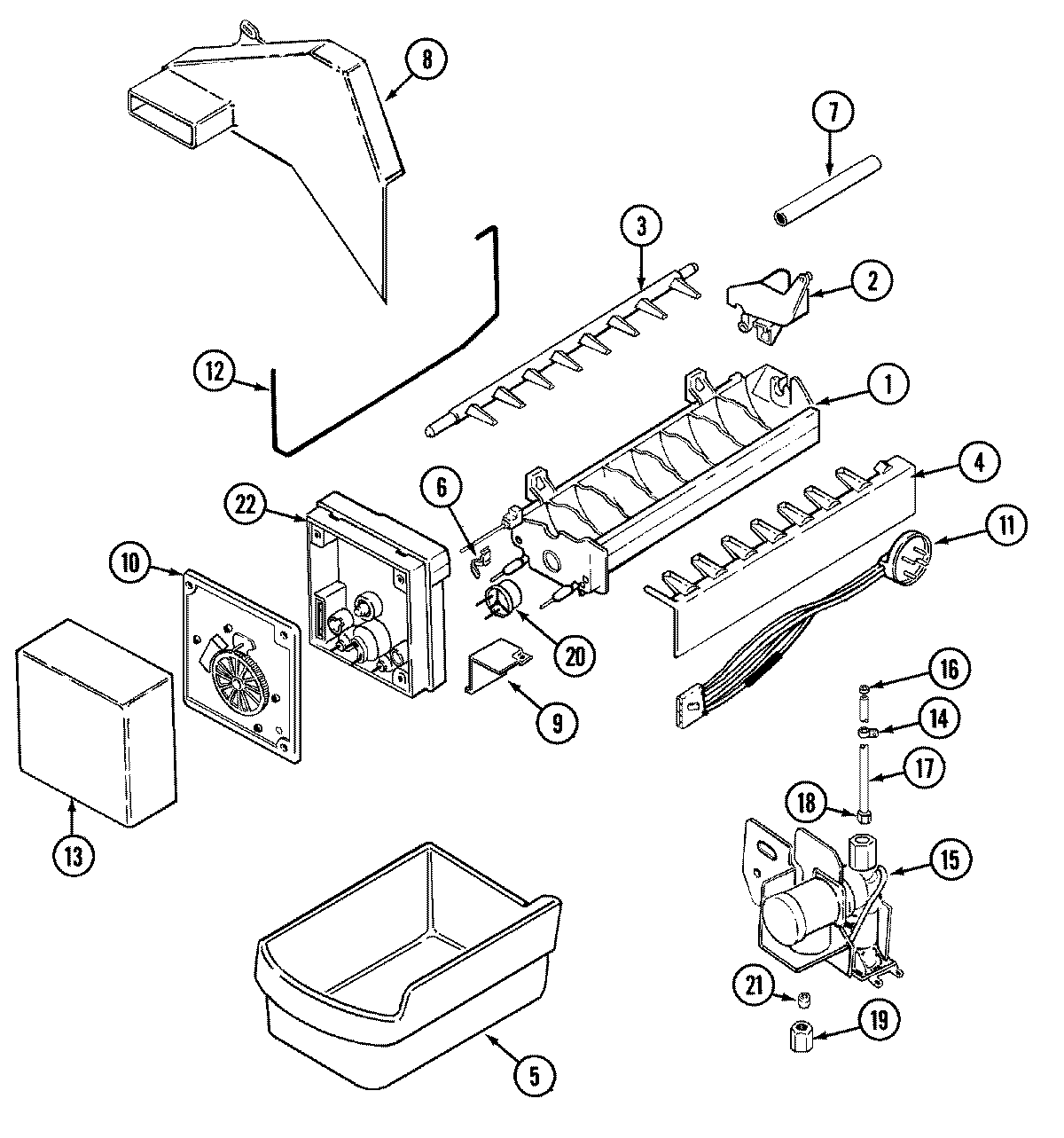

GT17X8FA 05 – OPTIONAL ICE MAKER KIT

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 68327-1
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 67666-5
8	MAY 68412-1
8	MAY 68412-2
8	MAY 68412-3
9	BRACKET, MODULE & HEATER
10	MAY 400021-1
10	MAY 95109-1
10	MAY 95110-1
11	MAY 67910-1
12	MAY 67556-1
12	MAY 68112-1
13	MAY 68328-2
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
15	MAY 69364-1
15	MAY 401017-1
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-7
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	WP627985 Whirlpool Icemaker Cycling Thermostat
20	MAY 95093-1
21	WP487627 Whirlpool Refrigerator Sleeve
22	MAY 68118-1
