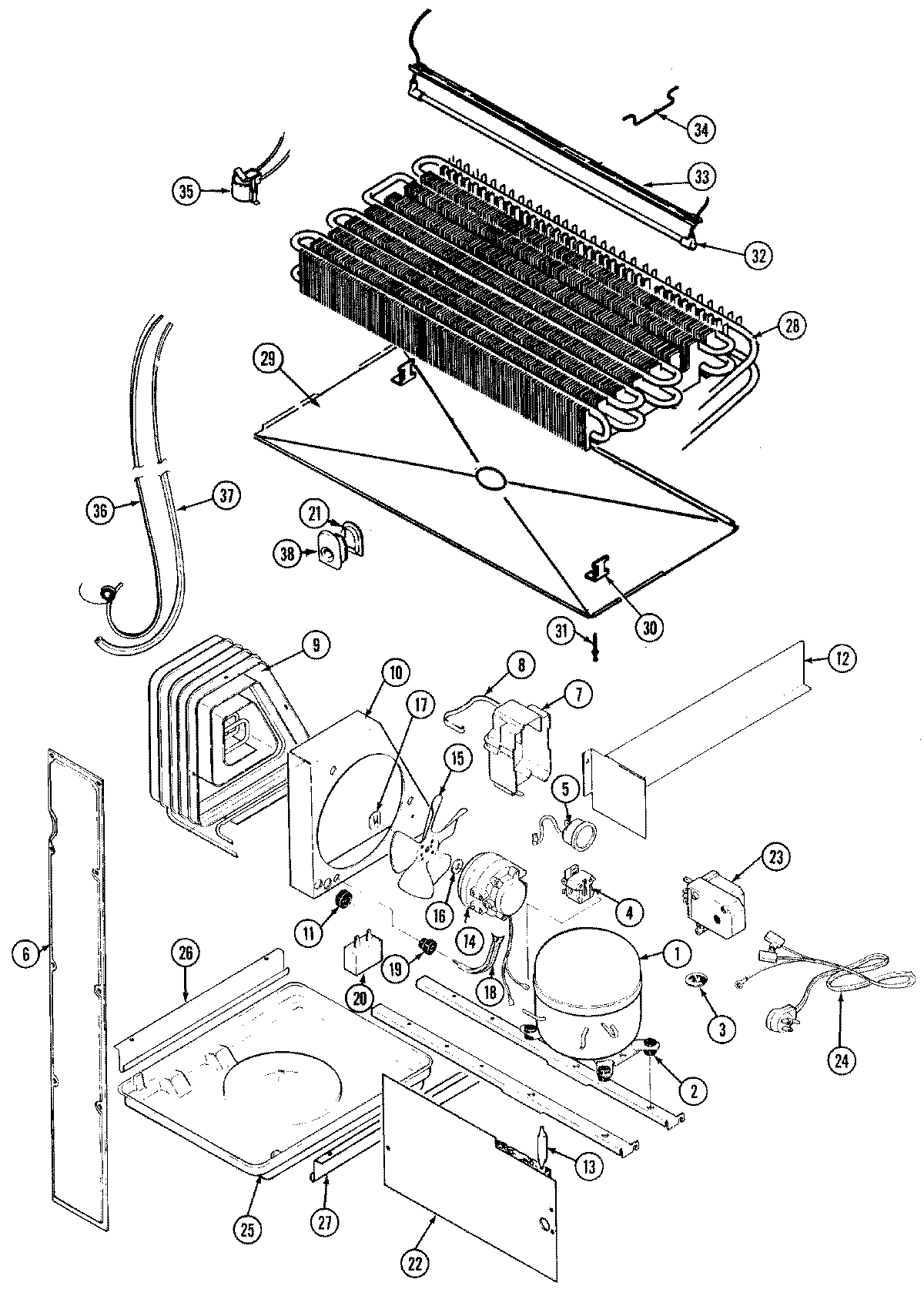

GT17Y7V 05 – UNIT COMPARTMENT & SYSTEM
Written by
in
GT17Y7V 05 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY RA1011-1
1
MAY RA1032-1
2
MAY 17245-4
3
MAY 414011-1
3
MAY 62165-1
4
WP10097202 Whirlpool Refrigerator Start Device
4
2154436 Whirlpool Refrigerator Start Relay
5
4388953 Whirlpool Overload Relay
5
MAY 69105-10
6
MAY 52890-2
7
MAY 61002020
7
MAY 66589-2
7
MAY 69754-1
8
MAY 61002620
8
MAY 59596-1
8
MAY 65886-1
9
MAY 60408-2
9
MAY 60434-3
10
MAY 69063-1
11
MAY 66228-1
12
MAY 53351-1
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 68445-3
14
MAY 65275-33
14
MAY 61001562
15
WP12587601 Whirlpool Refrigerator Condenser Blade
16
MAY 69118-1
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 69181-1
19
MAY 56933-1
20
WP2262343 Whirlpool Refrigerator/Freezer Capacitor
20
WP65889-4 Whirlpool Refrigerator Capacitor
21
WP488729 Whirlpool Refrigerator Door Screw
21
MAY 66338-3
22
MAY 68233-1
22
MAY 405007-1
23
MAY 66493-1
24
MAY 69822-1
25
MAY 60108-2
26
MAY 26397-9
27
WP60106-34 Whirlpool Refrigerator Heater
28
MAY 60109-4
29
MAY 68825-1
30
WP52085-28 Whirlpool Thermostat
31
MAY 65398-1
31
MAY 66223-1
31
MAY 65013-26
32
MAY 108340-3
32
MAY 60068-1
33
MAY 60177-4
33
MAY 60069-1
33
MAY 61001566
33
MAY 70164-1
34
MAY 60110-2
36
MAY 60555-2
36
MAY 60555-1
36
WP489478 Whirlpool Refrigerator Screw
←
