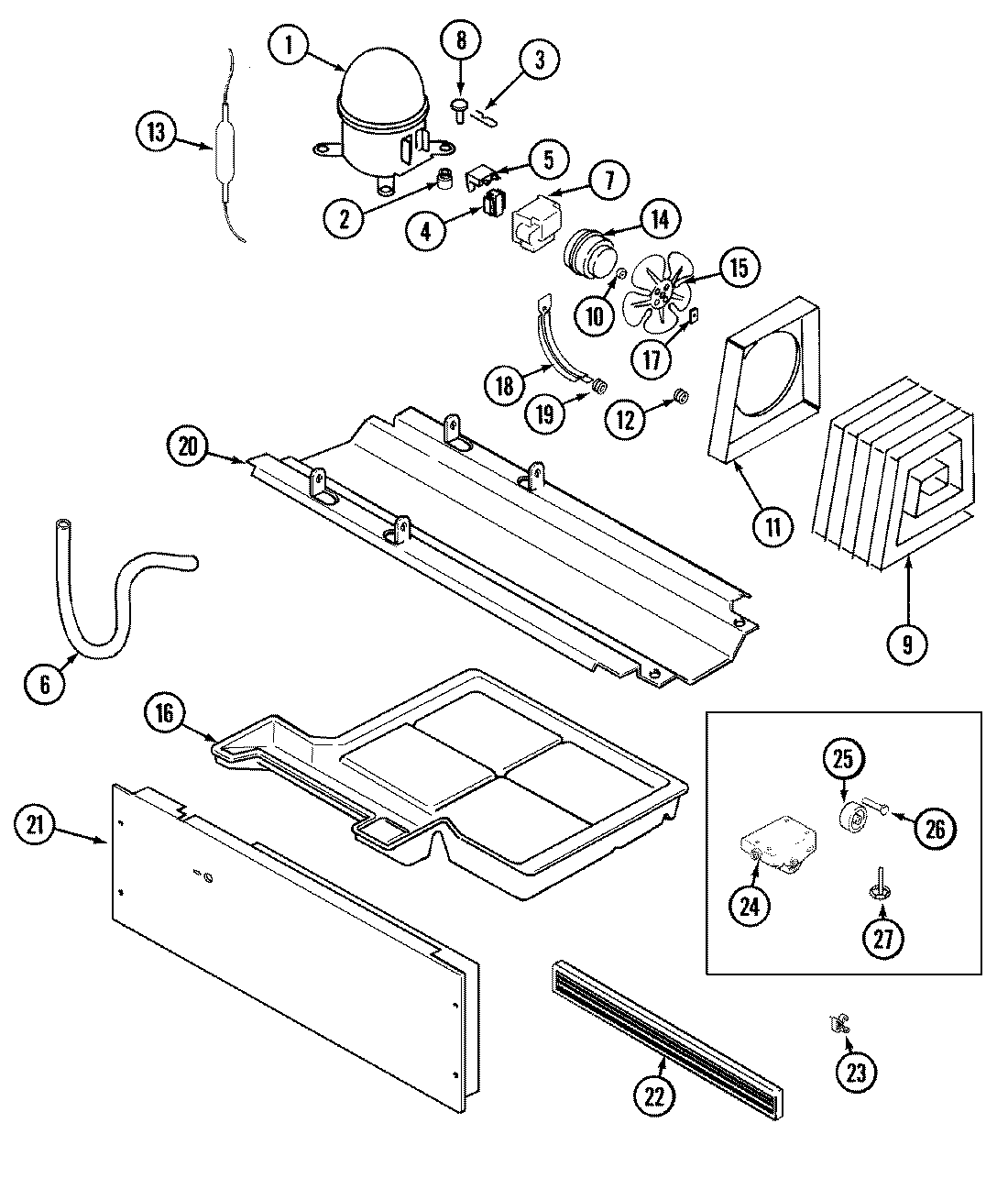

GT1916PXCQ 01 – COMPRESSOR (BISQUE)

Products

Position	Product
1	MAY 12001374
1	SEE NOTE GROUND WIRE, GREEN
1	MAY 61002012
2	MAY 17245-4
3	MAY 61003099
4	MAY 61005250
4	WP10097204 Whirlpool Start Relay
5	MAY 61002037
5	WP2183456 Whirlpool Refrigerator Overload
6	MAY 61002214
7	MAY 66589-1
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61002811
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61001016
15	MAY 60683-1
16	MAY 61001955
16	WP489478 Whirlpool Refrigerator Screw
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	WP67006715 Whirlpool Refrigerator Screw
20	MAY 61002327
21	MAY 65275-5
21	MAY 65275-1
21	MAY 61004654
22	MAY 61005011
23	MAY 61001975
24	MAY 61005232
24	SCREW
24	MAY 61002066
25	WP61003826 Whirlpool Wheel
26	WP61002104 Whirlpool Refrigerator Pin Wheel
27	MAY 69810-1
27	MAY 61002105
28	MAY 61004541
28	MAY 61003420
29	MAY 16008248
29	MAY 16008421
