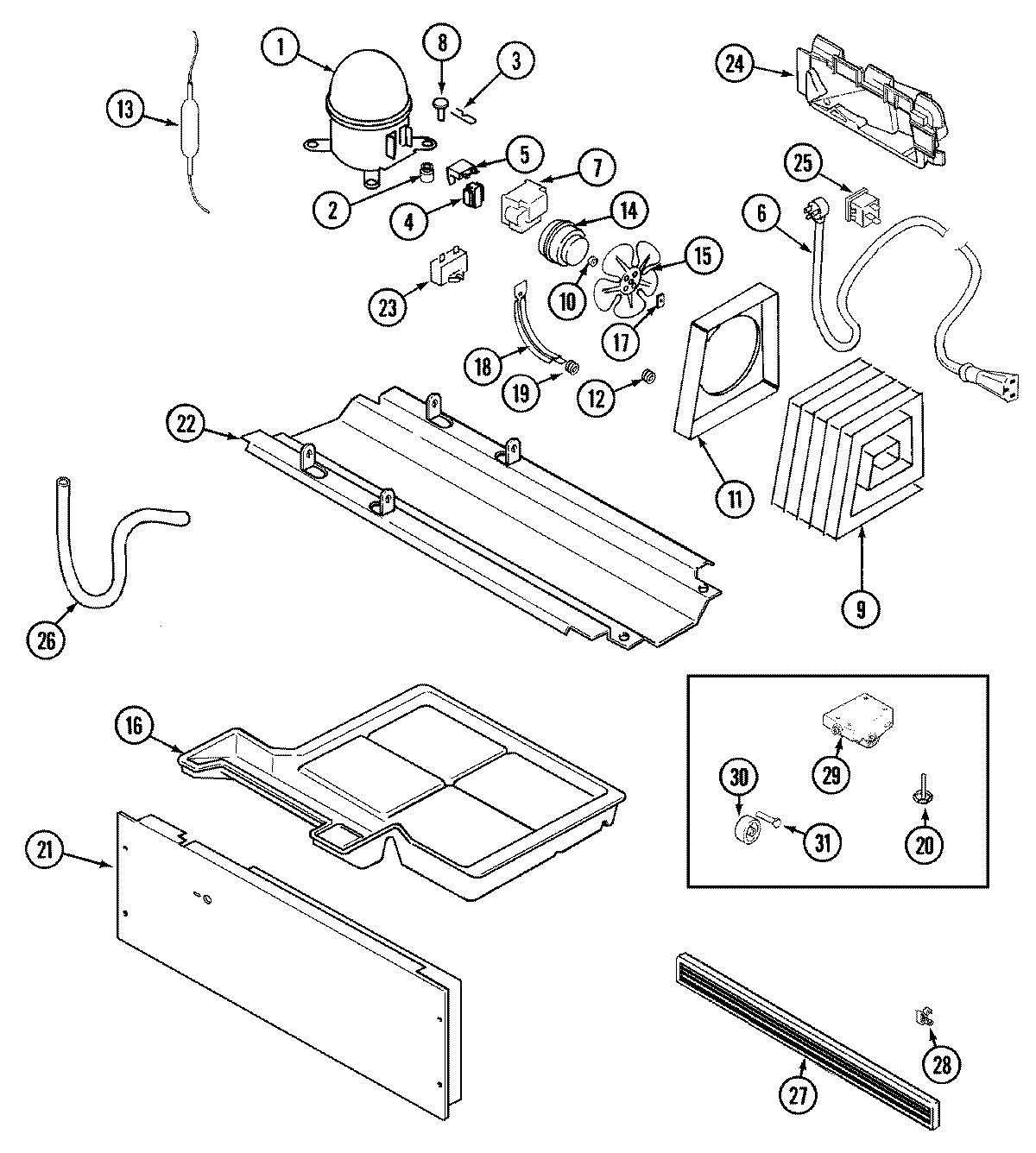

GT1928PEFW 01 – COMPRESSOR (REV 11)

Products

Position	Product
1	W10309997 Whirlpool Refrigerator Compressor
1	MAY 61004900
2	MAY 17245-4
3	MAY 61003099
4	MAY 61001832
5	MAY 61004883
6	MAY 61004874
7	WP61002138 Whirlpool Refrigerator Terminal Cover
8	MAY 52656-2
9	MAY 61002811
9	MAY 61004378
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	MAY 61002084
15	MAY 60683-1
16	MAY 61001955
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 61001414
19	GROMMET, BRACKET
20	MAY 61002105
20	MAY 69810-1
21	MAY 61005100
21	MAY 65275-5
21	MAY 65275-1
22	MAY 61002327
22	WP67006715 Whirlpool Refrigerator Screw
23	MAY 61004637
23	WP489478 Whirlpool Refrigerator Screw
24	MAY 61004875
24	MAY 61004485
25	MAY 61004876
26	MAY 61002214
27	MAY 61002427
28	MAY 61001975
29	MAY 61002066
29	SCREW
30	WP61003826 Whirlpool Wheel
31	WP61002104 Whirlpool Refrigerator Pin Wheel
32	MAY 12001493
33	MAY 61003623
34	MAY 16008248
34	MAY 16008421
